OPERATION 6
6.4 TO FIT THE CUTTING UNITS TO THE MACHINE _____________________________

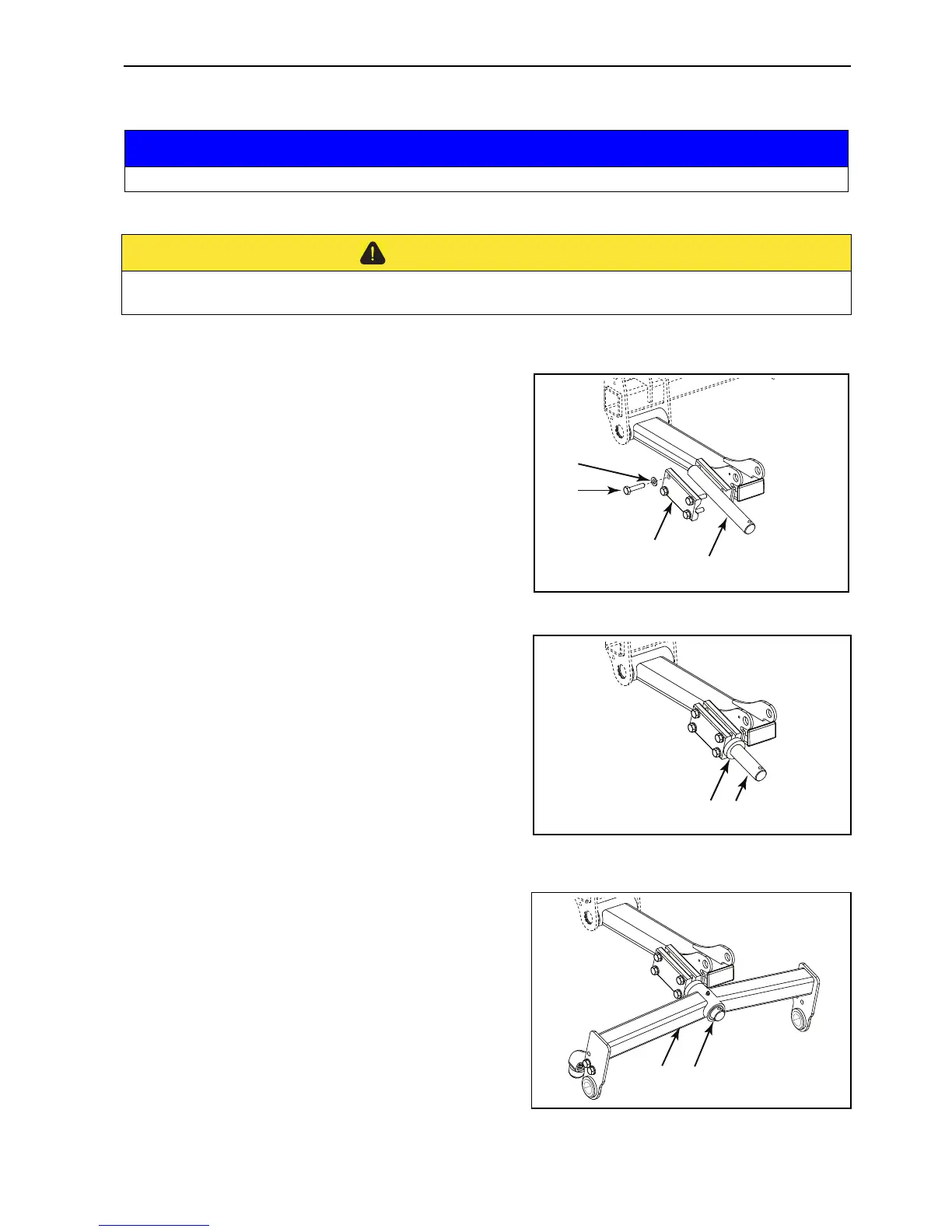

Cutting Unit Mounting
1. Position the pivot shaft (A) so that the end of the
shaft is flush to the rear of the welded clamp bracket.
Secure the pivot shaft by locating the clamp (D) over
the pivot shaft (Ensure that the gap between the
clamp and lift arm is the same at the top and bottom)
and secure in place with four bolts and washers (B
and C) and tighten to 45 Nm (33.2 ft lb).
2. Apply a small amount of Shell Darina R2 grease to
the front and rear surfaces of spacer (E) then slide
onto pivot shaft (A).
3. Slide the centre yoke (F) onto the pivot shaft (A).
NOTICE
For height of cut adjustments see section 7.2 and 7.3
CAUTION
Blades are extremely sharp and can cause severe cuts.
For your protection, hold blade with thick leather work glove only.
