8.7 USING DUAL EXTENSION BARS

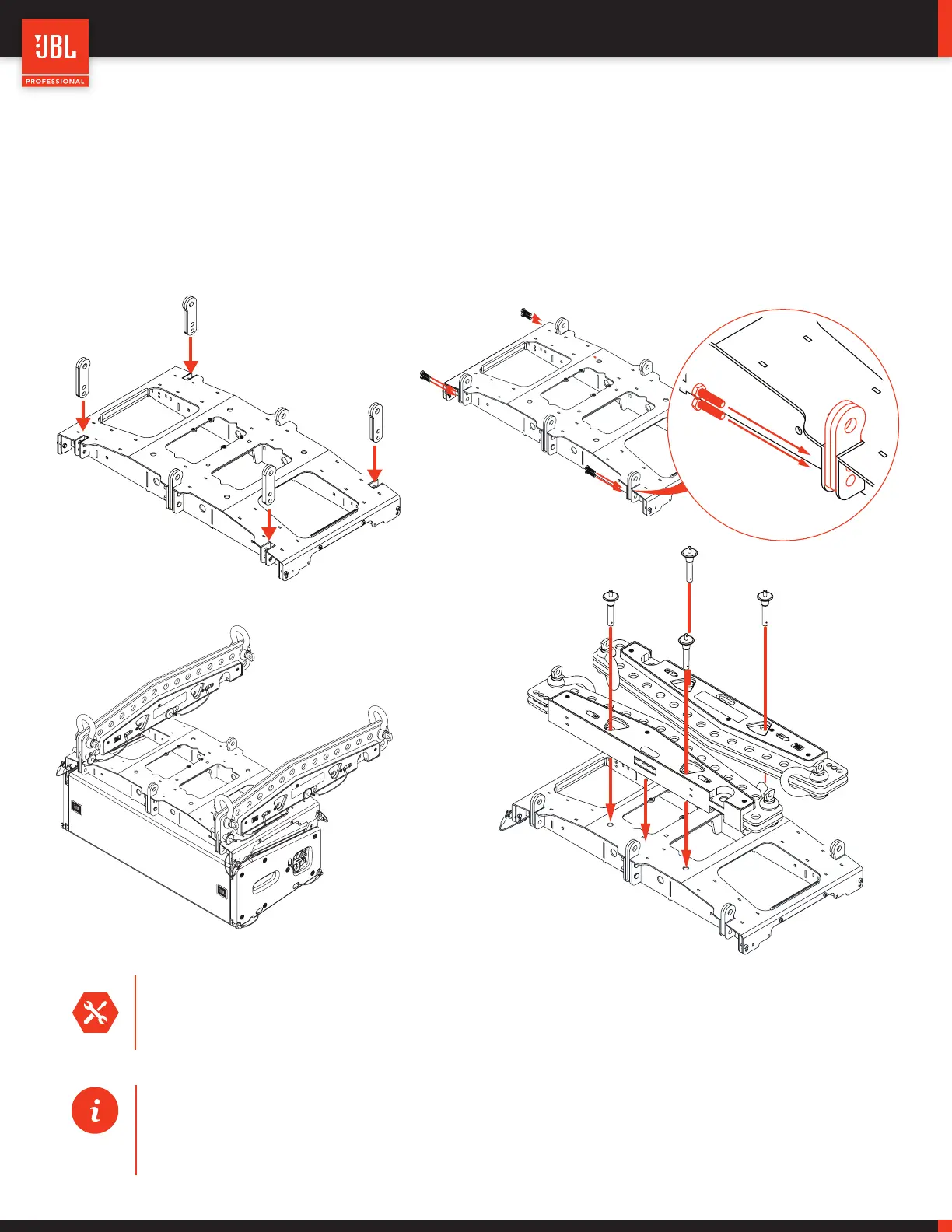

The VTX A8 AF Array Frame can be used with either one or two Extension Bars. The Array Frame ships from the factory with one Ex-
tension Bar; an additional Extension Bar can be purchased for use in scenarios where side-by-side suspension points are needed. The
standalone version of the Extension Bar (Part# VTX A8 AF EB) includes one Extension Bar, two additional quick release pins, and all
hardware (tabs, bolts, and nuts) required for mounting to the VTX A8 Array Frame. The additional attachment tabs must be installed to
the outer Extension Bar locations using the manufacturer-supplied bolts and locking nuts.
TOOLS REQUIRED: Attachment of the extension bar connection tabs is a one-time operation. To properly install the
tabs, a 1/2-inch wrench should be used for the nut and a 7/16 inch wrench for the bolts. All necessary hardware is in-
cluded with the VTX A8 AF EB.
TIPS:
• If the additional Extension Bar is not needed, the side tabs and hardware can be purchased without the Extension
Bar. The bellow part numbers can be used to order the parts.
• (8) Side Tabs # 5085088 | (8) Pins #5034413 | (8) 5/16 in Nylock Nut #835-36010-00
