13.2 MINI FRAME STORAGE CONFIGURATION
The Mini Frame can be disassembled and pinned together in a small and compact package for storage and transportation. Follow the
instructions below to set the Mini Frame in storage mode.
STEPS:

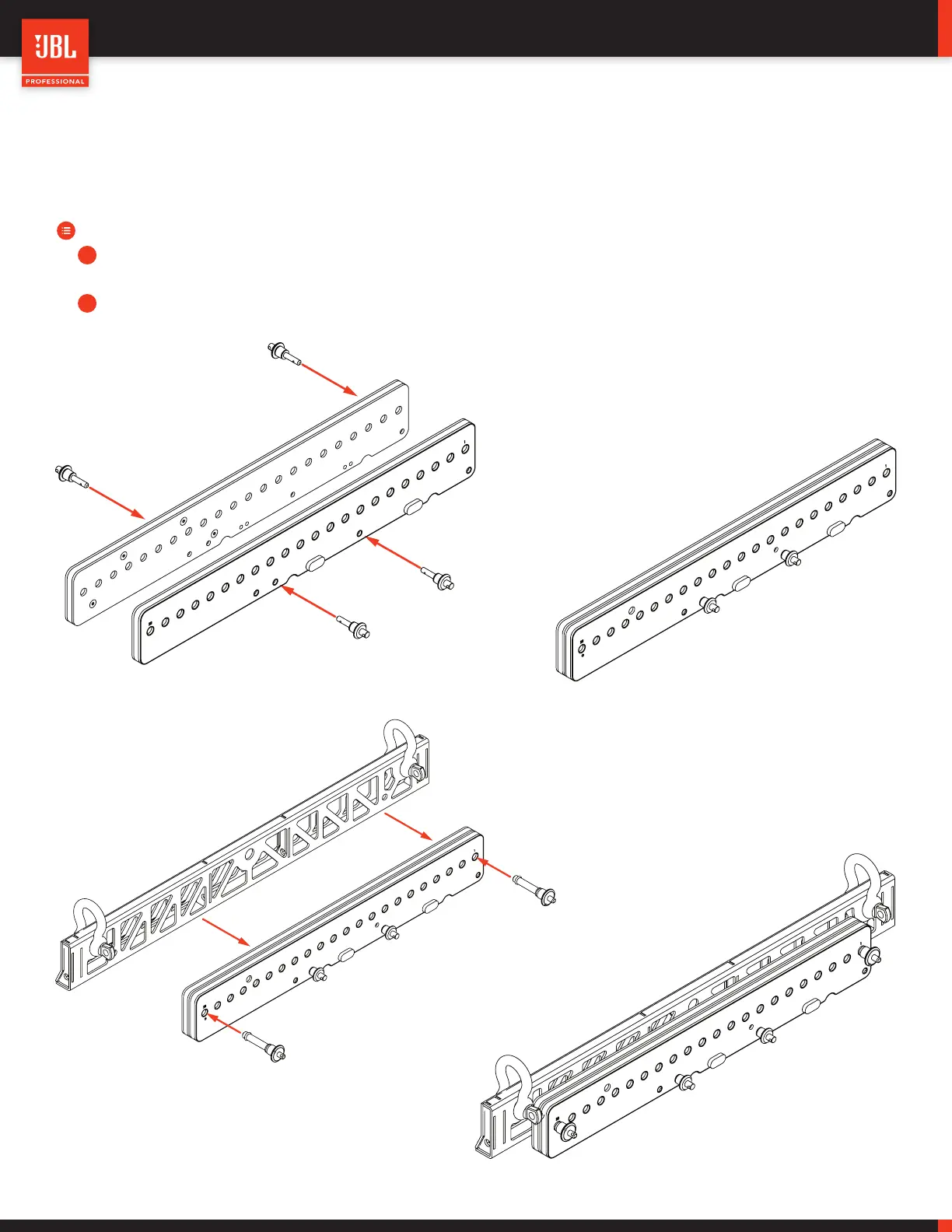

• First, pin the two side arms together using the four quick release pins connected to the side arms. It is not important which
storage holes are used for the pins, as this is just for storage.
• With the two side arms pinned together, use hole positions 1 and 22 to pin the spreader bar onto the side arms.
1
2
SMALLER 1/4” PINS
SMALLER 3/8” PINS
