VTX A8 | Rigging Manual

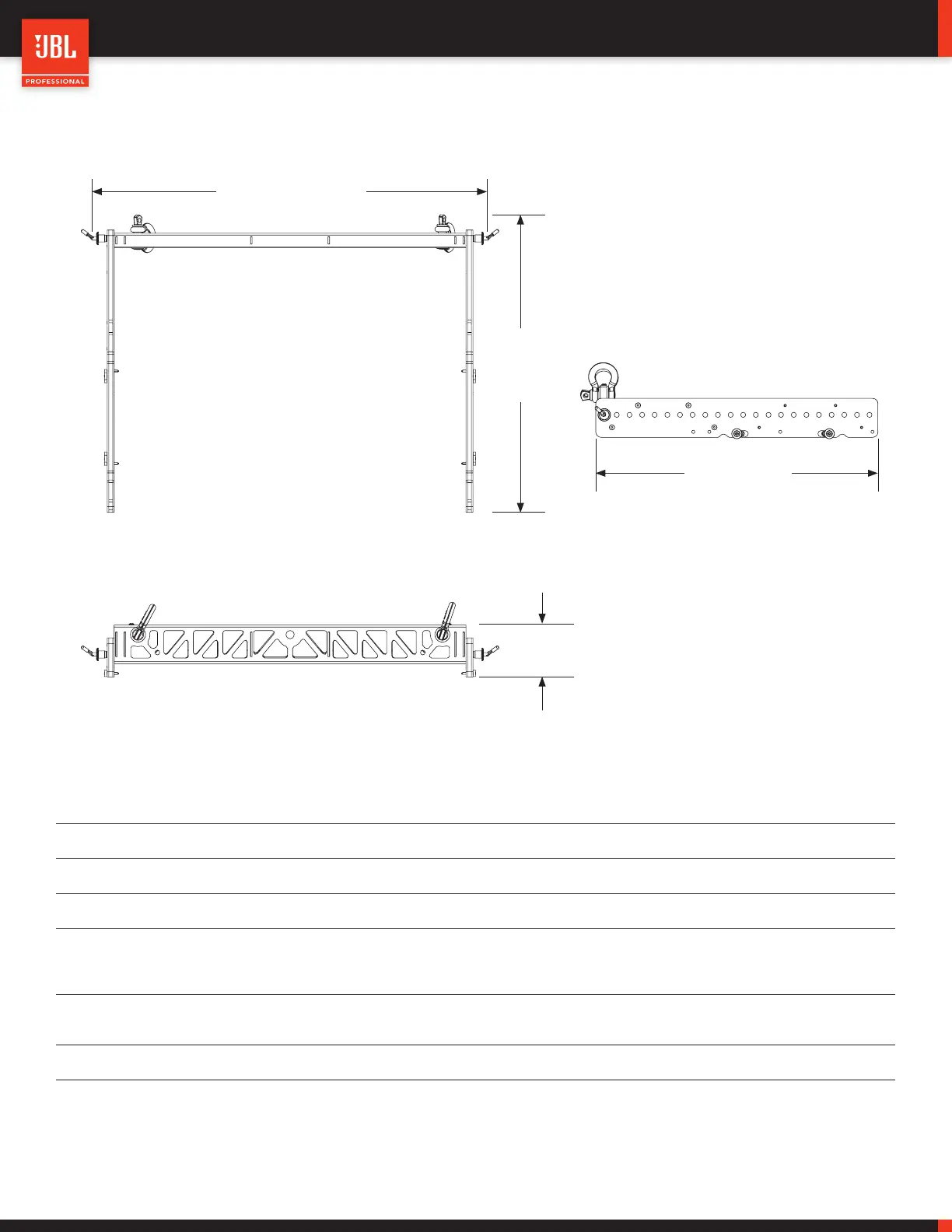

15.5 - VTX A8 MF

794 mm (31.2 in)

595 mm

(23.4 in)

359 mm (14.1 in)

105 mm

(4.1 in)

Footnotes:

1: For arrays larger than the safe limit always use the JBL Line Array Calculator to determine mechanical safety

2: Refer to the 2D and 3D Customer Drawings for more detailed dimensions

3: Weight includes sidearms and spreader. Shackles and other rigging parts not included

JBL continually engages in research related to product improvement. Some materials, production methods and design reﬁnements are introduced into existing products without notice as a routine expression

of that philosophy. For this reason, any current JBL product may differ in some respect from its published description, but will always equal or exceed the original design speciﬁcations unless otherwise stated.

Construction:

High-grade steel with anti-corrosion coating

Finish:

Black powder coat

Compatible Shackle Size:

1/2 inch

Mechanical Limits

Maximum:

Safe Limit:

(10) VTX A8 | (4) VTX B18

Dimensions (H x W x D)

105 mm x 794 mm x 595 mm
