JBL VTX Series Rigging Manual

42
VTX A8 | Rigging Manual
STEPS:

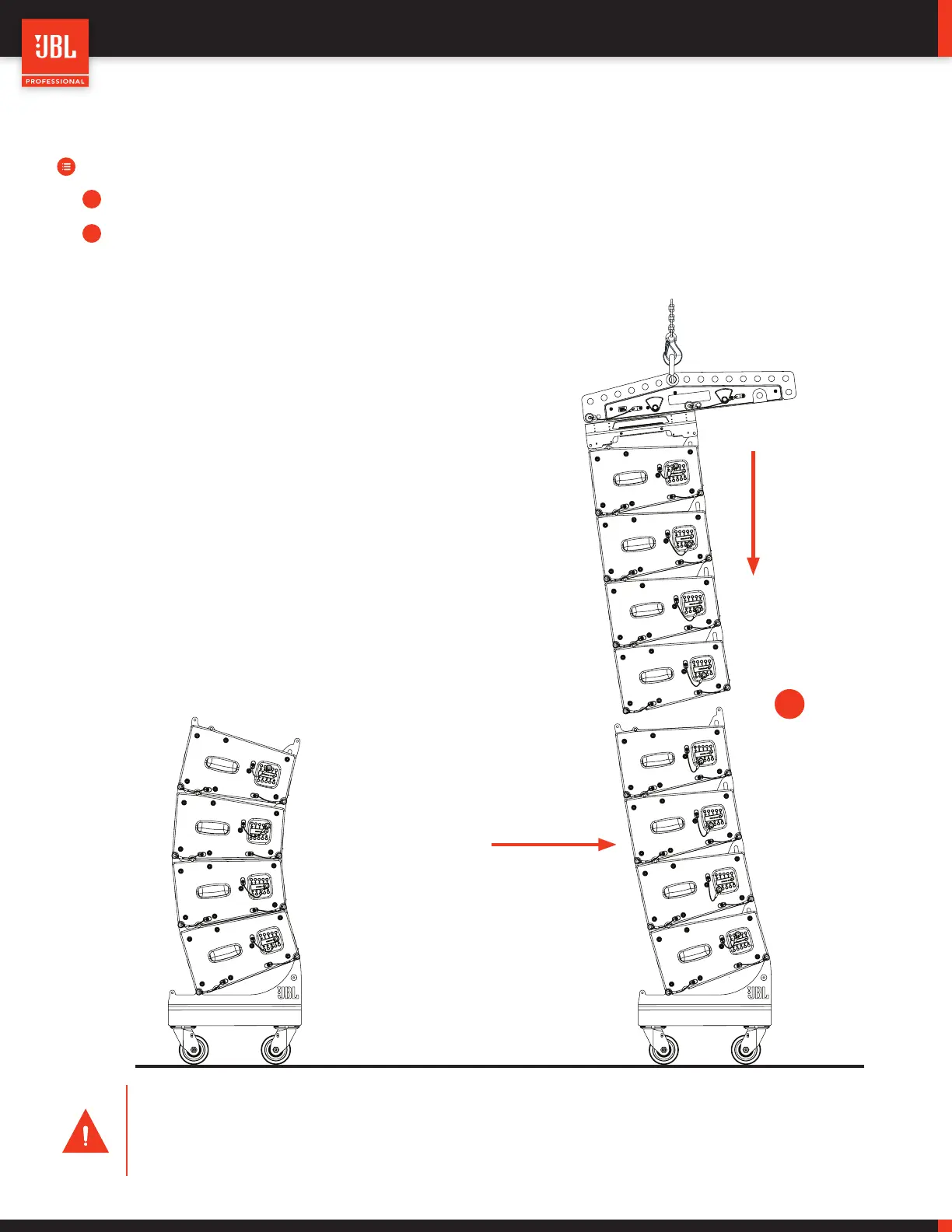

• Raise the suspended cluster of VTX A8 cabinets and align the next cart of cabinets below the suspended cluster.
• Once the clusters are aligned, carefully lower the suspended cluster until the front attachment points are nearly touching.
Check that the attachment points are aligned, then lower the suspended cluster until the front attachment points join together.
Insert the two front quick release pins.
9.4 ATTACH THE NEXT STACK
CAUTION:
• Always confirm that each cabinet is pinned to the same angle on both sides of the enclosure.
• The top cabinet in each array should be pinned in accordance with the Array Frame and Extension Bar posi-
tioning instructions in section 8.3.
1
2
2
