8.8 INSTALLING THE LASER BRACKET

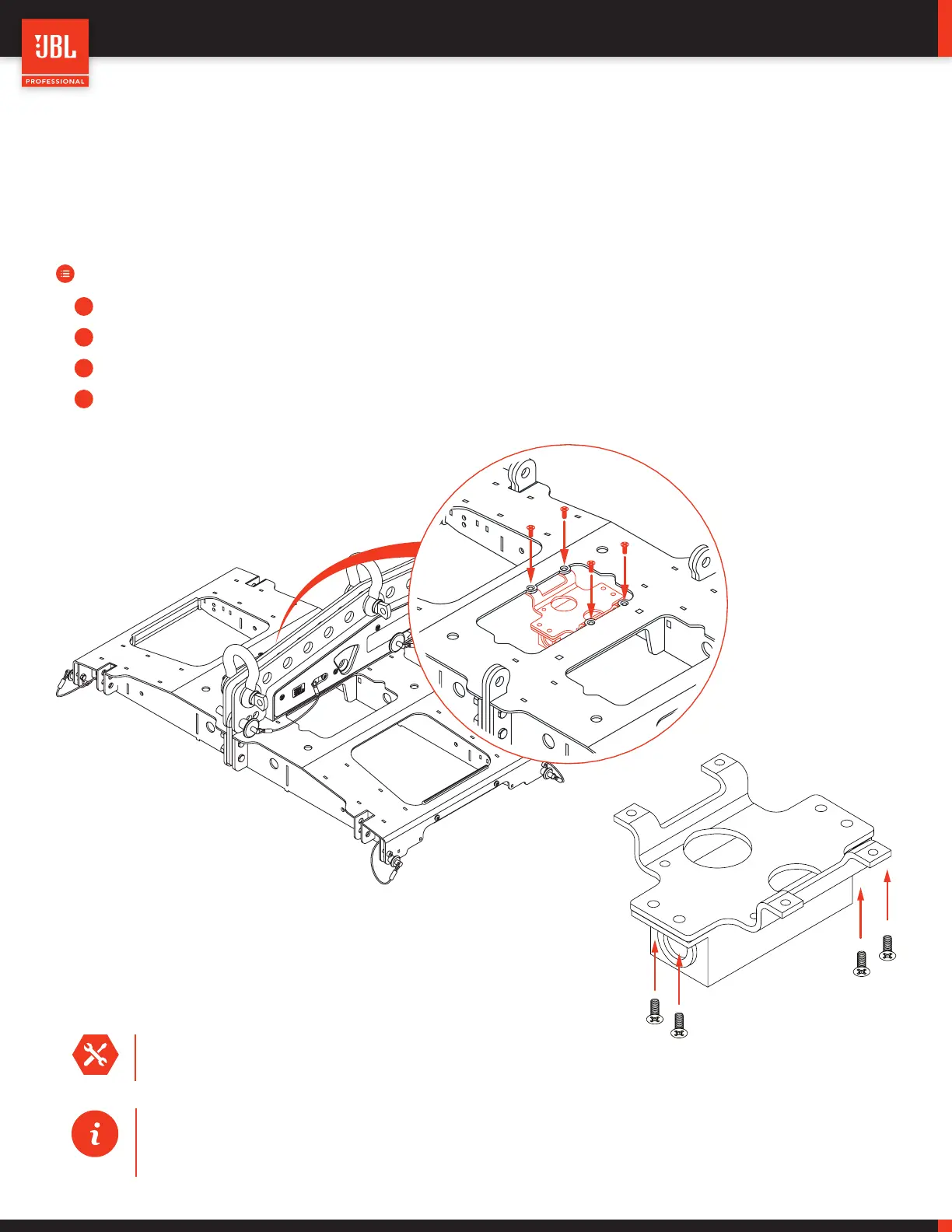

The VTX A8 AF Array Frame includes a mounting bracket that enables installing a laser/inclinometer in the Array Frame. Front and back
laser exit holes in the Array Frame allow the light to shine through. The included laser bracket was designed to work with the JBL VTX
LZ laser unit, and the third-party TEQSAS LAP-TEQ and KSG Sensors RECLINE laser inclinometer units.
TOOLS REQUIRED:
A Phillips #2 screwdriver is needed to attach the laser bracket. All necessary hardware is included with the VTX A8 AF.
STEPS:
• Secure the laser unit to the laser bracket with the included screws.
• Make sure the laser unit is centered in the bracket before tightening the four screws that hold it.
• Once the laser unit has been installed, secure the laser bracket to the Array Frame with the remaining included M4 fasteners.
• The Array Frame’s orientation determines whether the bracket should be installed facing the frame’s front or its rear.
TIPS:
• Additional laser brackets can be purchased separately. (Part Number: 5095504-00)
• Make sure to orient the laser bracket appropriately before installation.
