VTX A8 | Rigging Manual
15.7 - VTX RC500
137 mm (5.4 in)
254 mm
(10.0 in)
128 mm (5.0 in)
Footnotes:
1: WLL refers to the RC500 only. Always make sure the structure the RC500 is attached to can support the weight of the array

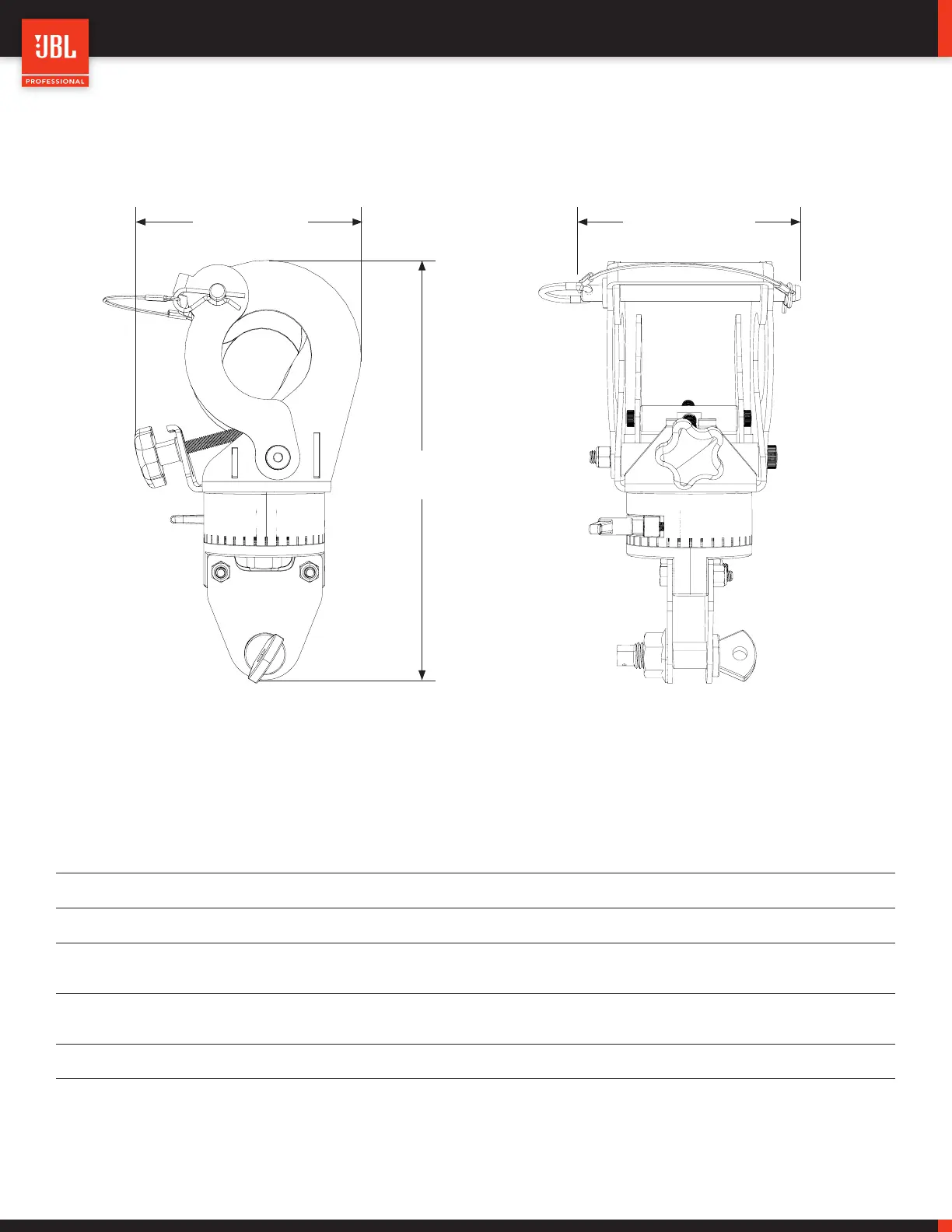

2: Refer to the 2D and 3D Customer Drawings for more detailed dimensions
3: Weight includes VTX RC500 only
JBL continually engages in research related to product improvement. Some materials, production methods and design refinements are introduced into existing products without notice as a routine expression
of that philosophy. For this reason, any current JBL product may differ in some respect from its published description, but will always equal or exceed the original design specifications unless otherwise stated.
Construction:
High-grade steel with anti-corrosion coating
Finish:
Black powder coat
Mechanical Limits
1
Working Load Limit:
500 kg (1,100 lbs)
Dimensions (H x W x D)
2
:
254 mm x 128 mm x 137 mm
(10.0 in x 5.0 in x 5.4 in)
Net Weight
3
:
3.3 kg (7.3 lbs)
