JBL VTX Series Rigging Manual

44
VTX A8 | Rigging Manual
STEPS:
• With the front QRPs set, use the electric hoist to raise the array. Be aware that the second cluster may swing forward slightly
as it lifts off the ground.
• Once the array is off the ground, grab the lower cluster by the handlebar at the rear of the VT (on the bottom) and gently pull
back towards the rear of the array. While doing this, lower the array so the front wheels of the VT touch the ground. Lower the
array until the rear attachment points engage, then insert the two rear QRPs.
• Once all four QRPs have been secured, lift the array off the ground and remove the VT.

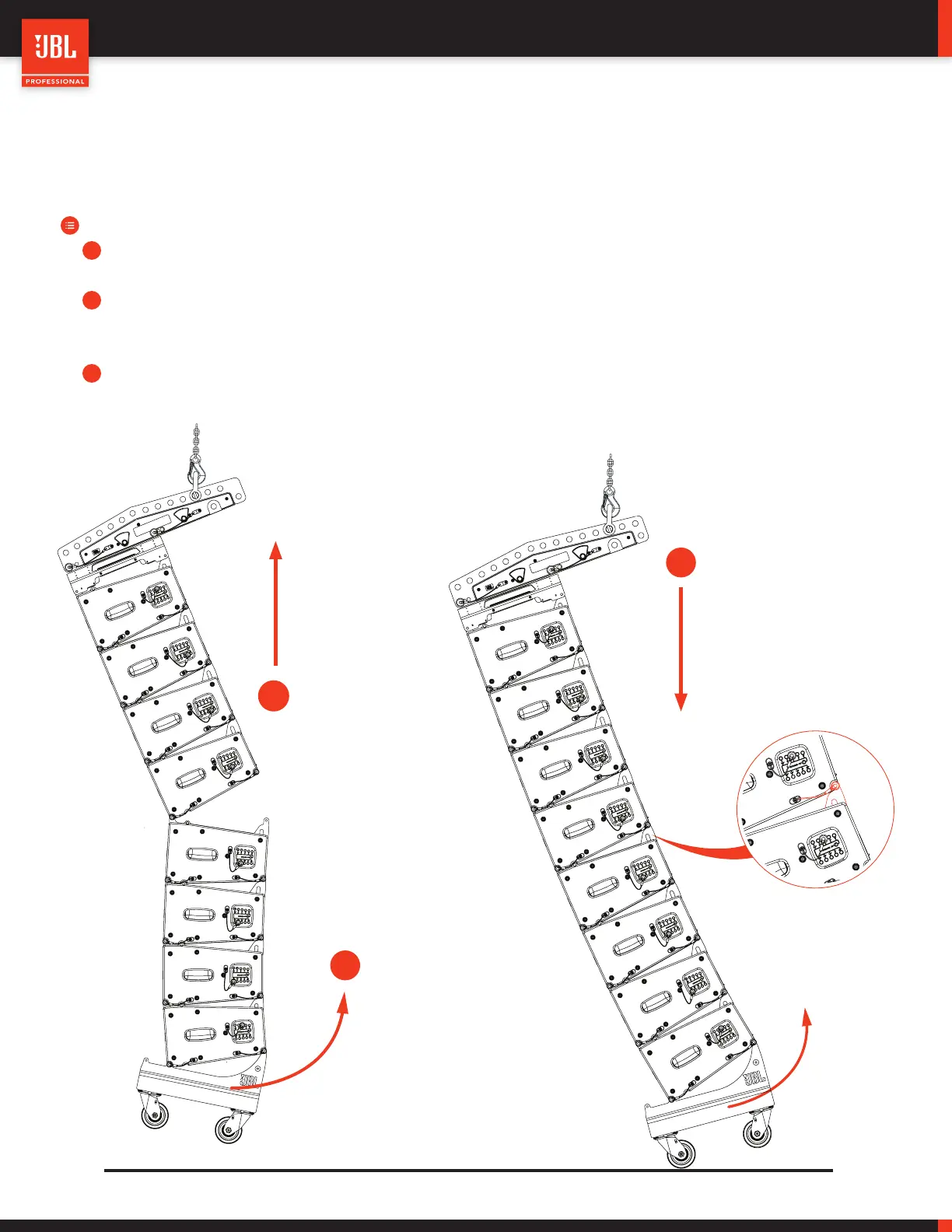

In some cases, the angle of the flown array may be too steep to fully connect to the cluster on the ground. This can happen when as-
sembling large arrays or when the frame pick-point is too far back as shown in the example below. In this situation, a two-step process
is used to engage all four connection points for the array.
1
2
3
1
2
2
