jcb 214 Service Manual

18 - 4
Section F Transmission
9803/3280
Section F
18 - 4
Issue 1
Basic Operation
Powershift Gearbox
Drivepaths - 4 Speed
1R
1st GEAR REVERSE (4 wheel drive)
Clutches Engaged Solenoids Energised
W Reverse Low Ws
Z Layshaft Zs
S 2/4 Wheel Drive Ss
2R
2nd GEAR REVERSE (4 wheel drive)
Clutches Engaged Solenoids Energised
V Reverse High Vs
Z Layshaft Zs
S 2/4 Wheel Drive Ss
3R
3rd GEAR REVERSE (4 wheel drive)
Clutches Engaged Solenoids Energised
W Reverse Low Ws
Y Mainshaft Ys
S 2/4 Wheel Drive Ss
4R
4th GEAR REVERSE (4 wheel drive)
Clutches Engaged Solenoids Energised
V Reverse High Vs
Y Mainshaft Ys
S 2/4 Wheel Drive Ss

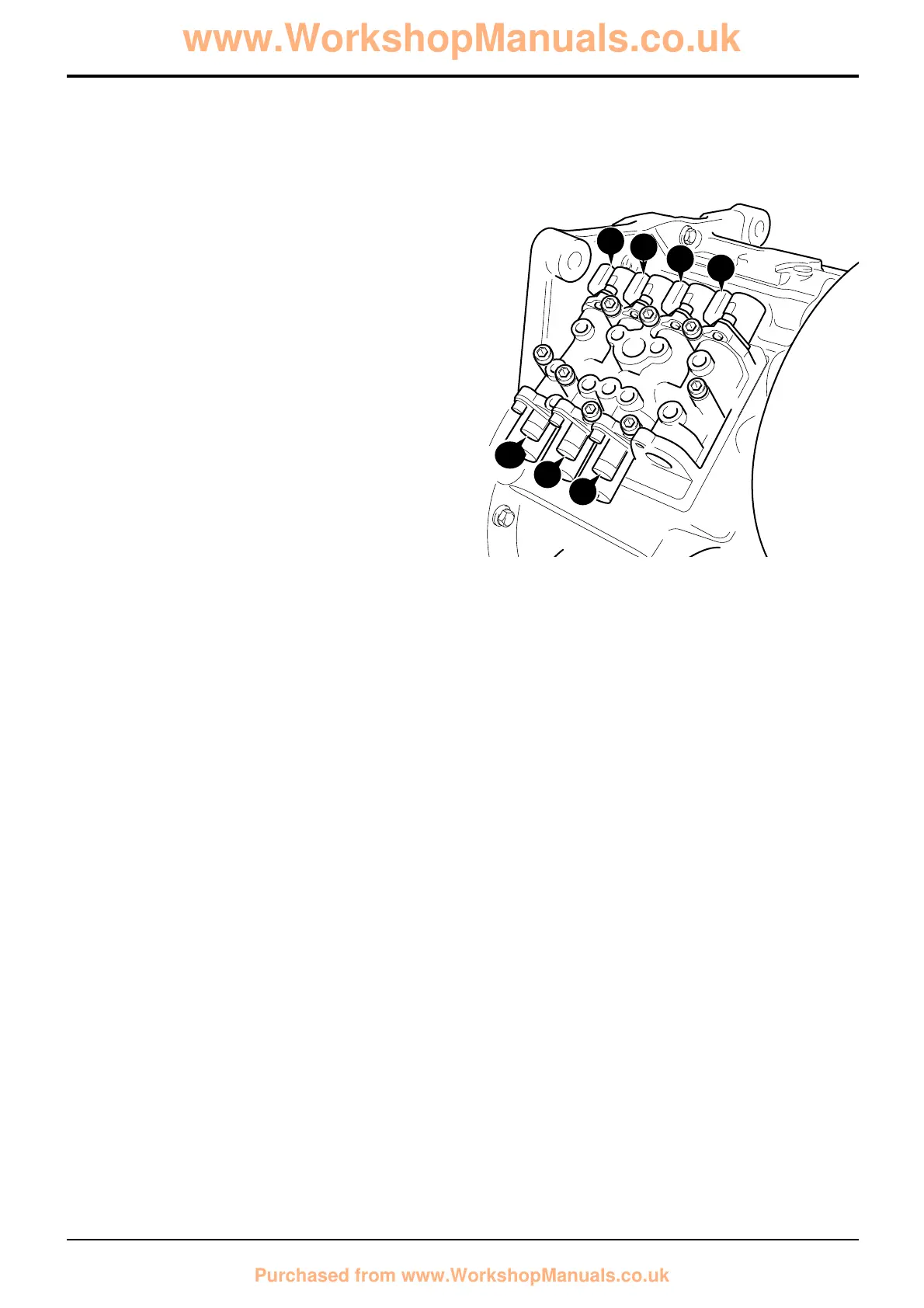

A396740
Ss
Zs
Ys
Ts
Ws
Vs
Us
