jcb 217 User Manual

S216250
892/00334 Ram Seal Fitting Tool
4 - 9
Section 1 General Information
9803/3280
Section 1
4 - 9
Issue 1

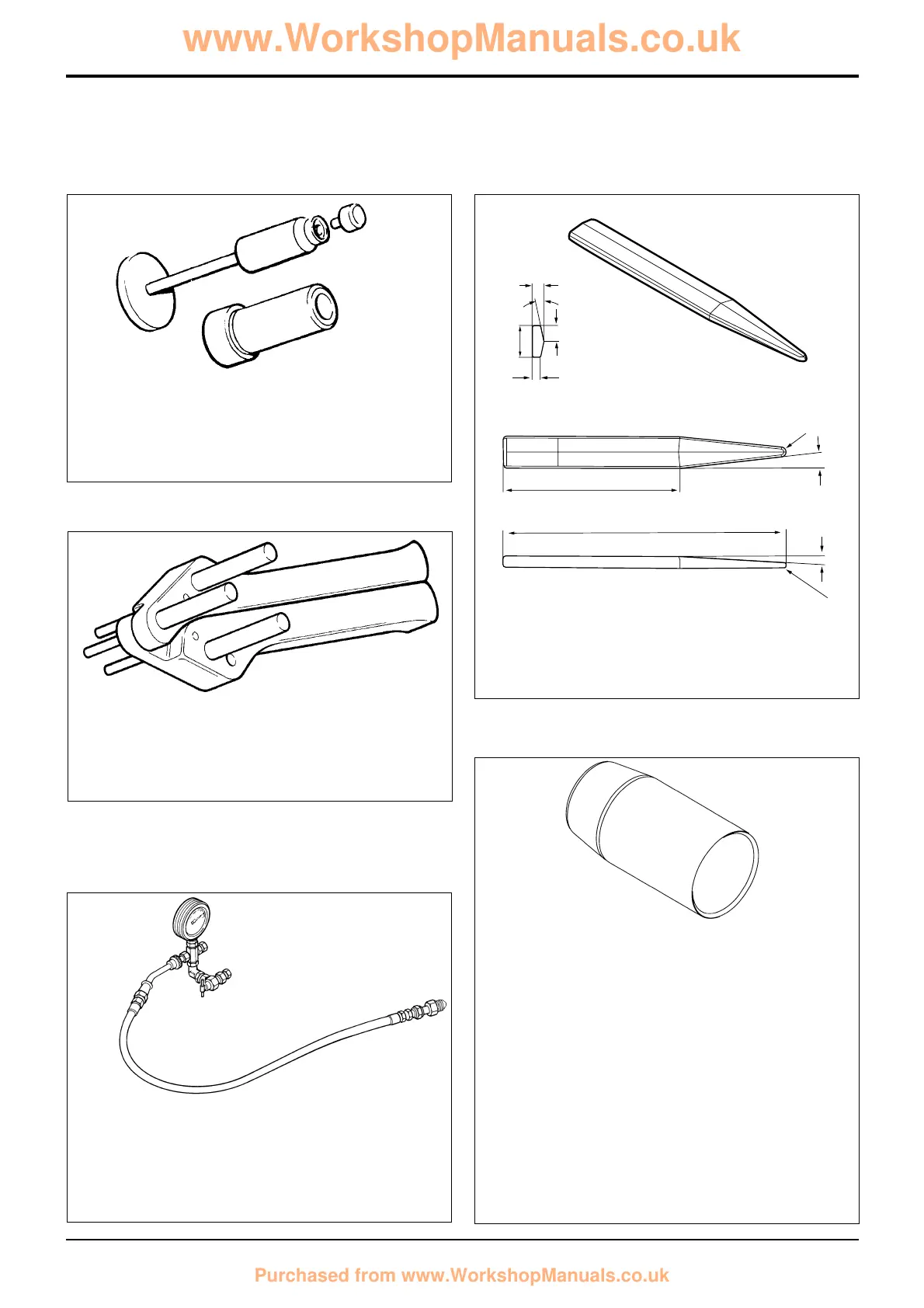

Service Tools (cont'd)
Section E - Hydraulics
Ram Seal Protection Sleeves
892/01016 For 25 mm Rod Diameter
892/01017 For 30 mm Rod Diameter
892/01018 For 40 mm Rod Diameter
892/01019 For 50 mm Rod Diameter
892/01020 For 50 mm Rod Diameter (slew ram)
892/01021 For 60 mm Rod Diameter
892/01022 For 60 mm Rod Diameter (slew ram)
892/01023 For 65 mm Rod Diameter
892/01024 For 70 mm Rod Diameter
892/01025 For 75 mm Rod Diameter
892/01026 For 80 mm Rod Diameter
892/00167 For 90 mm Rod Diameter
S308271
892/00948 Charging Kit (without gauge)
892/00949 Gauge
S338410
S216230
892/00180 Seal Fitting Tool for fitting 'O' ring and
kin ring to Hydraulic Steer Unit
892/00181 Replacement Plastic Boss
892/01027 Piston Seal Assembly Tool
110mm
175mm
R 1.4mm
3
o
R3m
m
7mm
11
o
10mm
20mm
5mm
338500
