74 - 1
Section D Controls
9803/3280
Section D
74 - 1
Issue 1
Control Cables
Removal and Replacement
Auxiliary Footpedal Cable

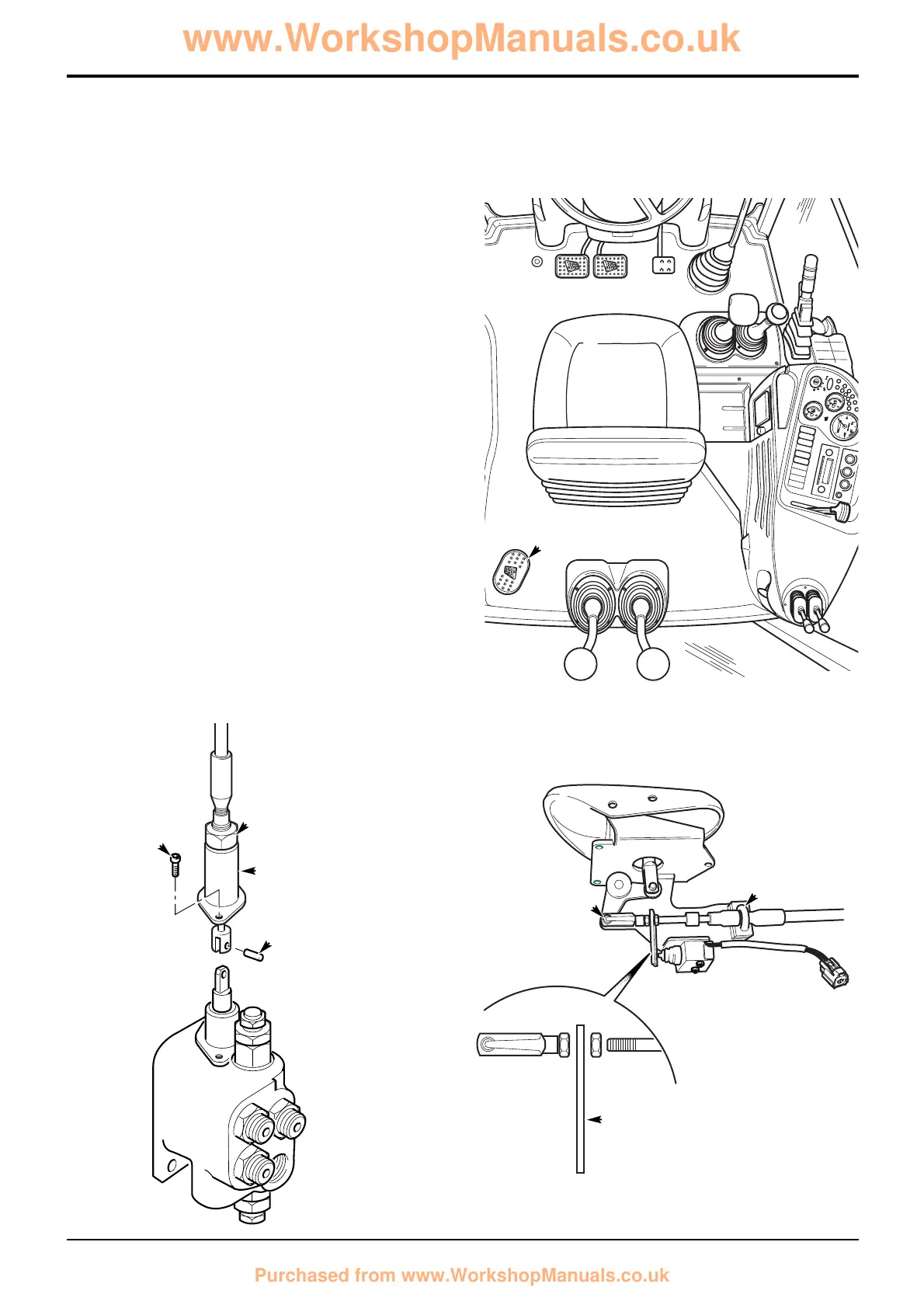

The auxiliary footpedal control A is mounted in the cab floor
as shown. The cable operates the auxiliary control valve
located adjacent to the excavator valve. The cable is
accessible underneath the rear L.H. corner of the cab.
Note the routing of the existing cable and route the new
cable in the same way.
Removal
1 Park the machine on firm level ground, apply the
parking brake. Lower the loader arms and excavator to
the ground, switch OFF the engine and remove the
starter key.
2 Working at the rear of the machine at the auxiliary valve,
undo the locknut B. Remove the screws C and slide
back the housing D to reveal the clevis as shown.
Remove the clevis pin E to release the cable.
3 At the footpedal remove the U-clamp F securing the
cable to the bracket. Remove the spring clip G to
release the cable. If the cable is to be replaced, remove
and retain the microswitch operating tab H from the old
cable as shown.
Replacement
Replacement is the reverse of the removal sequence.
A394410
A
