JVC GY-HM200U User Manual

Display Screen in Media
Mode

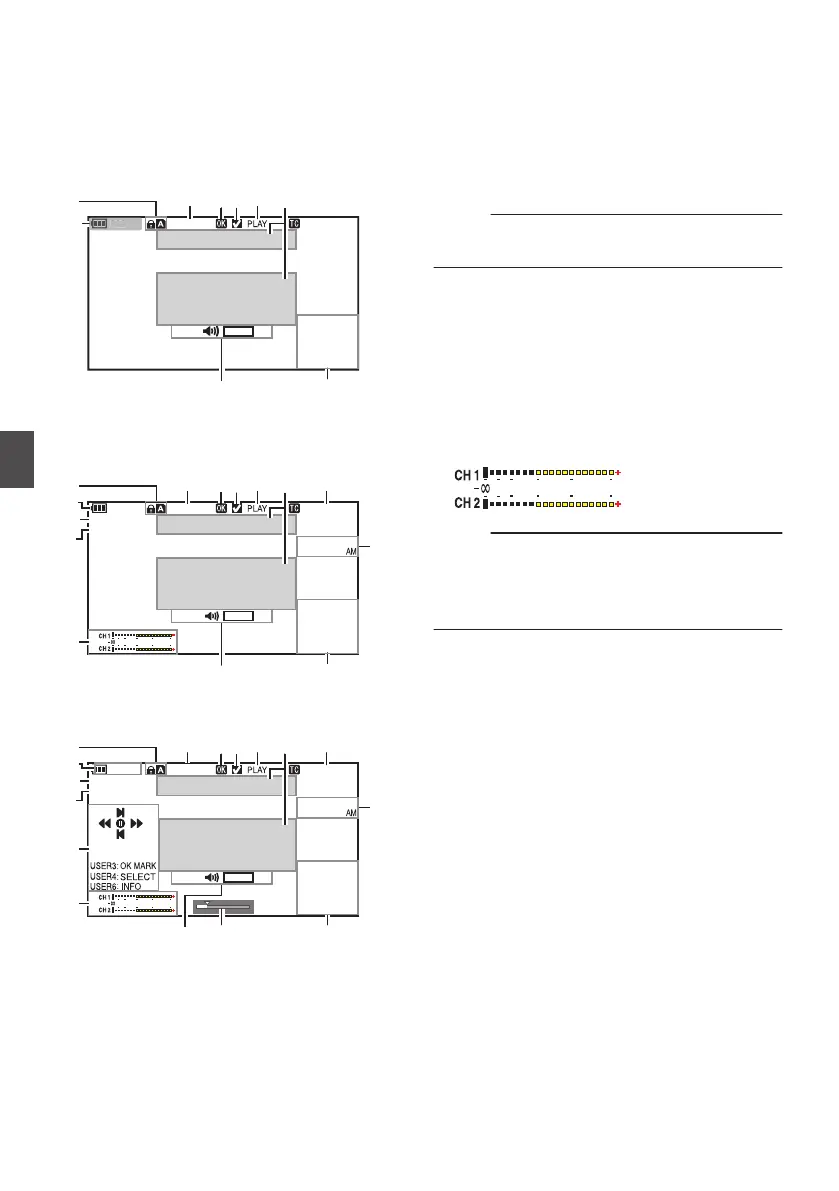

Media Display 0 Screen
This screen displays the media status or event. It
is also used to display warnings only.
.
282min
00:00: 00.00
1000/ 2000
0
A
G
I
M
P
N
O
L
2
82
m
i
n
※
* Appears only during warnings
Media Display 1 Screen
.
282min
0
12 :34 :56
Jan 24 ,2015
00:00:00.00
3840x2160
30p 150M
4030 20 10 0
1000/ 2000
A
F
G
I
J
KM
P
N
C
D
O
L
B
Media Display 2 Screen
.
282min
0
12 :34 :56
Jan 24 ,2015
00:00:00.00
3840x2160
30p 150M
4030 20 10 0
1000/ 2000
B
A
F
G
I
J
KM
P
N
C
D
O
E
L
H
A
Media
0
Displays the media slot (W or Y) of the
currently played clip.
0
z
appears when the write-protect switch of
the SD card is set.
B
Voltage/Battery Power
Displays
the current status of the power supply
in use.
(A P31 [Power Status Display] )
Memo :
0
Displayed in the Media Display 0 screen during
warnings only.
C
Resolution
Displays the video image resolution.
D
Frame Rate/Bit Rate
Displays the frame rate and bit rate in pairs.
E
Operation Guide
Displays a guide for the current operation
buttons.
F
Audio Level Meter
Displays the audio levels of CH1 and CH2.
.
4 030 20 10 0
Memo :
0
This item is not displayed when [Main Menu] B
[LCD/VF] B [Display Settings] B [Audio Meter]
is set to “Off”.
(A P
107 [ Audio Meter ] )
G
Volume Operation Indicator
0
The display appears when the volume (0 to
15) of the headphone or speaker changes.
(A P
128 [Volume Operation Indicator] )
H
Position bar
Displays the current position in the video.
During trimming, the position bar appears in
green, and icons for the in and out points are
displayed.
6
: Current position of the video
7
: Position to start trimming
(In point)
8
: Position to end trimming
(Out point)
132
Display Screen in Media Mode
Display/Status Screen
