Connecting via SDI K
0
Digital video signals, together with embedded
(superimposed) audio signals and time code
signals, are output for both the 3G-SDI/HD-SDI
and SD-SDI signals.
Memo :
0
The sampling frequency for embedded
(superimposed) audio signals is 48 kHz. Time
code of the built-in time generator as well as
playback time code are also output.
Setting the Aspect
0
For setting the mode to convert images with a
16:9
aspect ratio to display on a 4:3 aspect ratio
screen.
0
Set using [A/V Set] B [Video Set] B [SD
Aspect].
0
The available modes include
“Letter”
(blackened at the top and bottom) and
“Squeeze” (full size, compressed at the left and
right).
(A P
110 [ SD Aspect ] )
Memo :
0
When [Record Format]
B
[System] is set to “SD”,
and [SD Aspect] is set to “4:3”, this item cannot be
selected.
(A P115 [ System ] )
(A P116 [ SD Aspect ] )

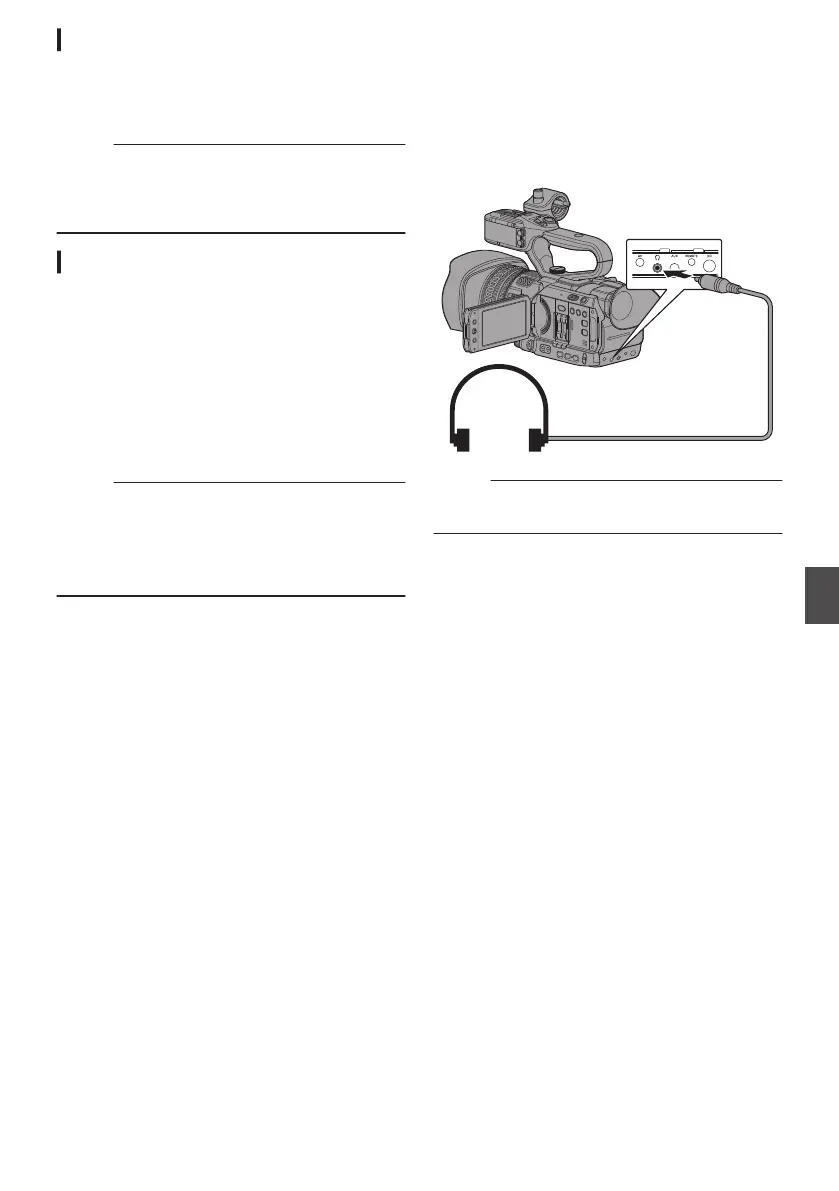

Connecting the
Headphone
0
Select the audio output from the [x] terminal
using [A/V Set
] B [Monitor].
(A P112
[ Monitor ] )
.
Memo :
0
There
is no sound output from the speaker when
the headphone is connected.
