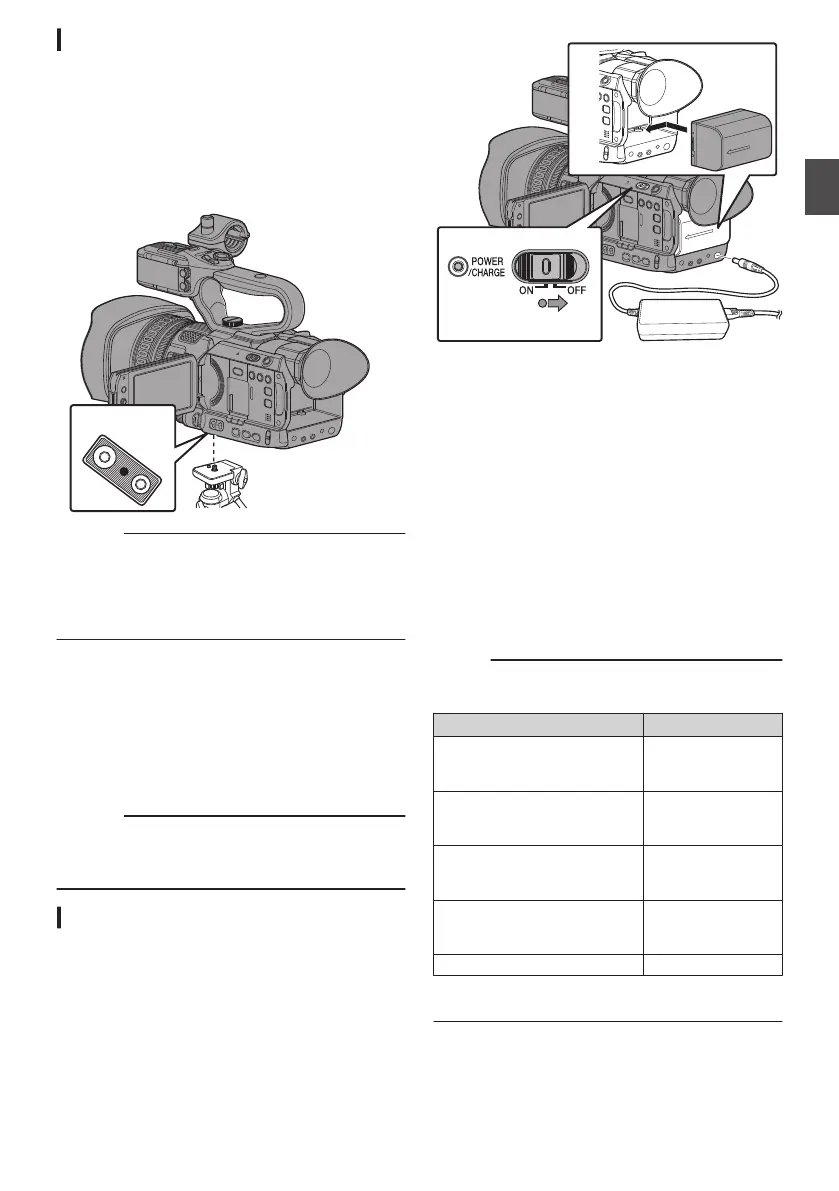

Attaching the Tripod
Use the screw hole at the bottom of this camera
recorder.
(3/8×16UNC, 1/4×20UNC)
Use the screw hole that suits the tripod.
To prevent the camera recorder from falling off,
which may result in injuries or damages, read the
instruction manual of the tripod to be used and
make sure that it is securely attached.
.
o Bottom
Caution :
0
Use the tripod on a stable surface.
0
To prevent the camera recorder from falling,
attach securely using the rotation prevention
hole.
0
Use
screws with screw length 5 mm and below.
Power Supply
To use this camera recorder, you can attach a
battery pack or connect an AC adapter to it.
(A P
29 [Using a Battery Pack] )
(A P31 [Using AC Power (DC IN Power)] )
Caution :
0
Set the [POWER ON/OFF
] switch to “OFF”
before changing the power supply that operates
this camera recorder.
Using a Battery Pack
Charging the Battery
Charge the battery immediately after purchase or
when the battery power is running low.
*
The battery is not charged when purchased.
.
3
2
1
4
1
Hold down the lock button (blue) at the
center of the [POWER ON/OFF] switch to set
to “OFF”.
2
Attach the supplied battery.
Slide it in until you hear a click.
3
Connect the supplied AC adapter to the
[DC]
terminal.
Open the cover of the [DC]
terminal and connect
as shown in the diagram.
4
Connect the AC adapter to a power outlet.
0
The [POWER/CHARGE] lamp blinks during
charging and will go out after charging is
complete.
0
Remove the AC adapter after charging is
complete.
Memo :
0
Blinking
of the [POWER/CHARGE] lamp during
charging indicates the charge level.
[POWER/CHARGE] Lamp
Charge Level
Alternates between a blinking
orange light (4 times) and
light off (1 second)
Less than 25 %
Alternates between a blinking
orange light (3 times) and
light off (1 second)
Less than 50 %
Alternates between a blinking
orange light (2 times) and
light off (1 second)
Less than 75 %
Alternates between a blinking
orange
light (blinks once) and
light off (1 second)
Less than 100 %
Light goes out Fully charged
0
You
can charge the battery even when operating
the camera recorder using the AC adapter.
Settings and Adjustments Before Use
29
Preparations
