Connecting External
Monitor
0
To output live or playback video images and
audio sound to an external monitor, select the
output signals from the camera recorder, and
connect
using an appropriate cable according to
the monitor to be used.
0
Choose the most suitable terminal according to
the monitor in use.
0

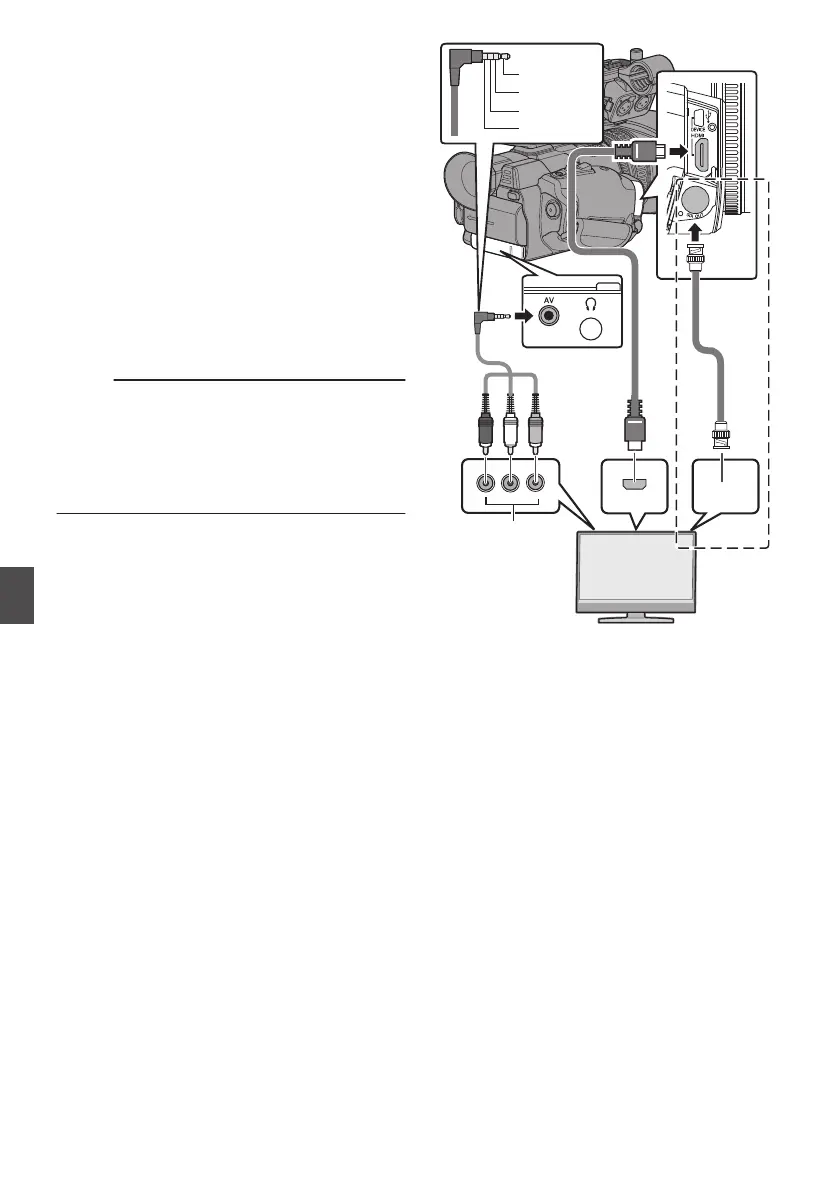

[SDI OUT] terminal K:
Outputs either the 3G-SDI/HD-SDI signal or SD-
SDI signal.
0
[AV] terminal:
Outputs composite video and audio signals.
0
[HDMI] terminal:
Outputs HDMI signals.
Memo :
0
If the [
SDI OUT] terminal or [HDMI] terminal is
connected, configure the settings in the [A/V
Set] menu according to the monitor to be
connected.
(A P109
[ HDMI/SDI Out K ] )
(A P109 [ HDMI Out M ] )
.
GY-HM200U/
GY-HM200E only
SDI IN
HDMI
AV input
Audio (Lch)
Audio (Rch)
Video
GND
* Select the output signal in [A/V Set] B
[HDMI/SDI Out]
.
(A P109 [ HDMI/SDI Out K ] )
*
When [Record Format]
B
[System] is set to “SD”,
only SD-SDI signals are output.
(A P115 [ System ] )
* To display the menu screen or display screen on
an external monitor, set [A/V Set] B [Video
Set] B [Display On TV] to “On”.
(A P109 [ Display On TV ] )
