5-1
SECTION 5
PARTS LIST
SAFETY PRECAUTION
Parts identified by the symbol are critical for safety. Replace only with specified part numbers.

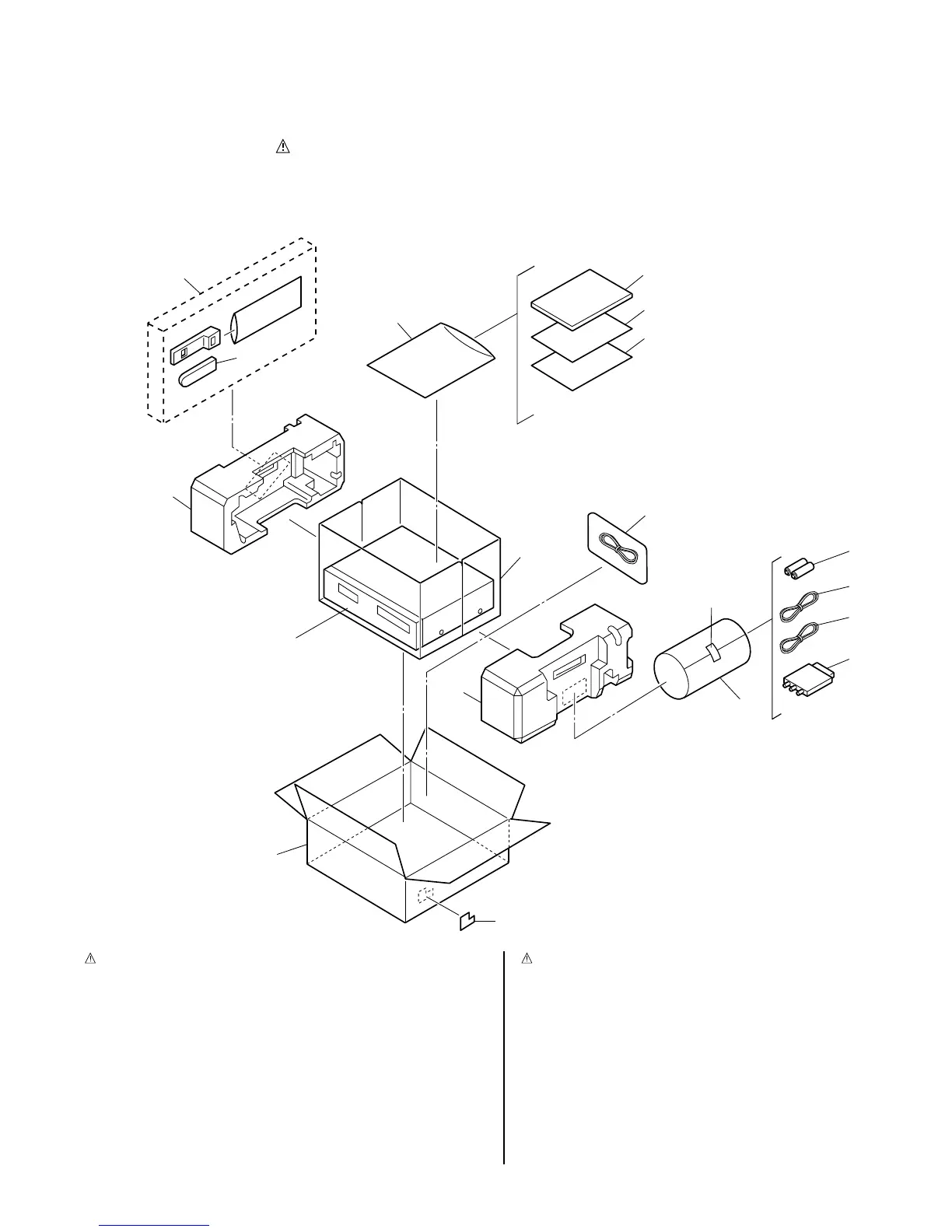

5.1 PACKING AND ACCESSORY ASSEMBLY <M1>
The instruction manual to be provided with this product will differ according to the destination.
******************************
PACKING AND ACCESSORY ASSEMBLY <M1>
301 LP30823-009A PACKING CASE,SR-VS20E
LP30823-010A PACKING CASE,SR-VS20EK
302 LP30868-001B CUSHION ASSY
303 PQM30021-95 POLY BAG,SR-VS20E
PQM30021-105 POLY BAG,SR-VS20EK
306 LP20873-016A REMOTE CONTROLLER
306A LP40254-004A COVER(BATTERY)
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
SPEC OF BARCODE
301
311
FINAL ASSY <M2>
ADHESIVE
TAPE
307
308
306
306A
302
303
302
312
315 x2
310
309
318
313
314
307 – BATTERY,X2(“R6”TYPE)
308 QPC02202230P POLY BAG
! 309 LPT0544-001A INST.BOOK(EN),SR-VS20E
LPT0543-004A INST.BOOK(EN),SR-VS20EK
! 310 LPT0544-002A INST.BOOK(GE),SR-VS20E
! 311 LPT0544-003A INST.BOOK(IT),SR-VS20E
312 PEAC0300-02 RF CABLE
313 QAL0095-005 LED CABLE ASSY(Satellite Controller)
314 QAM0123-001 PERI PIN CABLE
315 QAM0259-001 ADAPTER PLUG,x2
318 QPA02503503P POLY BAG
