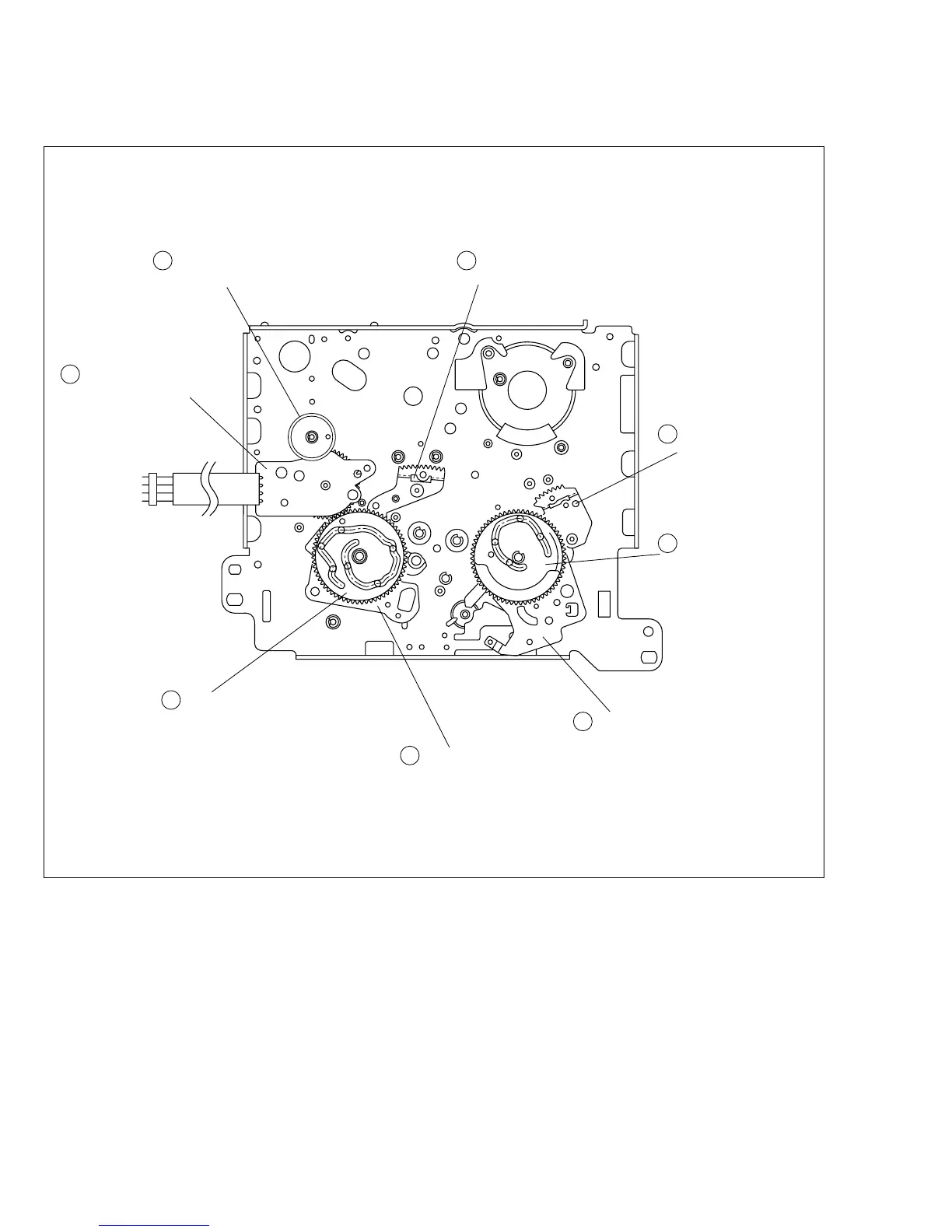

2.16 MECHANISM PHASE CHECK/ADJUSTMENT
See Fig. 2-16-1.
22
34
36
39
38
40
37
35
Worm Wheel 2
See Fig. 2-13-9A.
Arm Gear 1 Assembly
See Fig. 2-13-13B.
Rotary Encoder Assembly
See Figs. 2-13-9A and
2-13-13A.
Main Cam
See Figs. 2-13-13A and 2-13-13B.
Centering Arm Assembly
See Fig. 2-13-13B.
Clutch Lock Lever Assembly
See Fig. 2-13-14A.
Arm Gear 2 Assembly
See Fig. 2-13-14A.
Sub Cam
See Fig. 2-13-14A.
