38

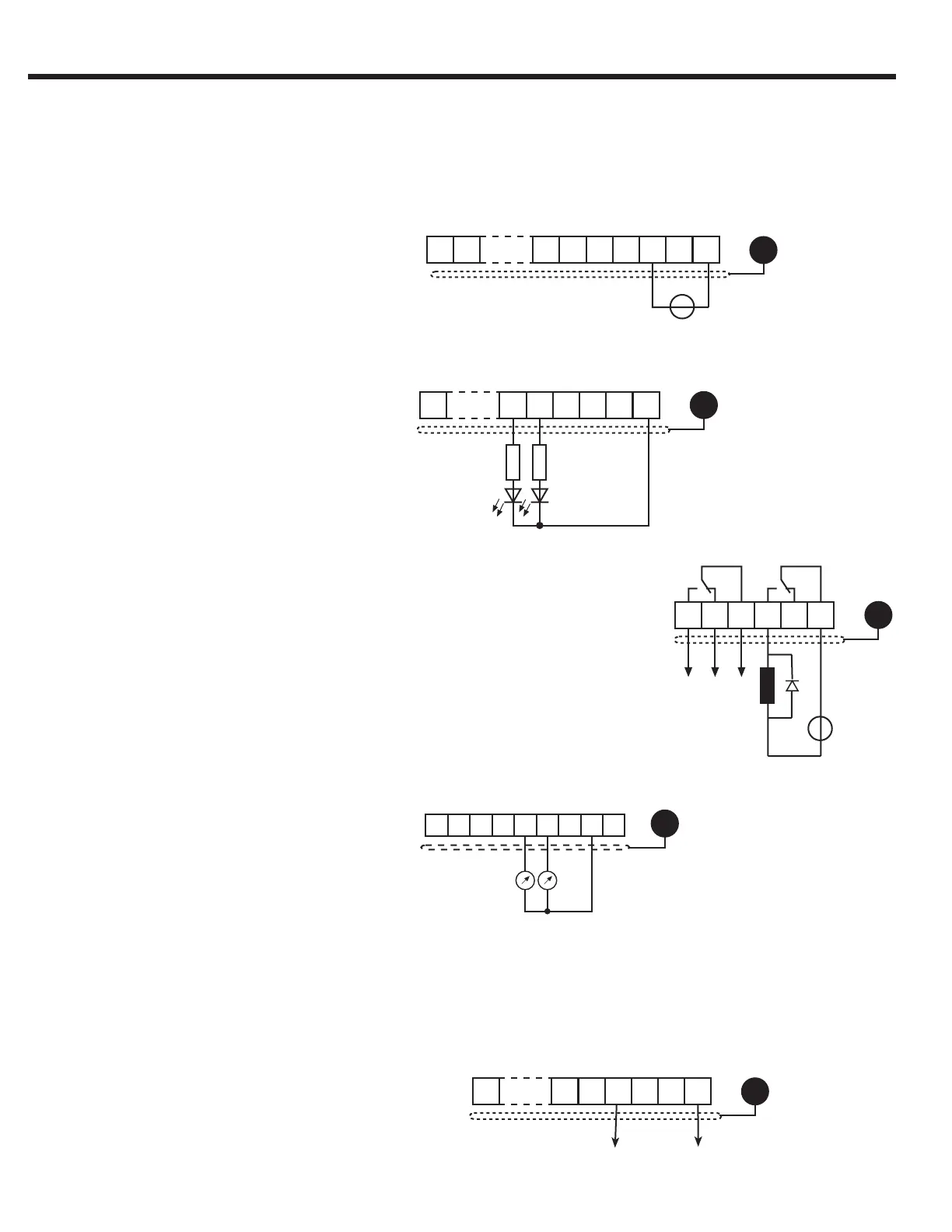

Control Connections





   


  
A total of
max. 50 mA
DC for
The voltage output serves for triggering the digital inputs as well as for
supplying external control devices. Do not exceed the maximum output cur-
rent of 100 mA. This output is short circuit protected.
The supply to the control circuit through an external voltage source keeps
the control in operational condition even if the power stage is switched off.
The external power supply should have the 0VDC connected to ground,
preferably at the supply device itself. To prevent undened conditions (false
triggering), rst switch on the power supply then the inverter.
     


  
20...30V ±0%, 1 A DC regulated
   


  



  


  

In case of inductive loads on the
relay outputs, protective wiring
must be provided (e.g. RC or
diode arc suppression)!
2.1.9. Voltage Output
2.1.7. Relay Outputs
2.1.5. Voltage Input
/ External Power
Supply
2.1.6. Digital Outputs
2.1.8. Analog Outputs
