MECHANICAL INSTALLATION
3.4.3.2 Liquid heat sinks
Following liquid heat sinks are available, if no usable cooling surface exists at customer
side:
Heat sink Cabinet outcut
Size L1 in mm L2 in mm L3 in mm
04H6TFW-0400 452 435 406
06H6TFW-0600 652 635 606
08H6TFW-0800 852 835 806
10H6TFW-1000 1052 1035 1006
12H6TFW-1200 1252 1235 1206

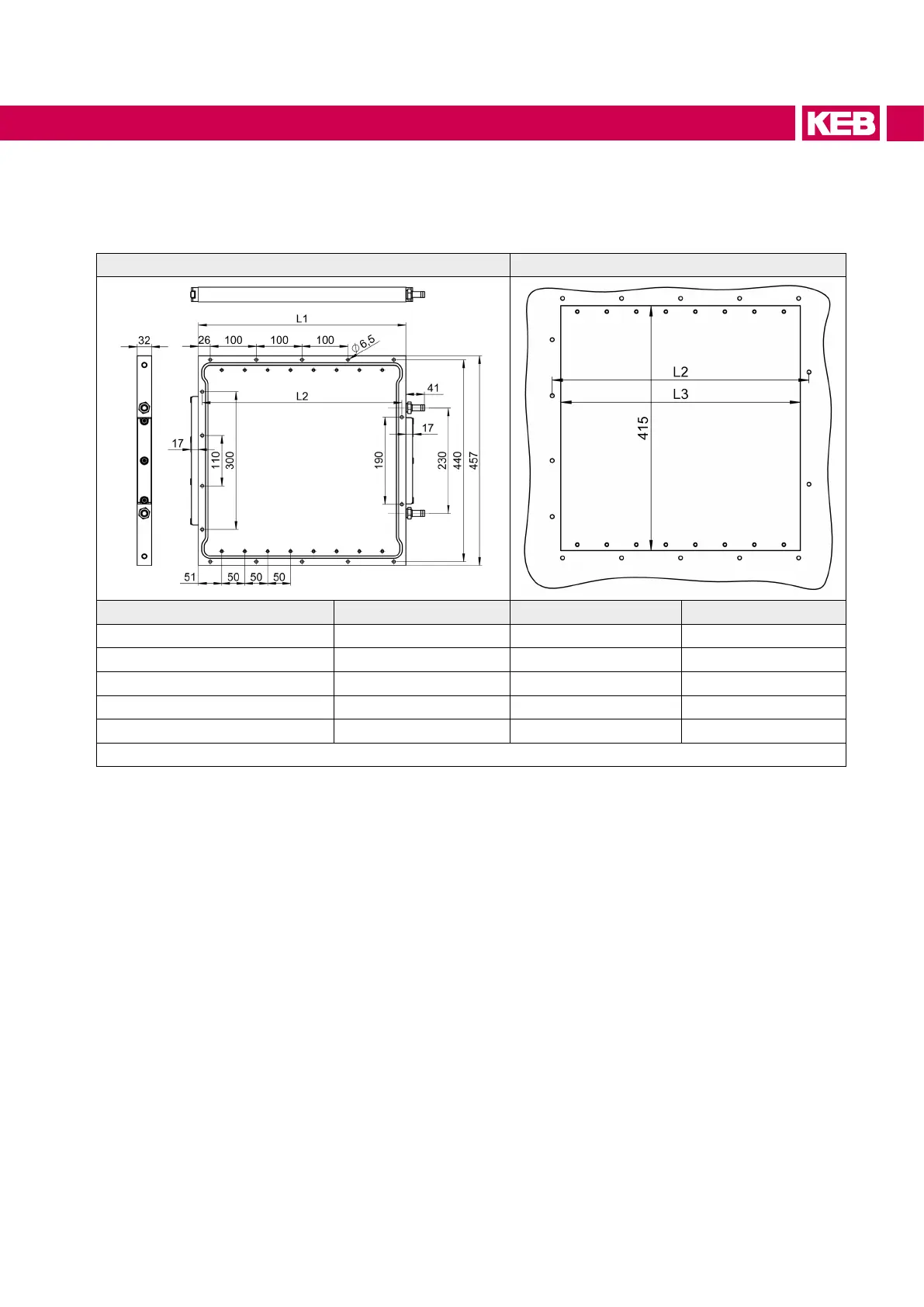

Figure 2: Main heat sink for COMBIVERT H6
