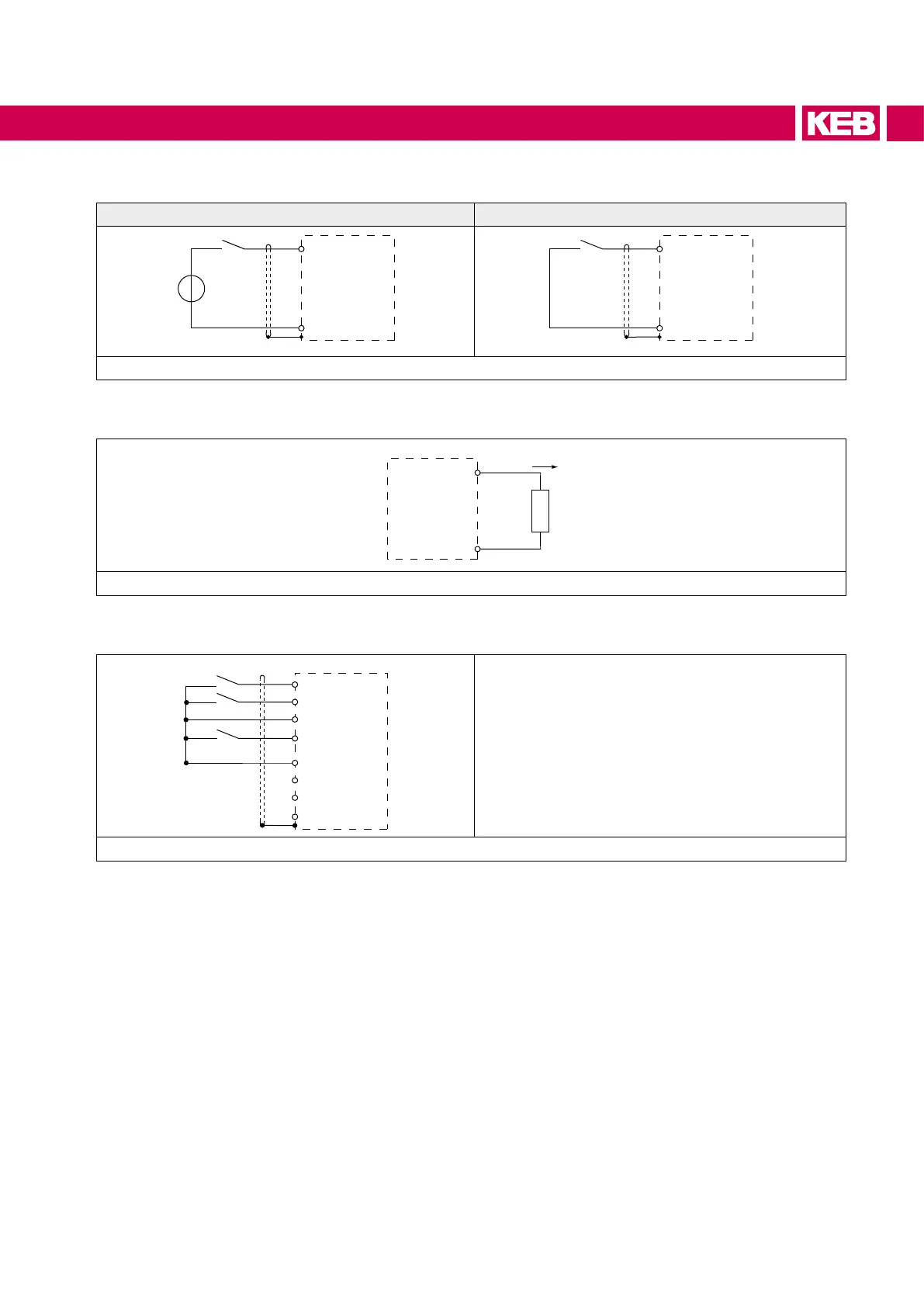

4.4.5.3 Connection of the digital inputs
AFE and charging module Only charging module
0V
DI1...4
+
24V
DI1...4
Figure 38: Connection of the digital inputs DI 1…DI 4
4.4.5.4 Connection of the digital outputs
DO1...4
0V
IL_max
Figure 39: Connection of the digital outputs DO 1…DO 4
4.4.5.5 Example for the control of digital inputs and digital outputs
DO1
DI1
DO2
DI2
DO3
DI3
DO4
DI4
Operation with hardware release:
The 24V for the control of the inputs can be con-
trolled with the set output DO4.
Figure 40: Example for the control of digital inputs and digital outputs
63
CONNECTION OF THE CONTROL
