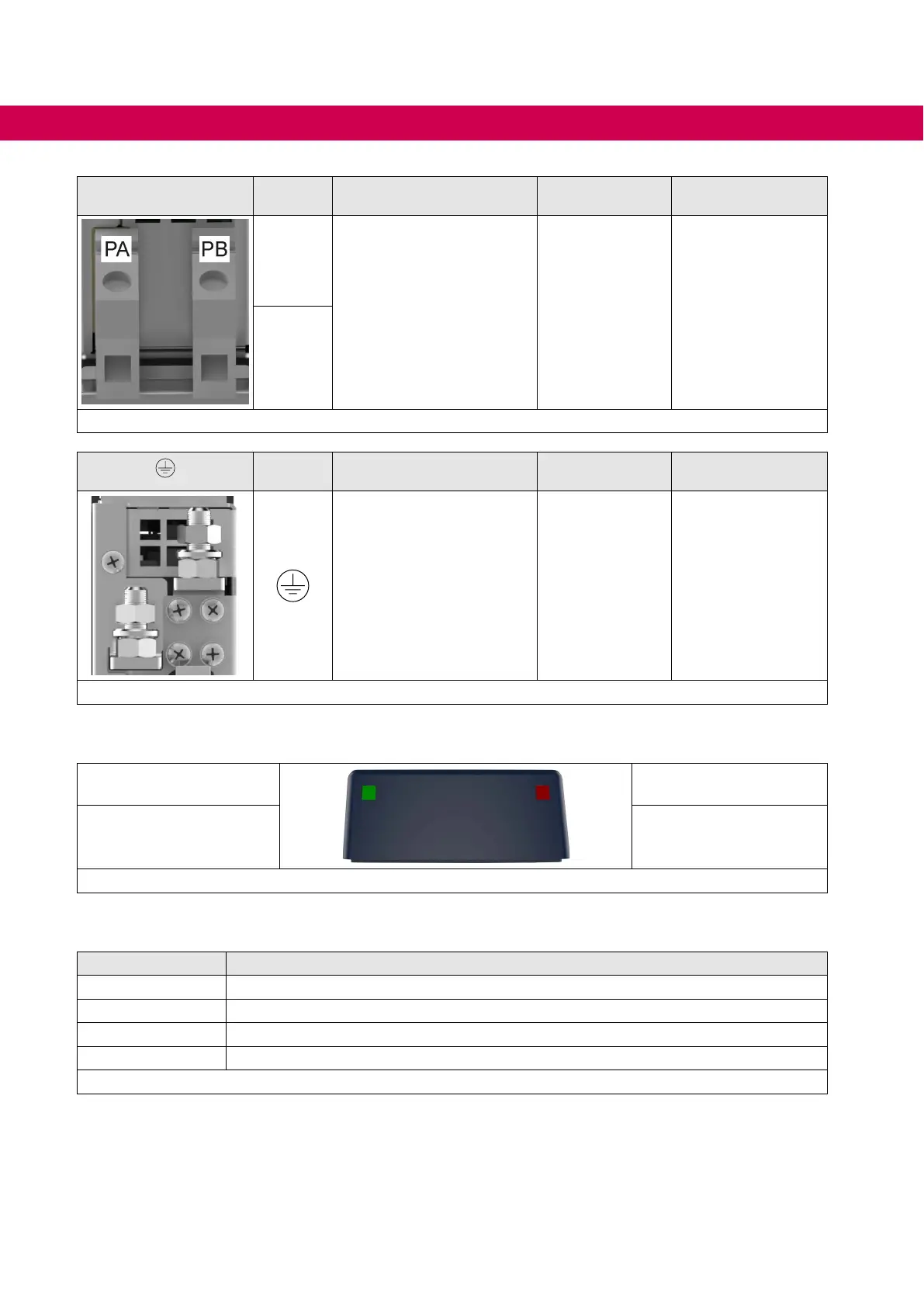

KEB COMBIVERT H6 Series User Manual

X1B Name Function
Conductor
cross-section
Tightening torque
PA
Connection for
braking resistor
0.5...16mm²
AWG20-4
2 Nm
18lbinch
PB
Figure 23: Terminal block X1B
Name Function
Conductor
cross-section
Tightening torque
Connection for protective
earth and function earth
M8
4.5 Nm
40lbinch
Figure 24: Connection for protective earth and function earth
4.2.1 Status LED displays charging module
Status LED 1
- without function -
Status LED 2
Charging module
Figure 25: Status LED displays charging module
4.2.2 Status LED charging module
LED Status
o󰀨 No voltage supply of the device
yellow Device initialised
green Device ready for operation
red Device in error routine
Table 14: Status LED charging module
