MECHANICAL INSTALLATION
3.4.4 Dimensions and weights of modules with at rear heat sink
198
50
407
60,5
395
7
200300
150
50 50
Housing Module width in mm Weight in kg
B (charging module) 50 3.8
C 100 5.8
E 200 12.5
G 300 18

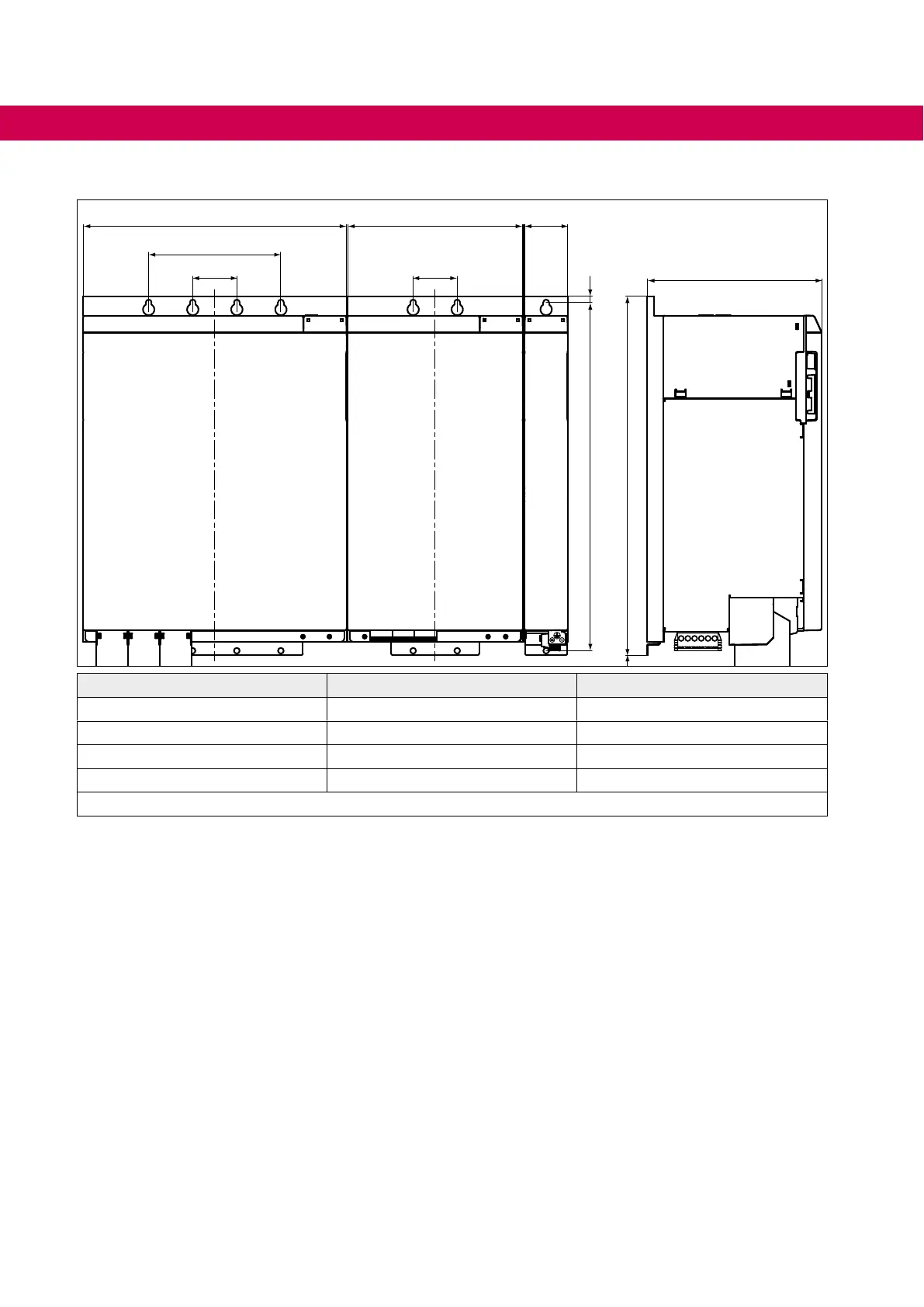

Figure 3: Dimensions and weights of the modules
