4.3 Connection of the power unit
4.3.1 Connection of the DC bus X1D
ThetinnedcopperbarsconnecttheDCbusofthedi󰀨erentH6devices.Precharging,
power supply and regeneration (if required) is provided by the power supply module.
The electrical connection is made with metal bridges, which must be mounted (as illus-
trated in the photo). A plastic cap must be installed at both ends of the H6 system as
protection against accidental contact.
IftheDCcurrentisgreaterthan350A,thecurrentmustbelimitedtothisvalue
for each DC bus connection X1D and the total current must be divided between
the right and left connection.
DANGER
Dangerous voltage
► ThevoltageontheDCbusduringoperationcanbeuptoDC840V!

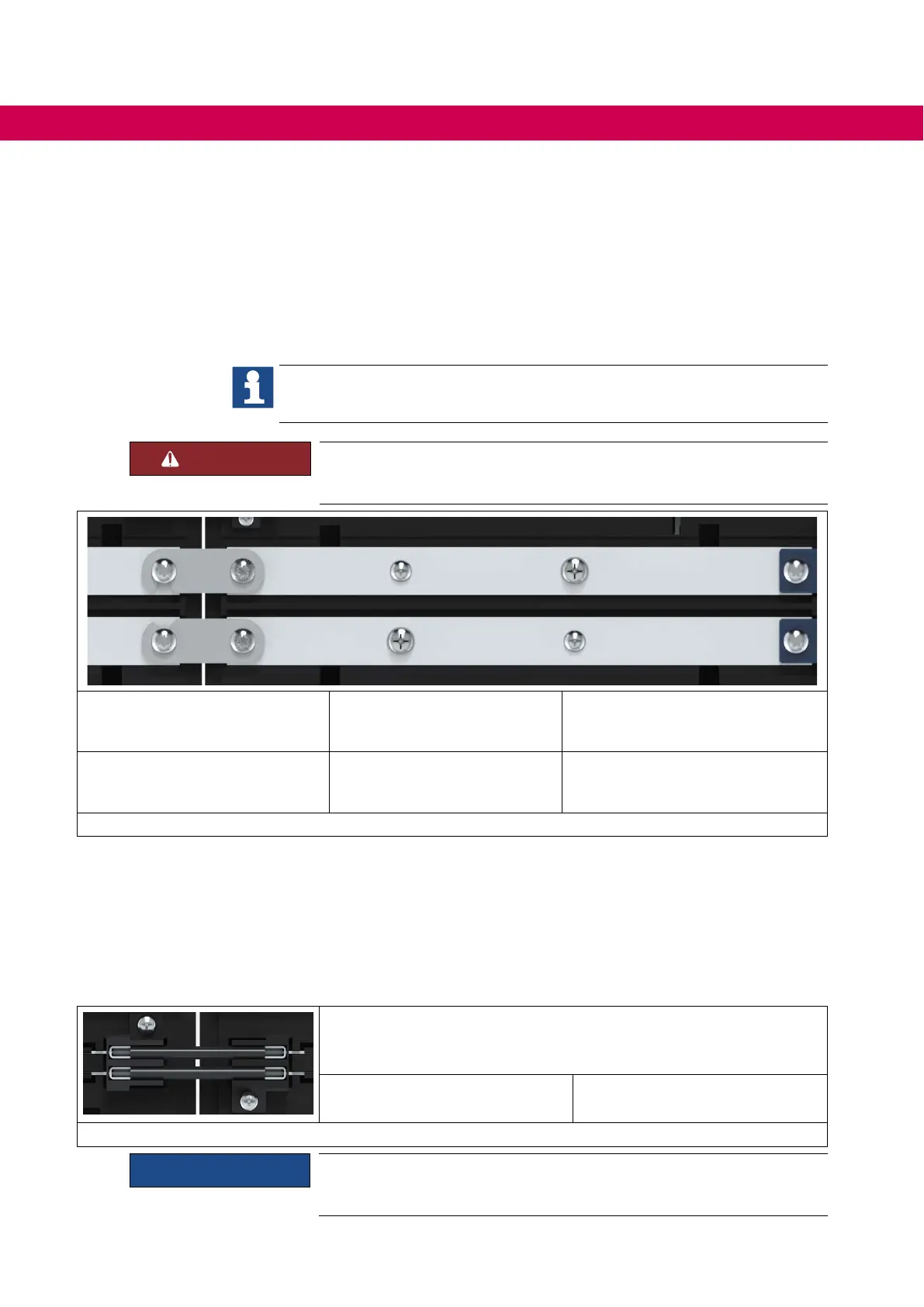

Bridges for the connection of the
DC bus between the devices
upperrail=DC+
lower rail = DC–
Place plastic cap as protection against
accidental contact at the end of the
system
Torx-oval-head screw
M4x10
required tool
TorxscrewdriverTX20
Tightening torque
3.0Nm(bridge)
1.1…1.2Nm(plasticcap)
Figure 27: Connection of the DC bus
Attach the cover for the DC bus again after the installation.
4.3.2 Connection of the 24V bus X1C
The 24V bus supplies the control and the driver circuit of the axis module and the power
supply and regenerative unit with 24V DC voltage. Generally this voltage is provided by
the COMBIVERT H6 power supply module, but also an existing voltage source can be
used.
The bridge for the connection of the 24V bus is attached to the devices
andxedwithascrew.
Cross-headscrewM3x10 Tighteningtorque0.5Nm
Figure 28: Connection of the 24V bus
NOTICE
The assembly of the jumper must be carried out with special care. Tilting
or breaking the plug contacts is to be prevented.
54
CONNECTION OF THE POWER UNIT
