KEB COMBIVERT R6-N User Manual

Hardware
© KEB, 2015-07 COMBIVERT R6-N Page1.3 - 7
1
10

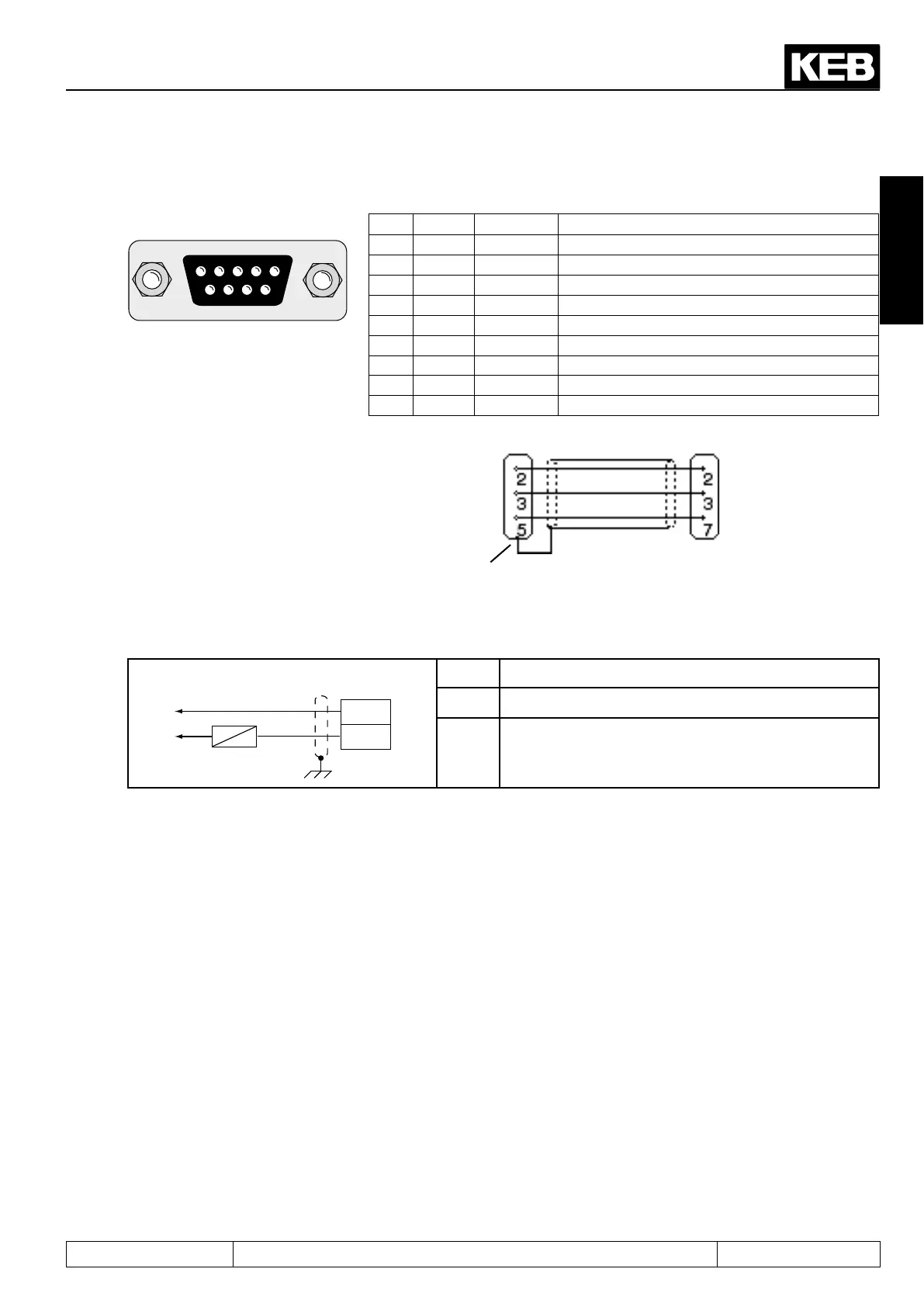

1.3.1.5 HSP5 operator interface X4B
X4B PIN RS485 Signal Meaning
54321
9876
1 - - reserved
2 - TxD Transmission signal RS232
3 - RxD Receive signal RS232
4 A‘ RxD-A Receive signal A RS485
5 B‘ RxD-B Receive signal B RS485
6 - VP Voltage supply +5 V (Imax=50 mA)
7 C/C‘ DGND Data reference potential
8 A TxD-A Transmission signal A RS485
9 B TxD-B Transmission signal B RS485
RS 232 cable
Part number
00.58.025-001D
Length 3 m
9-pole Sub-D socket 9-pole SUB-D connector
OperatorPC
Housing (PE)
1.3.1.6 Connection mains contactor X1B at R and P housing
X1B
14/K2
13/K2
K1
L1
N
K1 Mains contactor
X1B Connection for mains contactor K1
