Network components

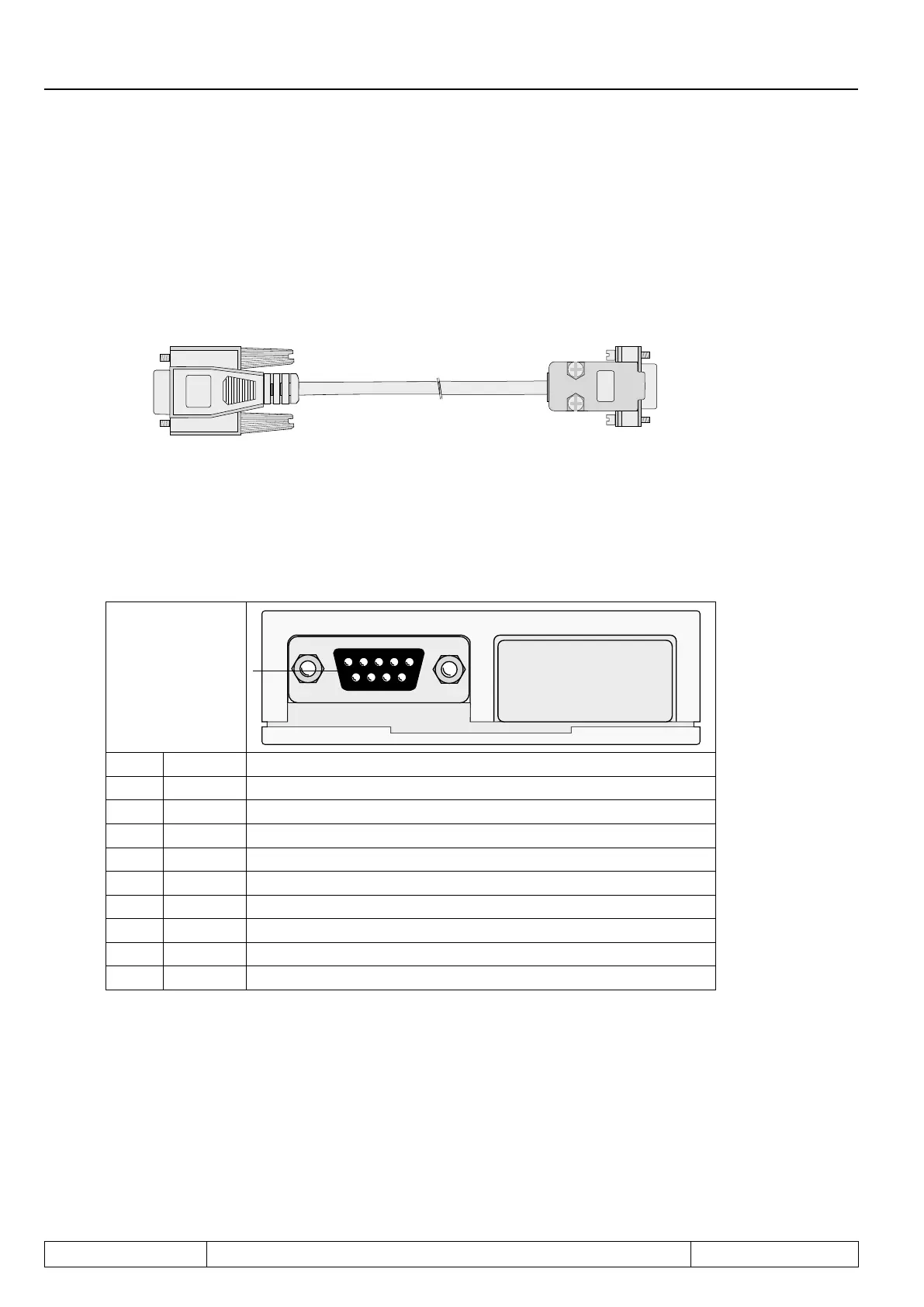

2.3.3 HSP5 cable PC / control board 00F50C0-0010
The HSP5-cable is used for the direct connection between PC and control board. The necessary conversion to
TTL level occurs in the cable.
9-pol. SUB-D coupling 9-pol. 9-pole SUB-D
connector
PC
HSP5
TTL
PC F5-Control board
2.3.4 Interface operator F5 00F5060-2000
A potential-isolated RS232/RS484 interface is integrated in the interface operator (00.F5.060-2000). The telegram
structure is compatible to protocol DIN 66019 and ANSI X3.28 as well as to protocol extension DIN 66019 II.
RS232/RS485
54
3
2
1
9 876
PIN Signal Meaning
1 – reserved
2 TxD Transmission signal/RS232
3 RxD Receive signal/RS232
4 RxD-A (+) Receive signal A/RS485
5 RxD-B (-) Receive signal B/RS485
6 VP Supply voltage -Plus +5V (Imax=10mA)
7 GND Data reference potential; Mass for VP
8 TxD-A (+) Transmission signal A/RS485
9 TxD-B (-) Transmission signal B/RS485
2.3.5 Patch cable for parallel connection of regenerative units
Theparallelconnectionofregenerativeunitsismadewiththepatchcable(PartNo.:0090829-9902)between
the X2D sockets.
