7-4 Wave Functions (6221 Only) Model 6220/6221 User’s Manual
Return to Section 7 topics
Arbitrary waveform ranging
The arbitrary waveform is described in normalized units from -1 to +1. See the fol-
lowing example:
Ranging: BEST
Amplitude: 10mA peak
Offset: 0mA
ARB values: range from +1 to -1
These settings will generate a waveform with a peak-to-peak value of 20mA on
the 20mA range.
Frequency
The frequency setting range for sine, square, ramp, and arbitrary waveforms is
from 1mHz to 100kHz. Note that the period is the reciprocal of the frequency: 1/f.
For example, a 1kHz waveform has a period of 1ms.
Offset

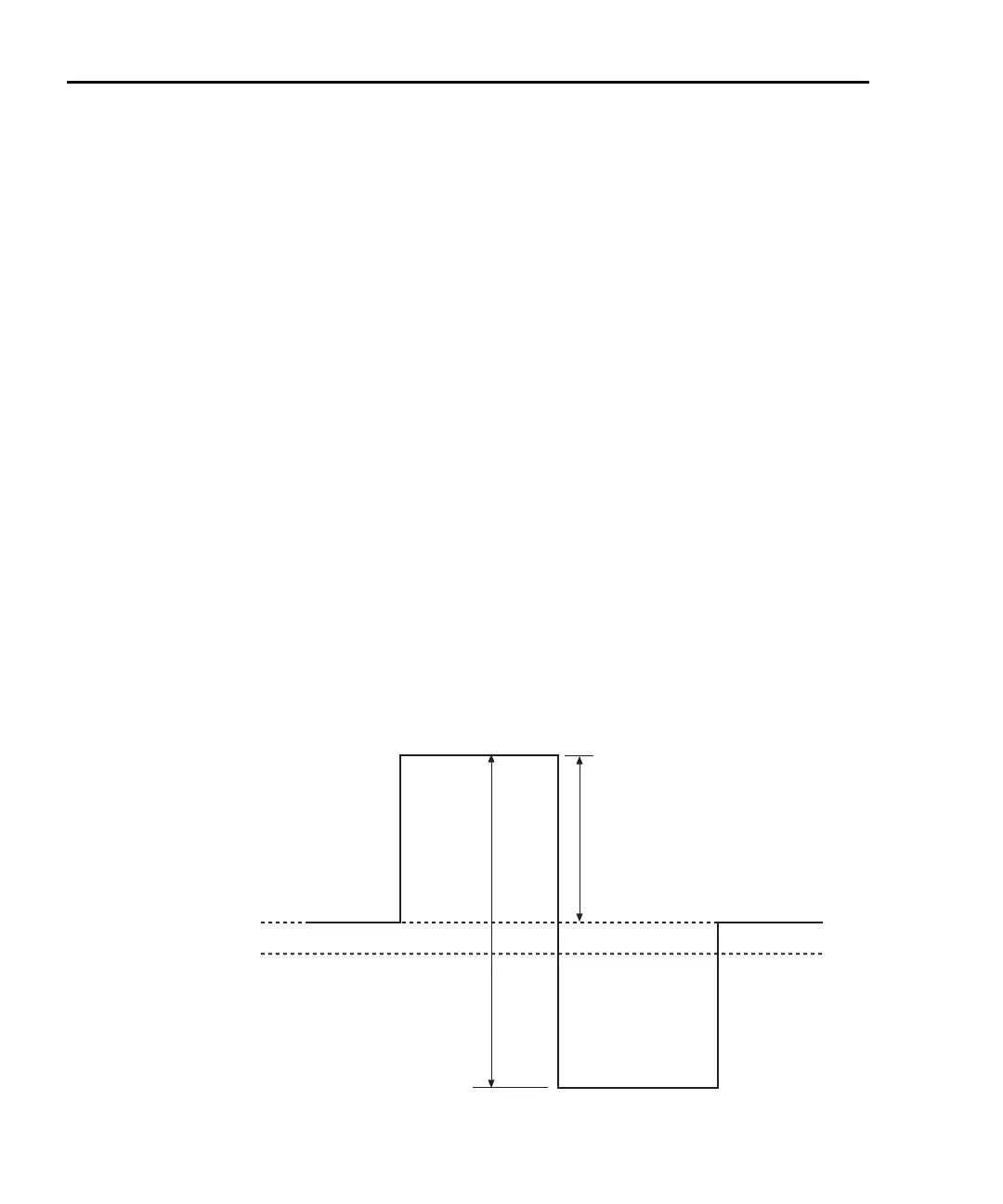

The offset setting allows you to add a DC offset value to a waveform. Figure 7-1
shows an example of a 1mA offset added to a square wave with a 10mA peak
(20mA peak-to-peak) amplitude.
Figure 7-1
Offset example
1mA
0mA
10mA Peak
20mA p-p
