1-14 Getting Started Model 6220/6221 User’s Manual
Return to Section 1 topics
Model 6221:
AMPL opens menu to set AMPL: (value) (Section 7).
FREQ opens menu to set FREQ (frequency) (Section 7).
MAIN menu
The MAIN MENU is a direct access menu that is opened by pressing the MENU
key. Menu items include CAL, TEST, SERIAL#, and BEEPER. See Section 1 of
the Reference Manual for more information on these MAIN MENU items.
Editing controls
Source and compliance editing
When the Model 622x is in the edit mode (EDIT annunciator on), the editing con-
trols are used to set source and compliance values. The typical way to enter the
edit mode is to press the EDIT key. Details on “Source and compliance editing”
are provided on page 3-8.
Menu navigation
When the Model 622x is not in the edit mode (EDIT annunciator off), the editing
controls (see Figure 1-3) are used to navigate menus to make selections and/or
set values.

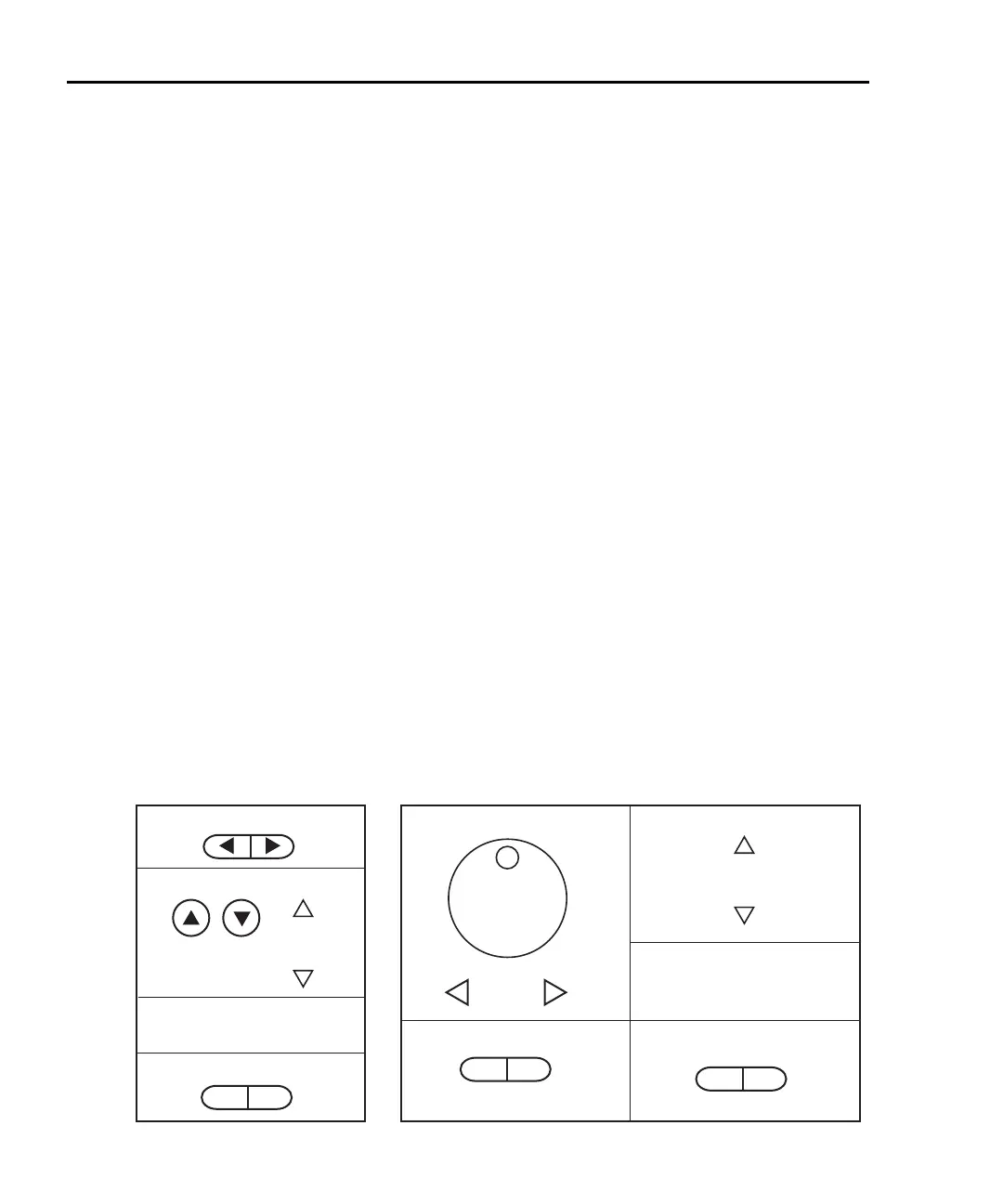

Figure 1-3
Menu editing keys
Cursor Keys
Value Adjust Keys
RANGE
RANGE
0 1 2 3 4 5 6 7 8 9 +/ 0000
Numeric Entry Keys
ENTER / EXIT Keys
EXIT ENTER
Rotary Knob & Cursor Keys
PUSH TO ENTER
CURSOR
Value Adjust Keys
RANGE
RANGE
0 1 2 3 4 5 6 7 8 9 +/ 0000
Numeric Entry Keys
ENTER / EXIT Keys
EXIT ENTER
AMPL
Cursor Keys
FREQ
(right)(left)
6220 Editing Keys: 6221 Editing Keys:
