Model 6220/6221 User’s Manual Sweeps 4-3
Return to Section 4 topics

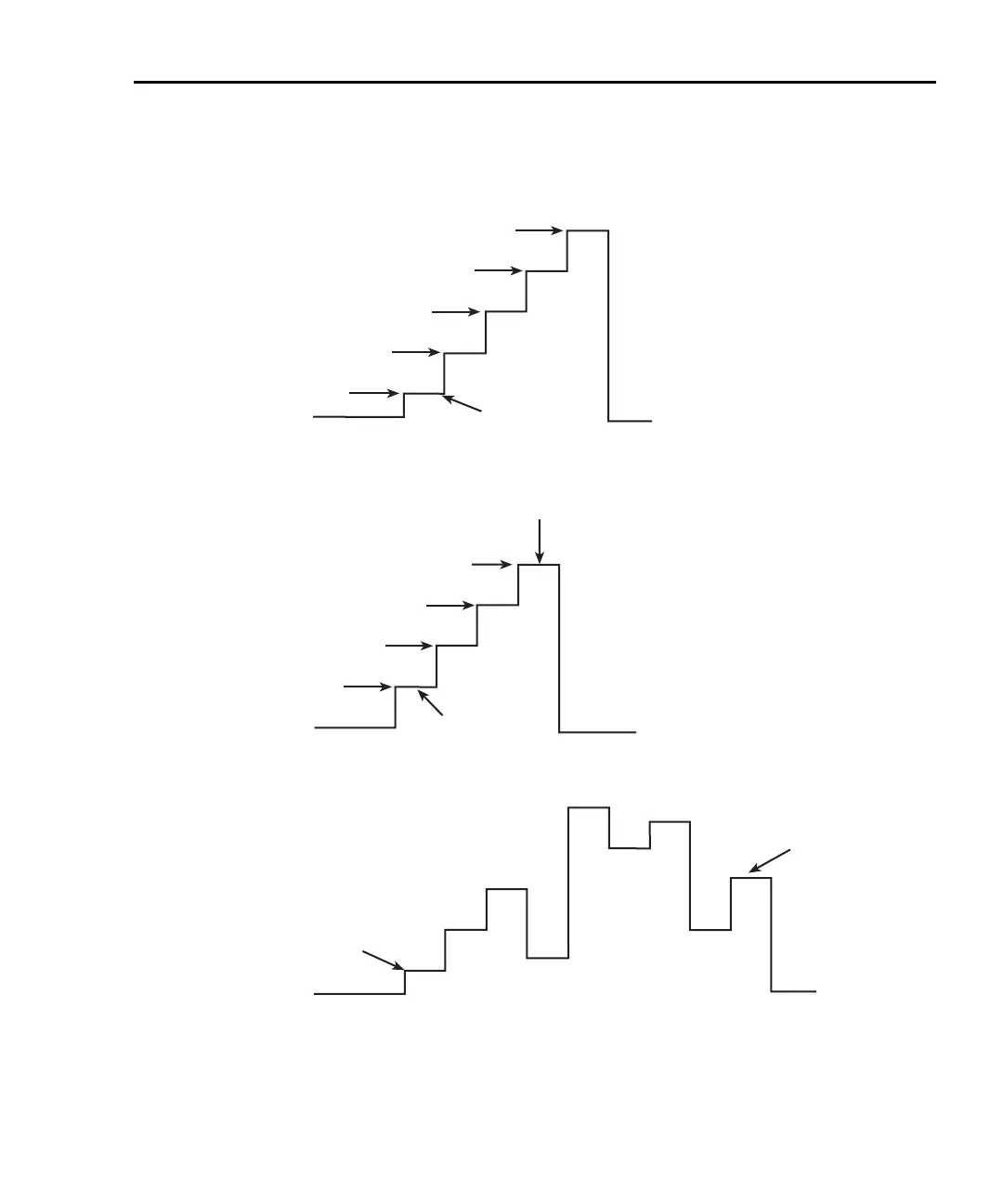

Figure 4-1
Comparison of sweep types
Bias
Start
5mA (Stop)
Bias
Start
Stop
0.1mA
1mA
10mA
100mA
Bias
First Point
Last Point
A. Linear Staircase Sweep
B. Logarithmic Staircase Sweep
Logarithmic scale
shown for
staircase steps.
C. Custom Sweep
1mA
2mA
3mA
4mA
0mA
0mA
0mA
