8.15
Section 8
Disassembly
8
4. Mark the weights for proper reassembly and
carefully slide the balance weights off the
cranksha eccentrics. See Figures 8-57 and 8-58.

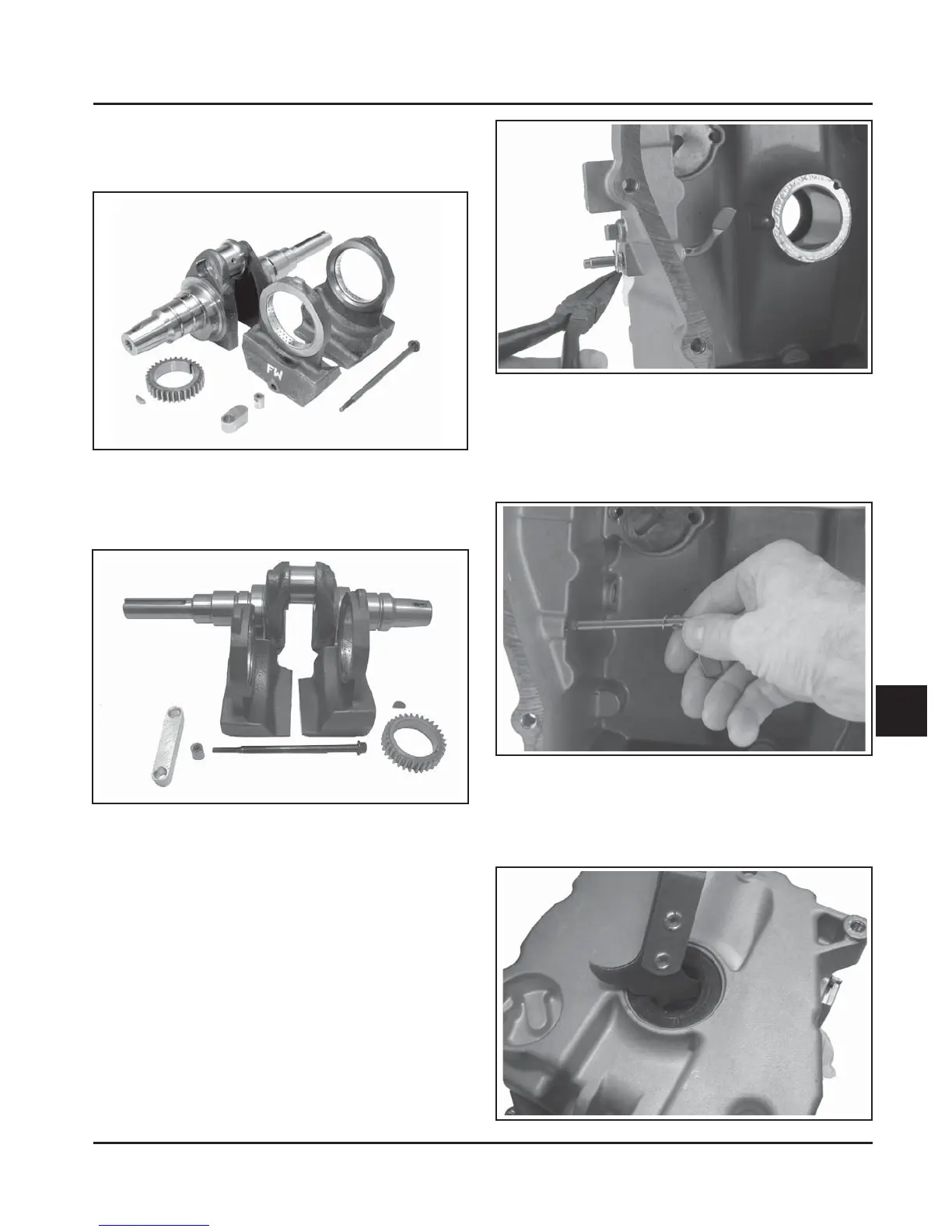

Figure 8-57. Disassembled Balance Weight (Guide
Shoe Design Before Serial No. 3618005213).
Figure 8-58. Disassembled Balance Weight
(Control Link Design After Serial No. 3618005223).
Remove Governor Cross Shaft
1. Remove the hitch pin and washer located on the
outside of the governor cross sha. See Figure
8-59.
Figure 8-59. Removing Hitch Pin and Washer.
2. Slide the sha inward and remove it through the
inside of the crankcase. Be careful not to lose the
small washer in the inside portion of the sha.
See Figure 8-60.
Figure 8-60. Removing Governor Cross Shaft.
Remove PTO and Flywheel Side Oil Seals
1. Use a seal puller to remove the PTO and flywheel
side oil seals. See Figure 8-61.
Figure 8-61. Removing Seal with a Seal Puller.
