TP-6714 4/10118 Section 8 Accessories
8.10 Current Sensing
The current sensing kit uses current transformers to
measure the load bus current on all phases. Load
current can then be displayed on the controller screen.
See Section 3.5, Normal Operation Menus.
Current transformer kits are designed for your transfer
switch based on the current rating, number of phases,
and transfer switch model.
Use a clamp-on current sensing meter to calibrate the
current. Store the measured current values using the
Calibration screen. See Section 5.18.
2
GM47965

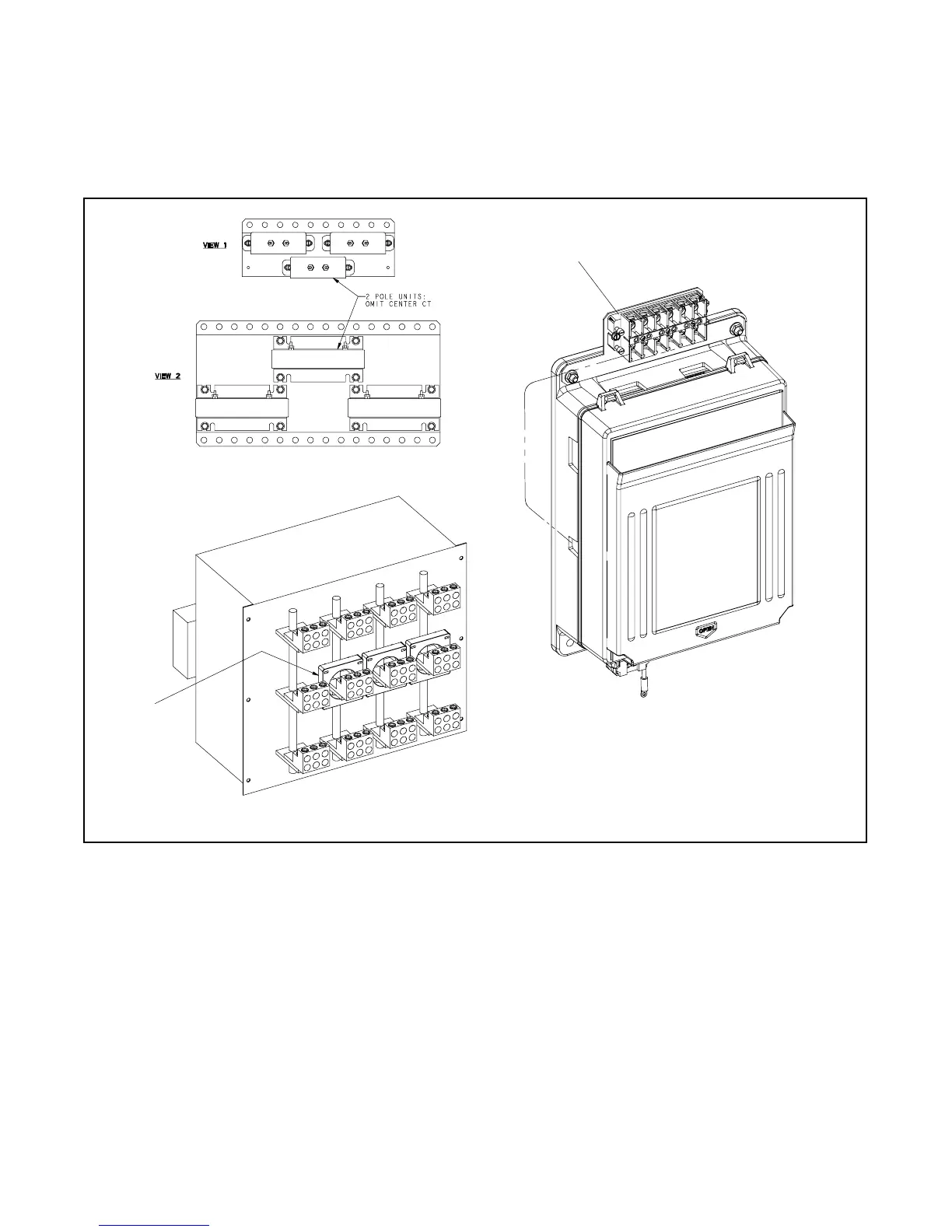

1. Current transformers on load bus 2. Terminal block TB1 (see wiring diagram GM47803)
1
Figure 8-27 Current Sensing Kit
