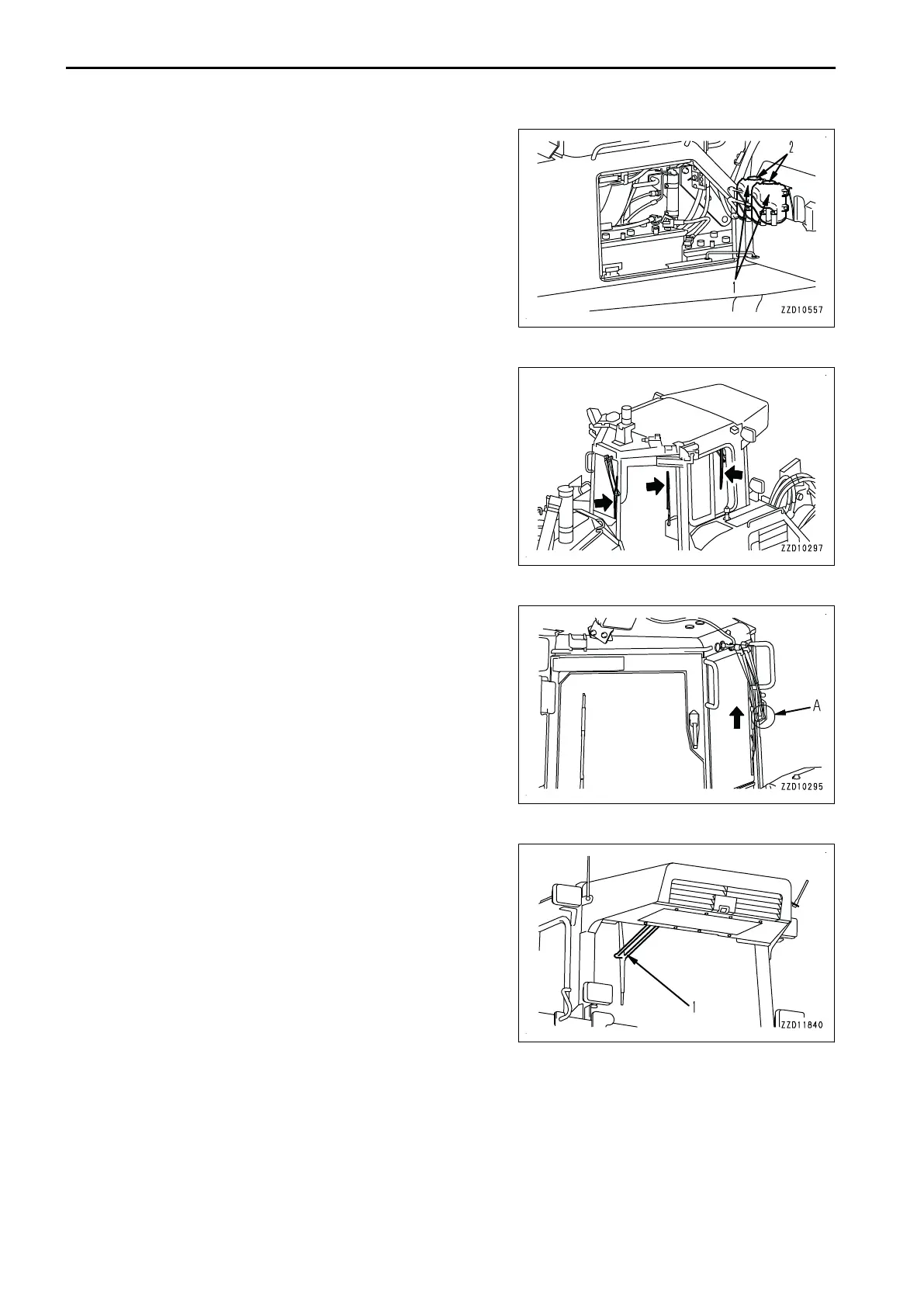

1.
Open the inspection cover on the side of the battery cover
at the rear left of the machine.
2.
Check the fluid level in window washer tank (1).
3.
If the fluid level is low, remove cap (2) and add window
washer fluid for automobile through the filler port.
Be careful not to let dirt or dust get in when adding fluid.
METHOD FOR REPLACING WIPER BLADE
If the blade is damaged, the windshield is wiped unevenly. In
this case, replace the blade.
METHOD FOR REPLACING FRONT WIPER
1.
The blade is hooked on portion (A). Move it in the direction
of the arrow.
Remove the blade.
2.
Install a new blade by hooking it on portion (A).
Check that the it is hooked securely.
METHOD FOR REPLACING REAR WIPER
1.
Remove E-ring (1).
You can remove the blade.
2.
Install a new blade.
Install securely by using E-ring (1).
MAINTENANCE PROCEDURE MAINTENANCE
4-38
