METHOD FOR REPLACING FUEL PREFILTER CARTRIDGE
WARNING
• After the engine stops, all parts are still very hot, so do not replace the filter immediately. Wait until
all of parts cool down before starting the work.
• High pressure is generated inside the engine fuel piping system when the engine is running.
When replacing the filter, wait for at least 30 seconds after stopping the engine to let the internal
pressure go down before replacing the filter.
• Do not bring any open flame close.
NOTICE
• Komatsu genuine fuel filter cartridges use a special filter that has highly efficient filtering ability.
When replacing parts, Komatsu recommends using Komatsu genuine parts.
• The common rail fuel injection system used on this machine consists of more precise parts than
those in the conventional injection pump and nozzles. If any cartridge other than a Komatsu genu-
ine filter cartridge is used, dust or dirt may get in and cause problems with the injection system.
Never use a substitute.
• When performing the inspection or maintenance of the fuel system, pay more attention than normal
to the entry of dirt. If dirt sticks to any part, use fuel to wash it off completely.
Prepare a container to receive drained fuel.
Prepare a filter wrench

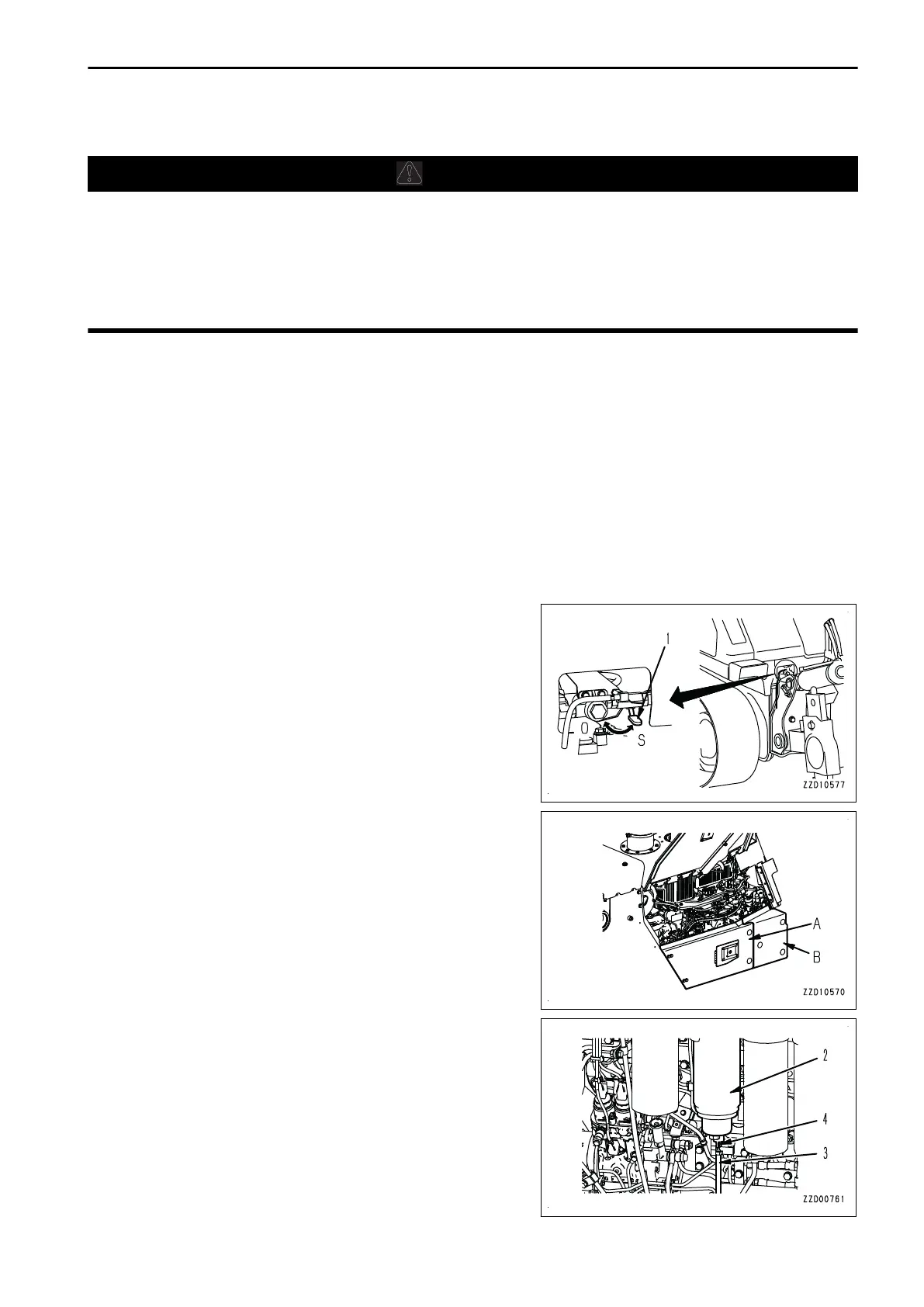

1.
Turn valve (1) at the bottom of the fuel tank to CLOSE po-
sition (S).
2.
Open the engine side cover on the left side of the ma-
chine.
3.
Remove mudguards (A) and (B) on the front side.
4.
Place a container to receive the fuel under filter cartridge
(2).
5.
Remove hose (3).
6.
Turn filter cartridge (2) counterclockwise by using the filter
wrench, and remove it.
7.
Make sure that drain valve (4), the new filter cartridge is
tightened securely.
Tightening torque: 
0.2 to 0.45 Nm {0.02 to 0.046 kgm}
MAINTENANCE MAINTENANCE PROCEDURE
4-53
