EXPLANATION OF COMPONENTS
The following is an explanation of devices necessary to operate the machine.
To perform suitable operations correctly and safely, it is important to completely understand methods of operat-
ing the equipment, and the meanings of the displays.
EXPLANATION OF MACHINE MONITOR EQUIPMENT

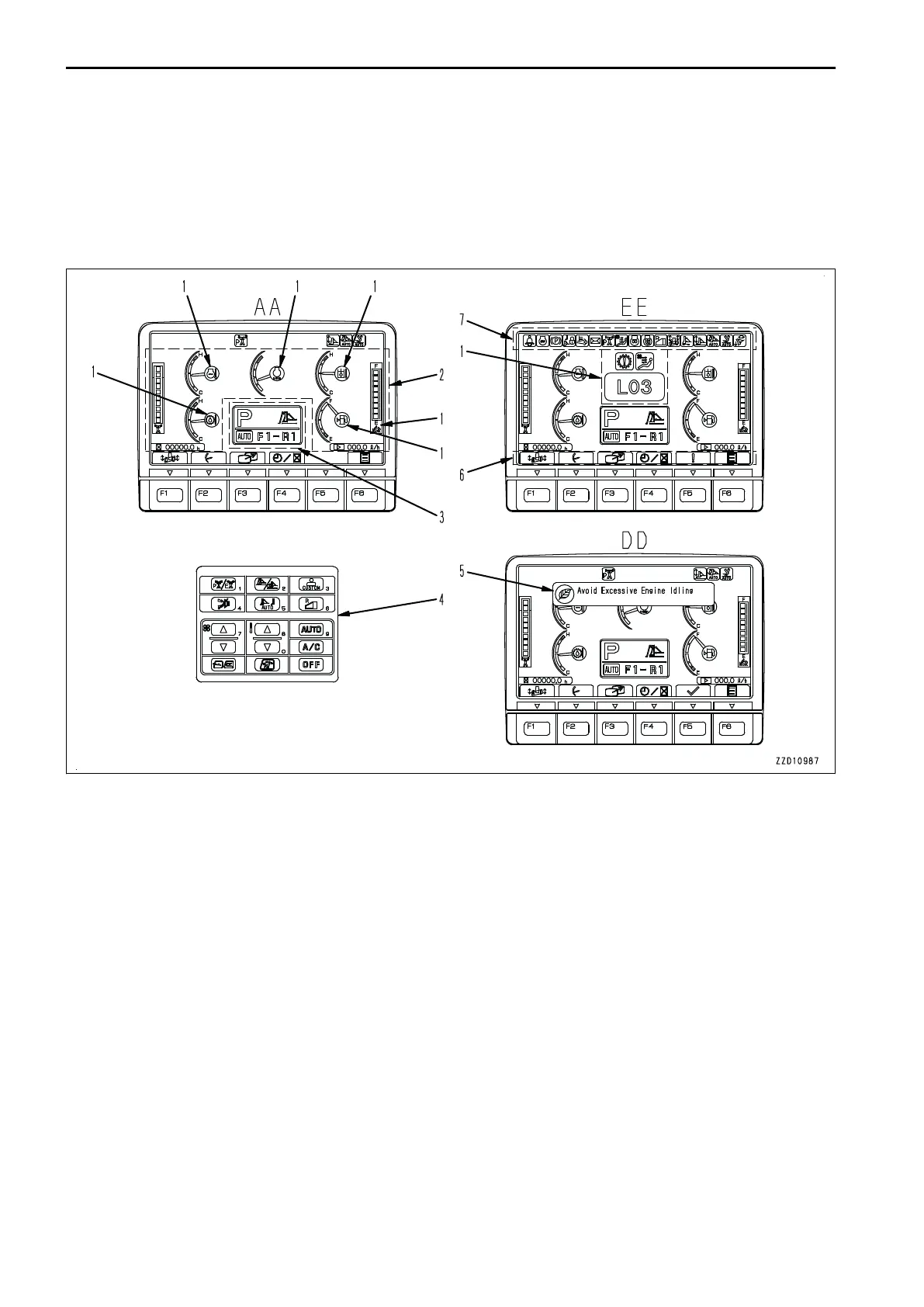

AA: Standard screen, EE: Warning or Error screen, DD: Guidance screen
(1) Warning display
(2) Meter display
(3) Gear speed display part
(4) Monitor switch area
(5) Guidance display
(6) Guidance icon display
(7) Pilot display
REMARK
• For the user menu used for setting various items of the machine on the machine monitor, see “USER
MENU DISPLAY SWITCH (3-61)”.
• Intensity or color of the objects may change because of the automatic adjustment function of the camera.
• If environmental temperature of the machine monitor is high, brightness may be automatically reduced to
protect the liquid crystal. However, it is not abnormal.
EXPLANATION OF COMPONENTS OPERATION
3-6
