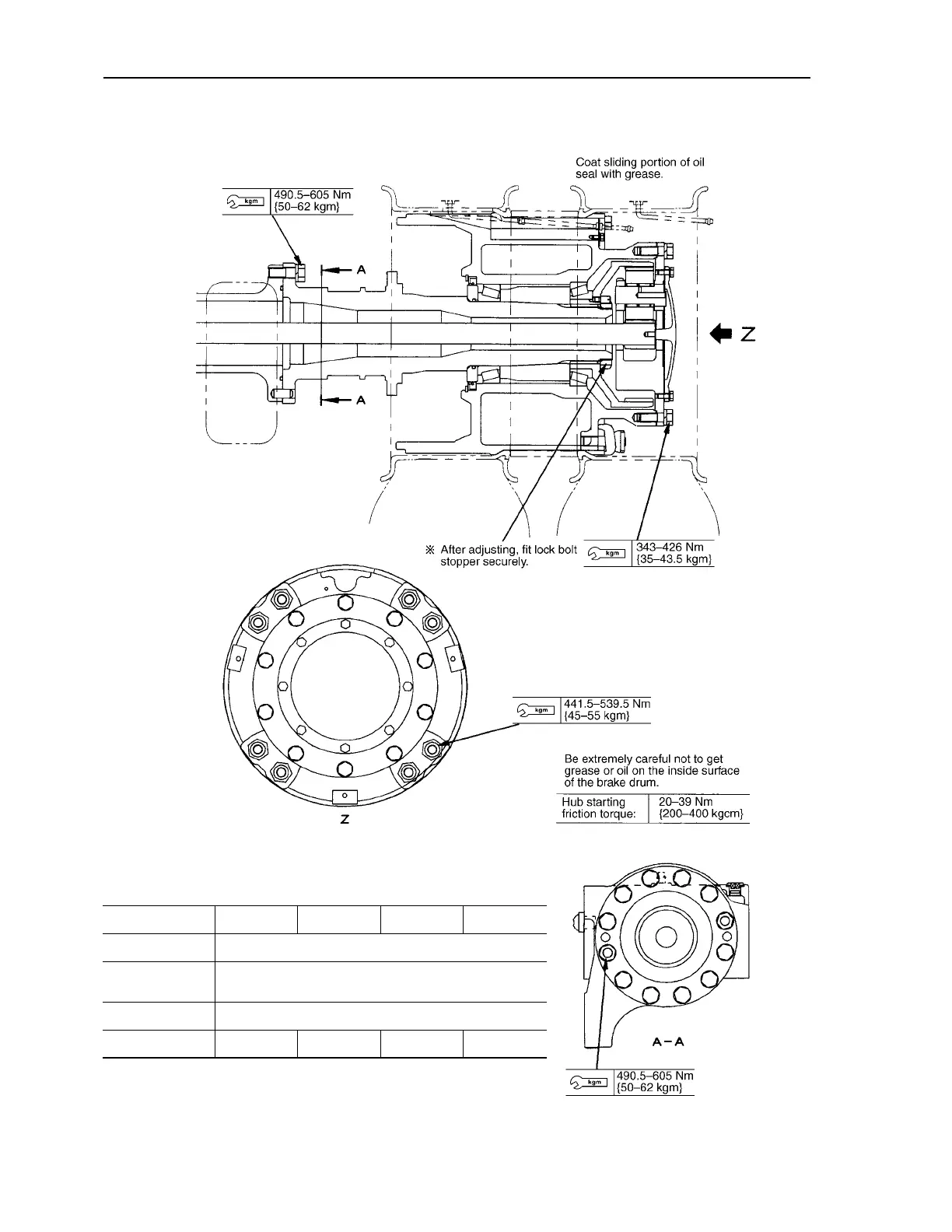

DRIVE AXLE DISASSEMBLY AND ASSEMBLY
40-32 EX20 Series
DRIVE AXLE
FD100 FD115 FD135/150E FD160E
Type Fixed single shaft full–floating type
Reduction gear
type
Planetary gear
Reduction ratio 5.4
Tread 1,695 1,875 1,766 1,771
