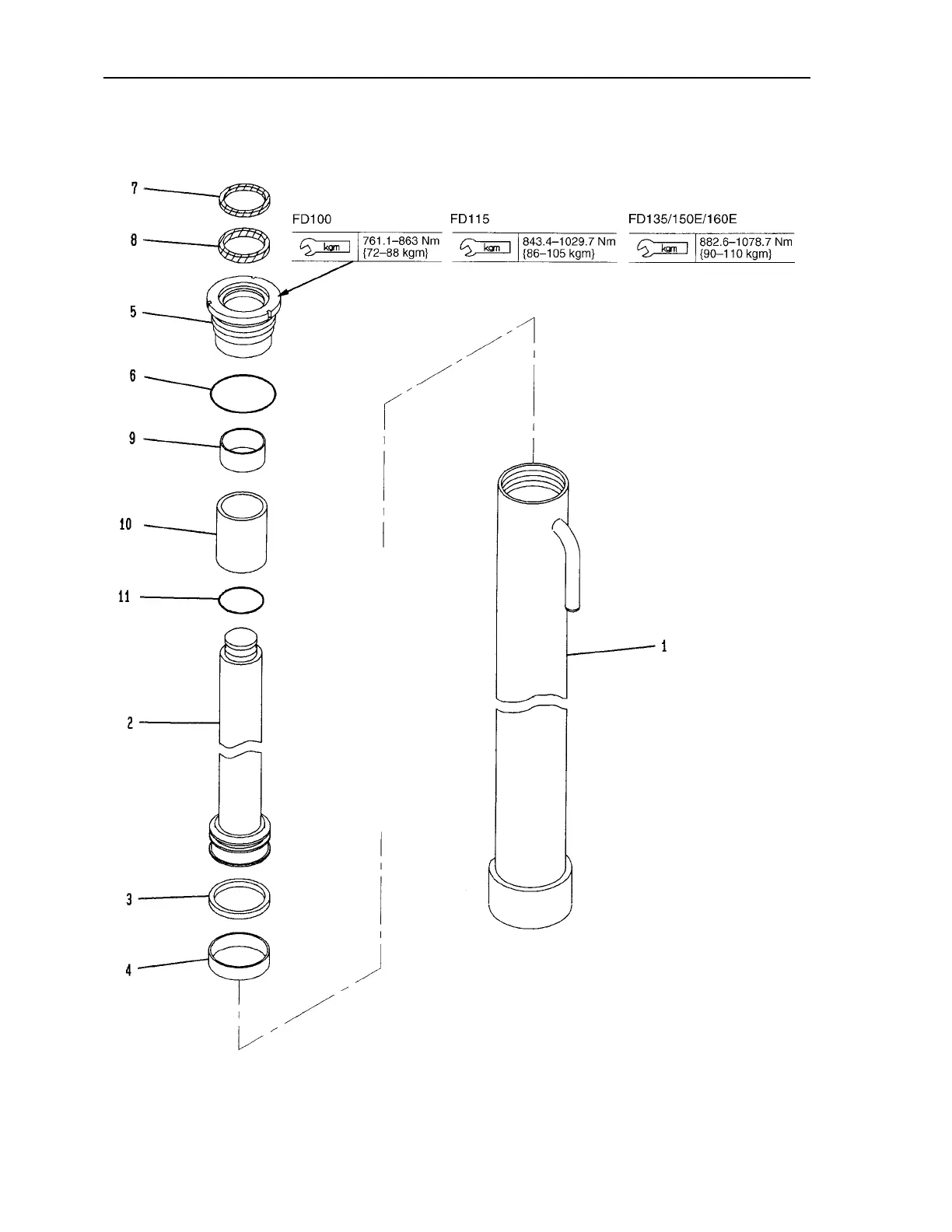

LIFT CYLINDER DISASSEMBLY AND ASSEMBLY
40-62 EX20 Series
LIFT CYLINDER
1. Cylinder
2. Piston rod
3. Piston ring
4. Wear ring
5. Cylinder head
6. O-ring
7. Dust seal
8. Rod packing
9. Wear ring
10. Collar
11. O-ring
