STRUCTURE AND FUNCTION
EX20 Series 60-13

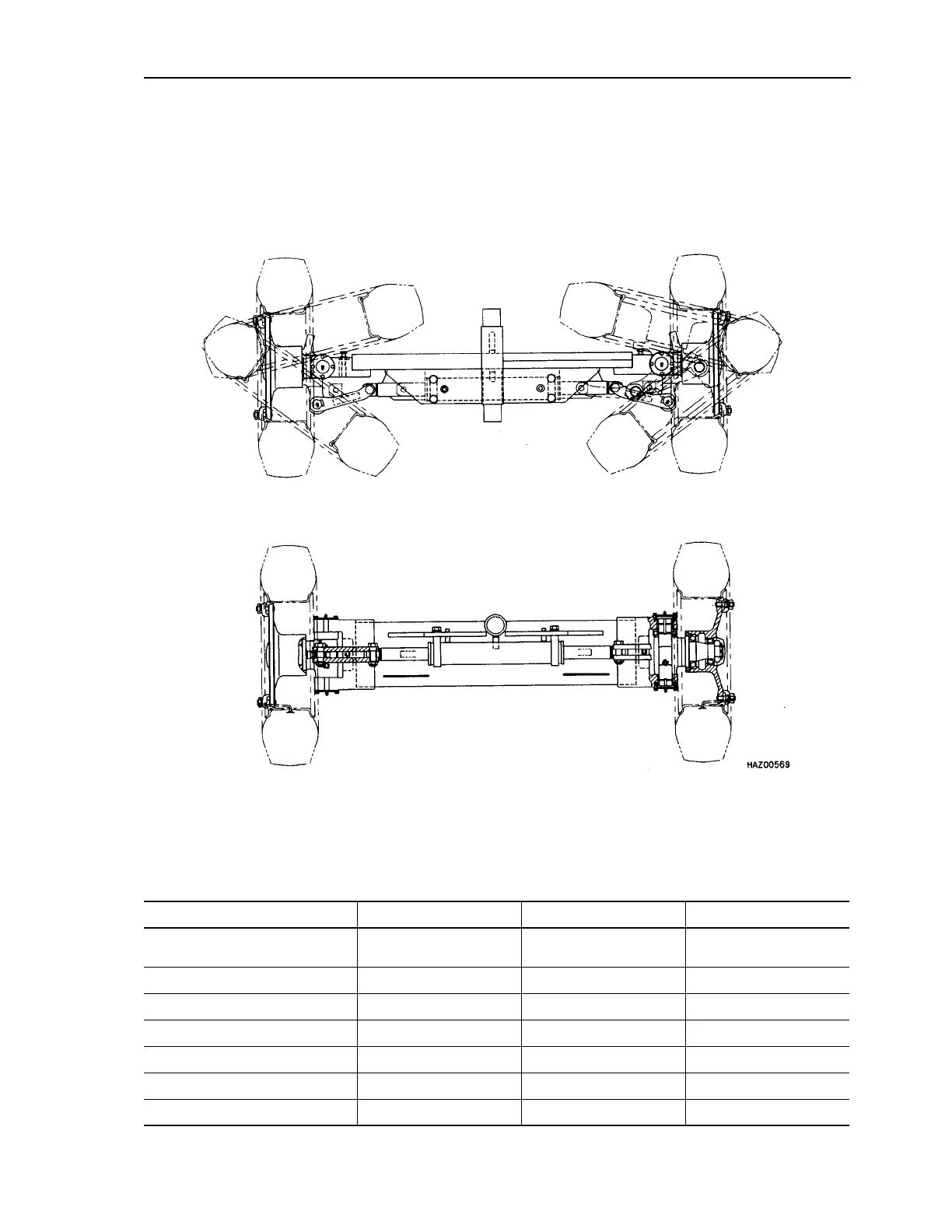

STEERING AXLE
This has a thick steel plate welded integrated structure with a built–in 2–rod type power steering cylinder.
Specifications
Item FD100 FD115–150E FD160E
Type
Center pin support,
single–shaft type
Center pin support,
single–shaft type
Center pin support,
single–shaft type
Structure of knuckle Elliot type Elliot type Elliot type
Alignment None None None
Swing angle 5° 5° 5°
Tire turning angle (inside) 76° ± 30° 76° ± 30° 76° ± 30°
Tire turning angle (outside) 53° 53° 53°
Tread 1900 mm 1890 mm 1870 mm
STEERING AXLE
