STRUCTURE AND FUNCTION
60-10 EX20 Series
METER PANEL
Integrated meter panel with safety checkers

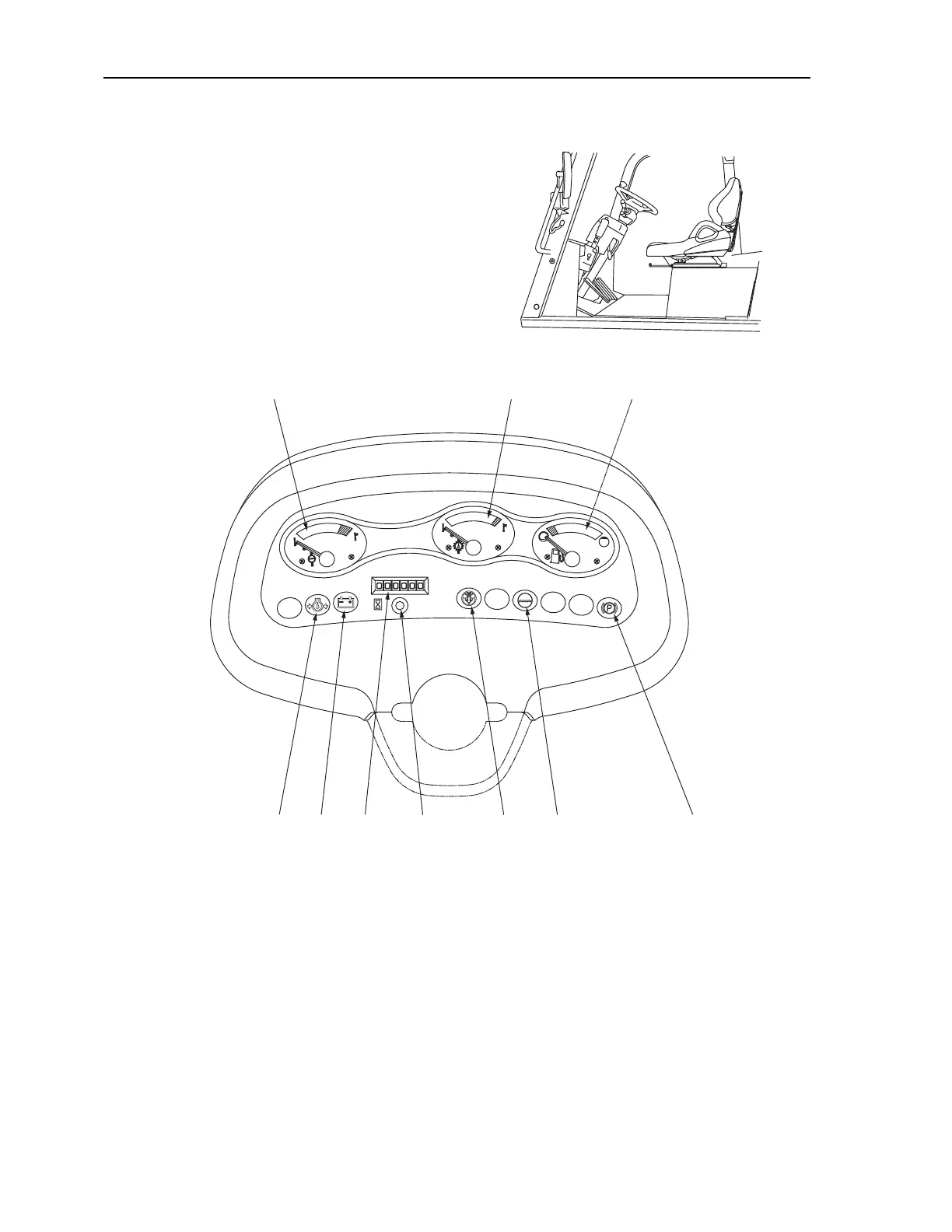

The integrated meter panel with safety checkers informs
the operator of vehicle status that is monitored by many
sensors installed in the units of the vehicle and then
immediately processed for display.
1. Water temperature gauge
2. Torque converter oil temperature gauge
3. Fuel gauge
4. Parking brake warning lamp
5. Radiator coolant level warning lamp
6. Air-cleaner clogging warning lamp
7. Operation lamp
8. Hourmeter
9. Battery charge warning lamp
10. Engine oil pressure warning lamp
123
10 9 8 7 6 5
4
METER PANEL
To Next Page
