TILT CYLINDER DISASSEMBLY AND ASSEMBLY
40-64 EX20 Series

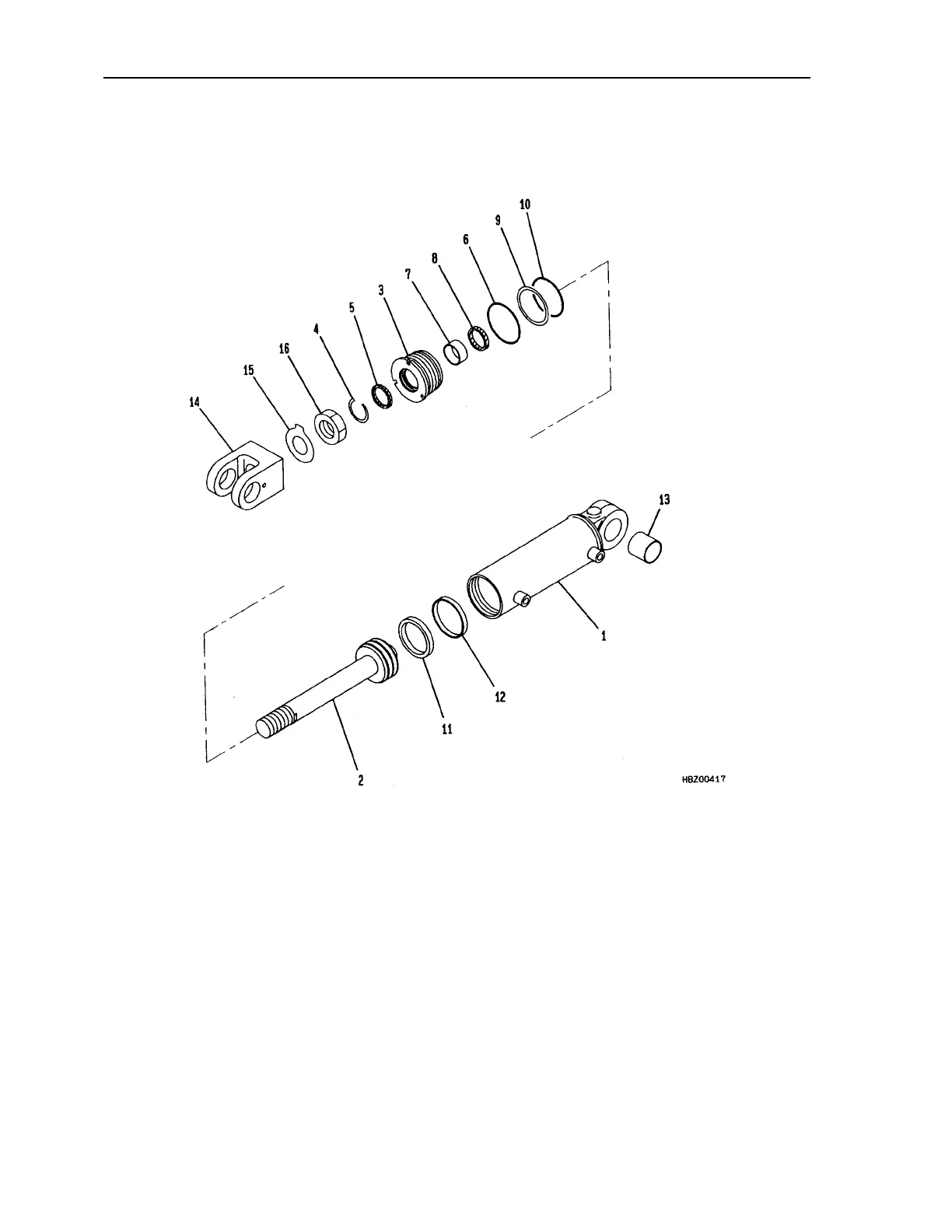

TILT CYLINDER
1. Cylinder 9. Backup ring
2. Piston rod 10. O–ring
3. Cylinder head 11. Piston ring
4. Snap ring 12. Wear ring
5. Dust seal 13. Bushing
6. O–ring 14. Rod head
7. Bushing 15. Lock washer
8. Rod packing 16. Nut
