STRUCTURE AND FUNCTION
60-12 EX20 Series

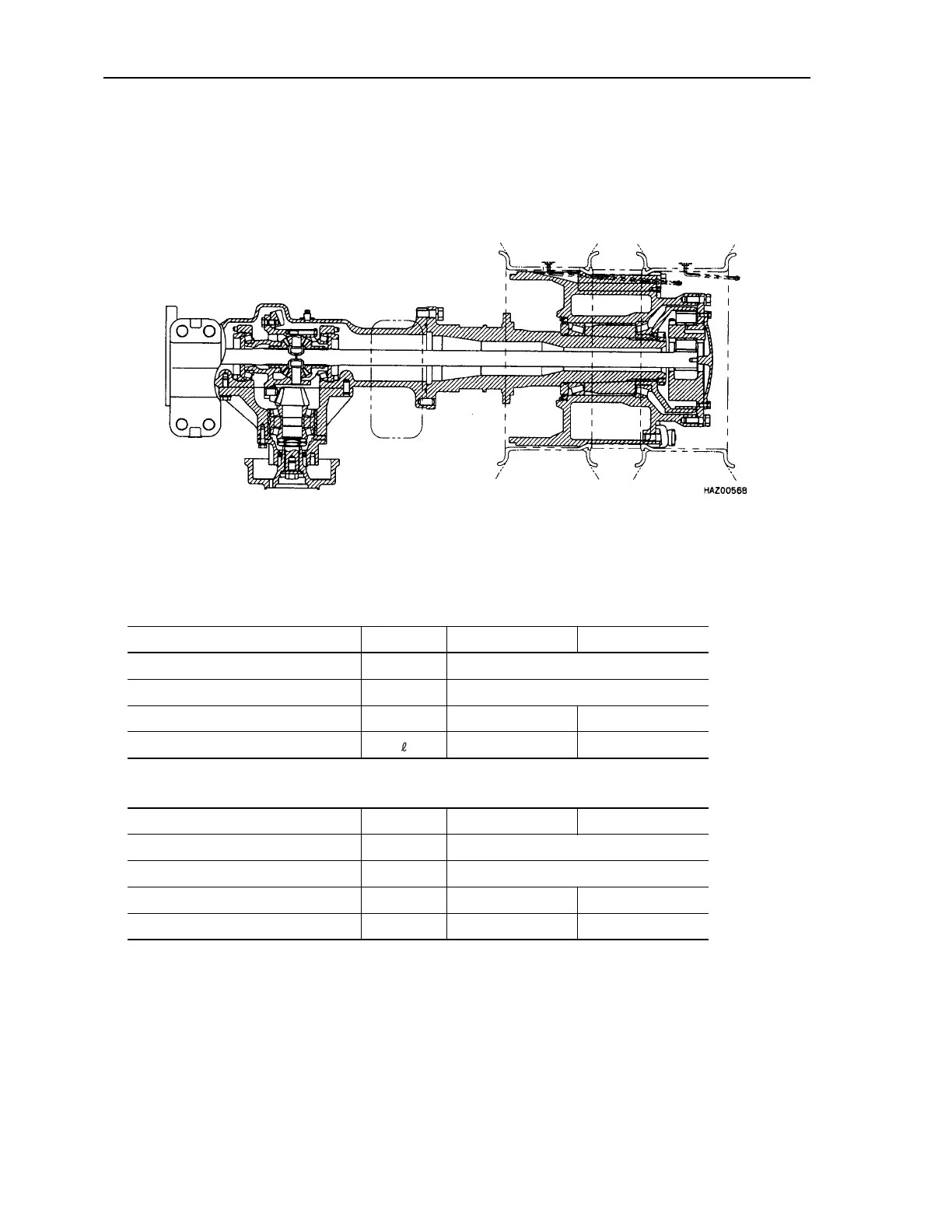

DRIVE AXLE
1. Differential
2. Final drive
Item Unit FD100/115 FD135–160E
Reduction gear type – Hypoid bevel gear
Reduction ratio – 4,375
Outside diameter of torque shaft mm 42 42
Oil capacity (including final drive) 20 20
Item Unit FD100/115 FD135–160E
Type – Fixed single shaft full–floating type
Reduction gear type – Planetary gear type
Reduction ratio – 5.4 5.4
Tread mm 1700 1770
DRIVE AXLE
