TESTING AND ADJUSTING
EX20 Series 20-11

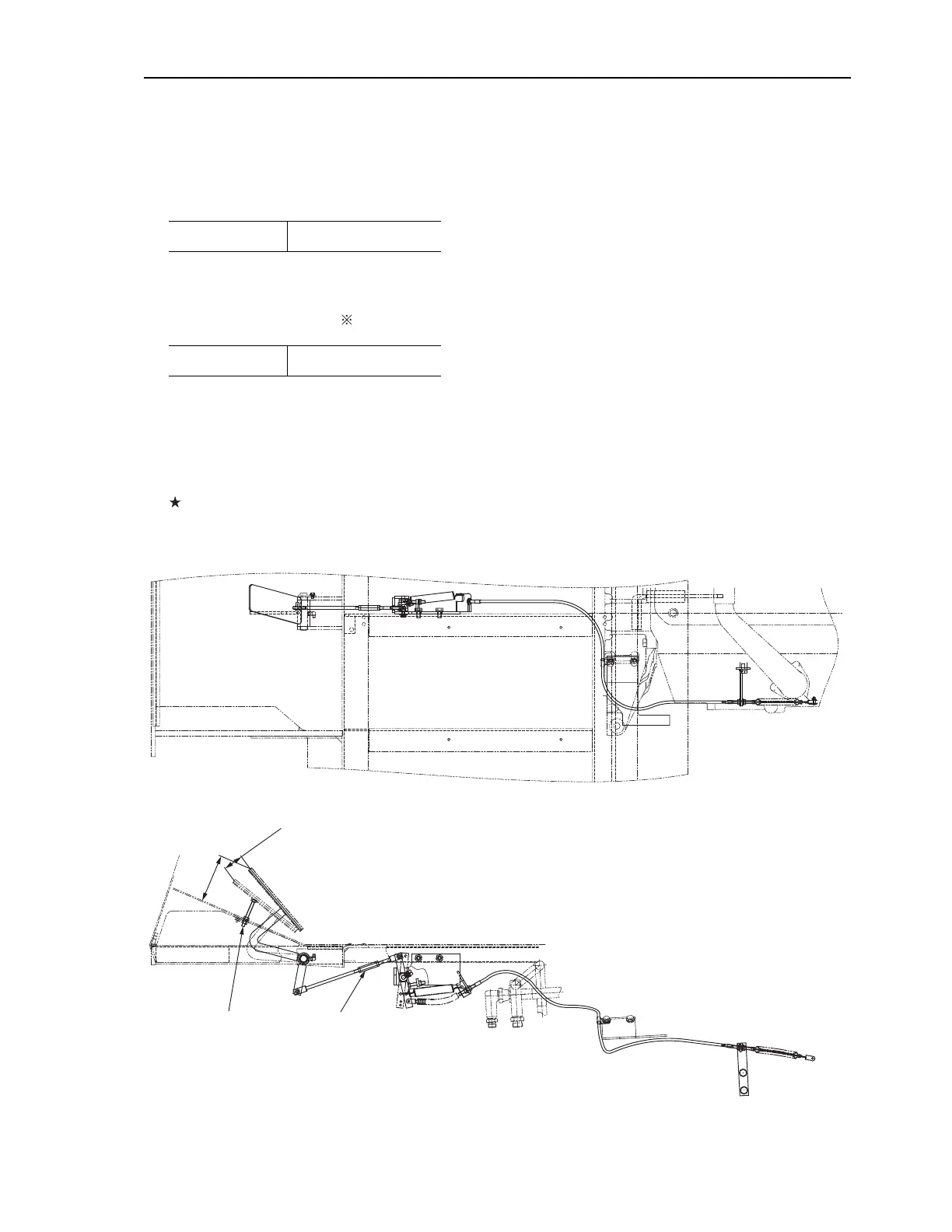

ADJUSTING ACCELEATOR PEDAL
1. Pedal height (from floor plate)
Adjust with turnbuckle (1).
2. Stroke
Adjust with stopper bolt (2). ( : 61 mm (2.4 in))
3. Lever on engine side
After installing the link, depress the pedal to the
stroke end. At this time, adjust stopper bolt (2) so
that the lever on the engine side will open fully.
Adjust the idling speed of the engine with turn-
buckle (1).
Pedal height h 137 mm (5.4 in)
Stroke 57 mm (2.2 in)
Stroke
h
21
ADJUSTING ACCELEATOR PEDAL
