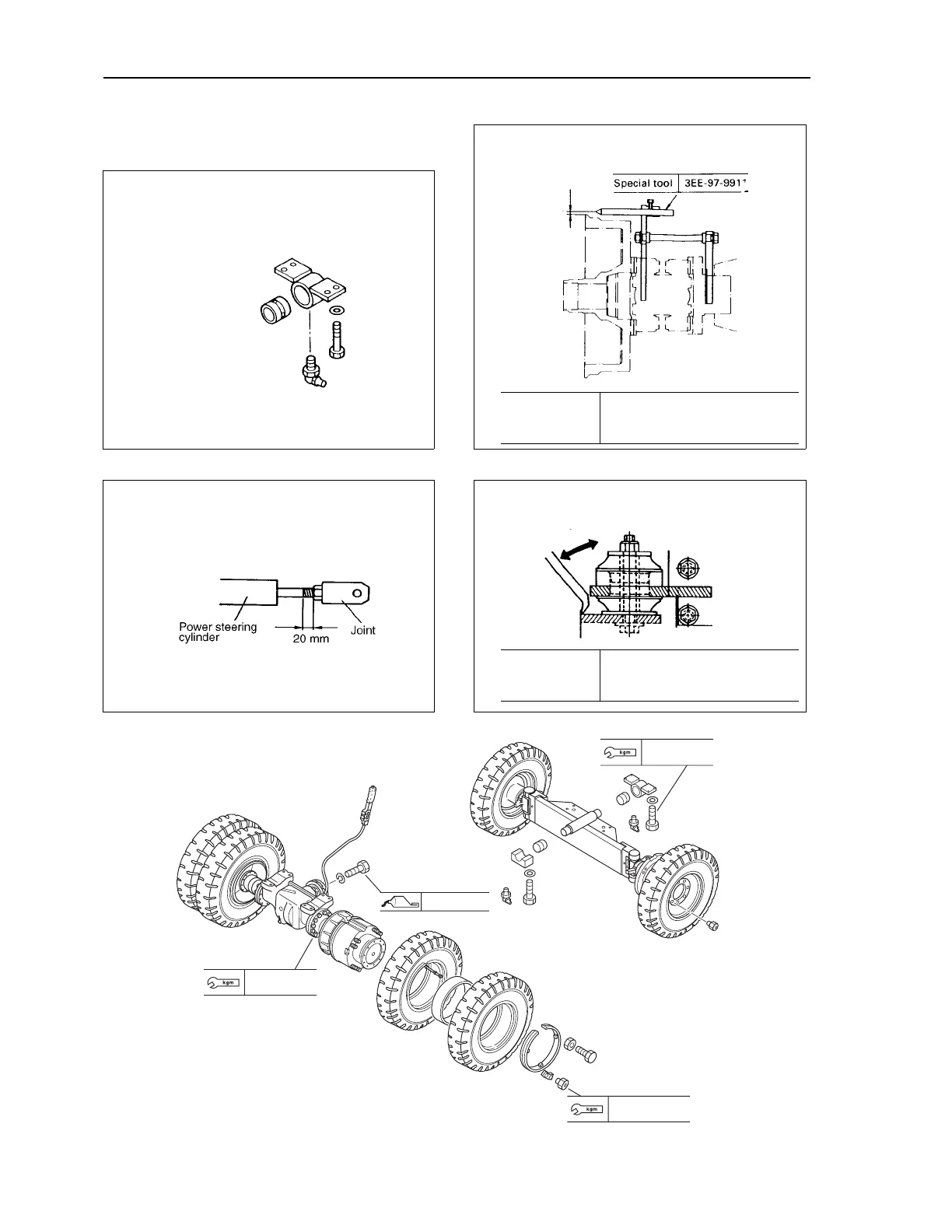

POWER TRAIN REMOVAL AND INSTALLATION
30-10 EX20 Series
POWER TRAIN
(1) Rear axle support busing
Direct oil hole
of bushing up.
(2) Power steering cylinder
(3) Centering of drive shaft
(4) Centering of engine mount
Deviation
5 mm max. (in both vertical and
lateral directions)
Deviation
5 mm max. (in both vertical and
lateral directions)
490–608 Nm
{50–62 kgm}
441–539.5 Nm
{45–55 kgm}
490–605 Nm
{50–62 kgm}
Loctite #271
