DISASSEMBLY AND ASSEMBLY POWER STEERING CYLINDER
EX20 Series 40-71

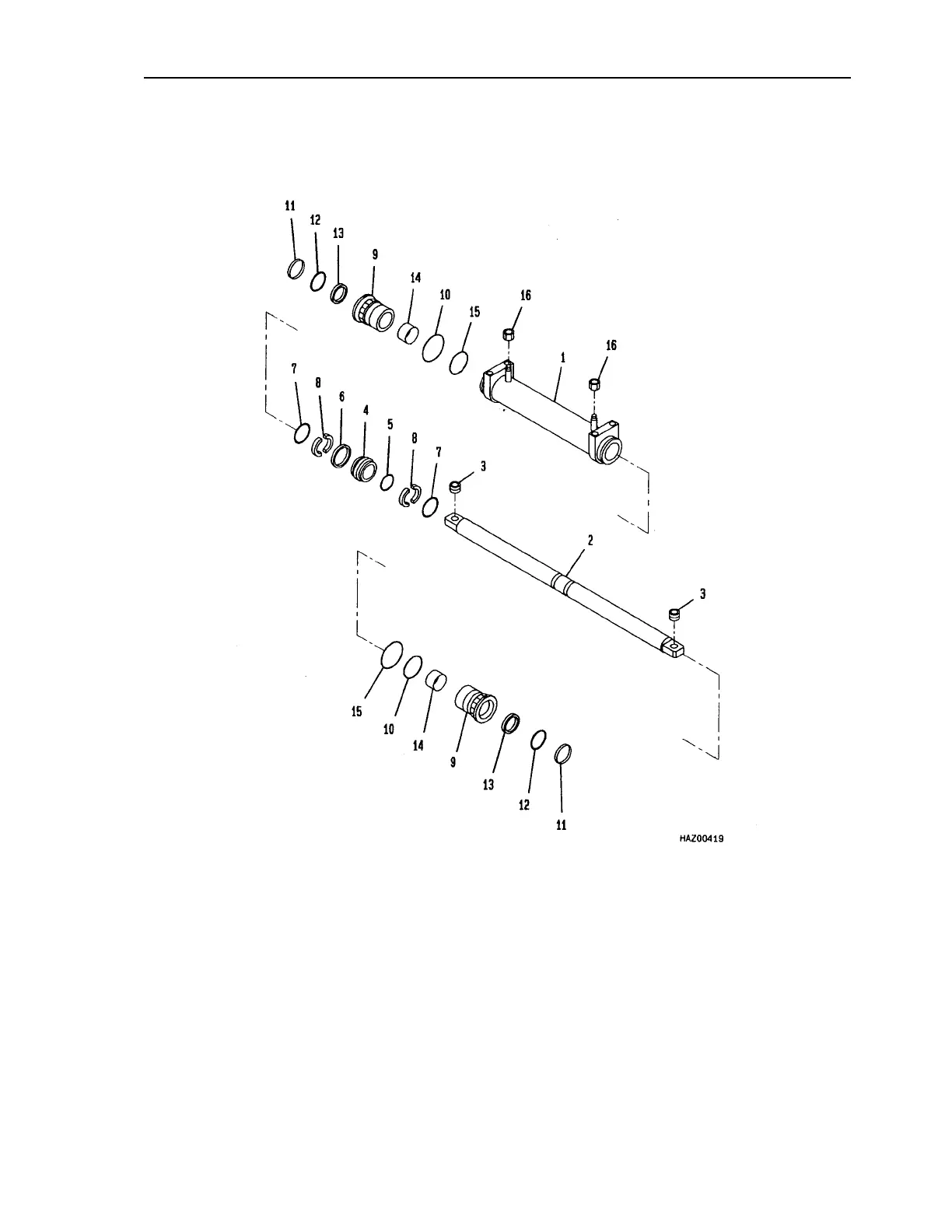

POWER STEERING CYLINDER
1. Cylinder 9. Rod cover
2. Piston rod 10. O–ring
3. Bushing 11. Retainer ring
4. Piston 12. Dust wiper
5. O–ring 13. U–packing
6. Stopper seal 14. Bushing
7. Retainer ring 15. O–ring
8. Ring 16. Dust cap
