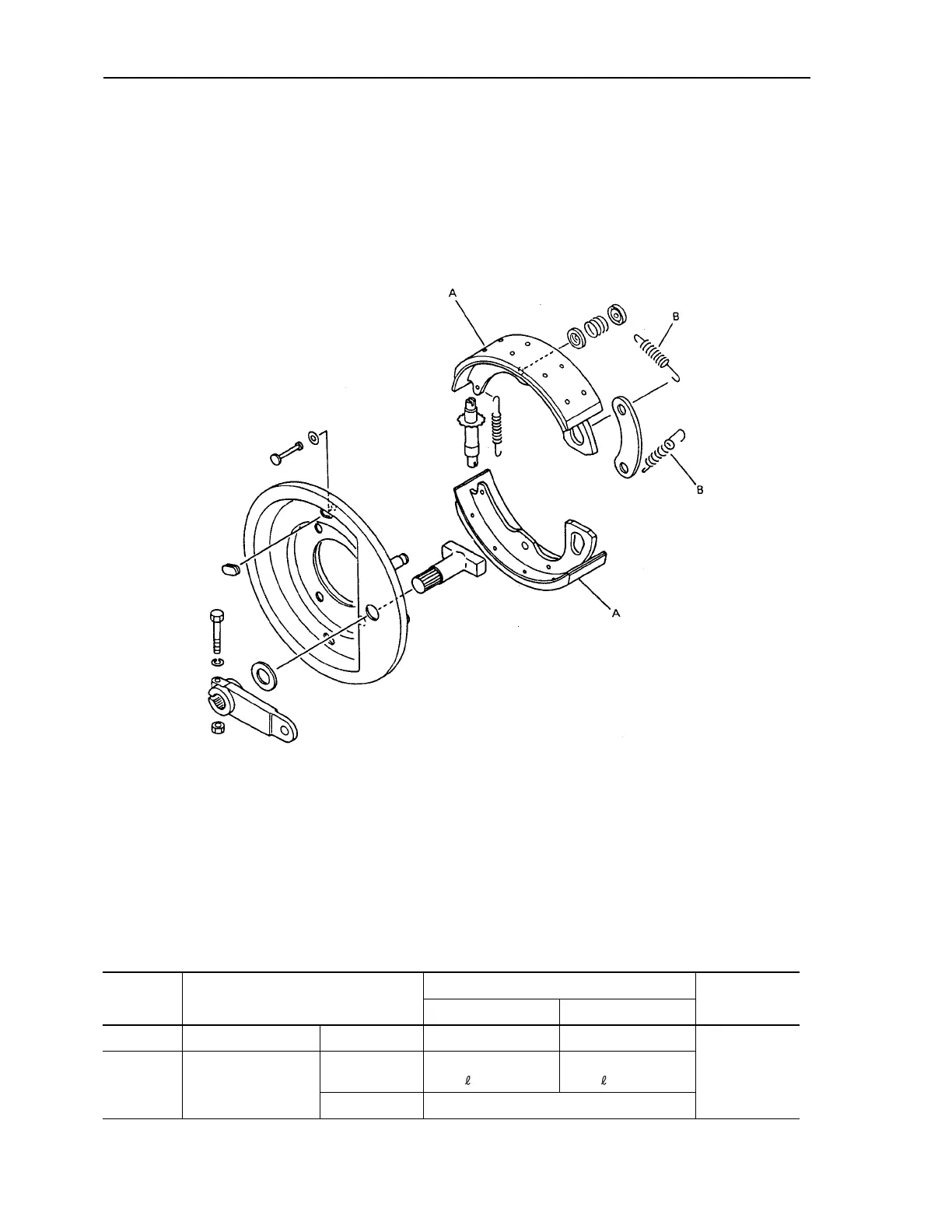

PARKING BRAKE DISASSEMBLY AND ASSEMBLY
40-44 EX20 Series
PARKING BRAKE
Symbol Inspection item
Judgement standard
Remedy
Standard size (mm) Repair limit (mm)
A Lining Thickness 5.5 3.3
Replace
B Shoe return spring
Strength
152 N {15.5 kg}
( = 50 mm)
137 N {14 kg}
( = 50 mm)
Free length 54.7 mm
