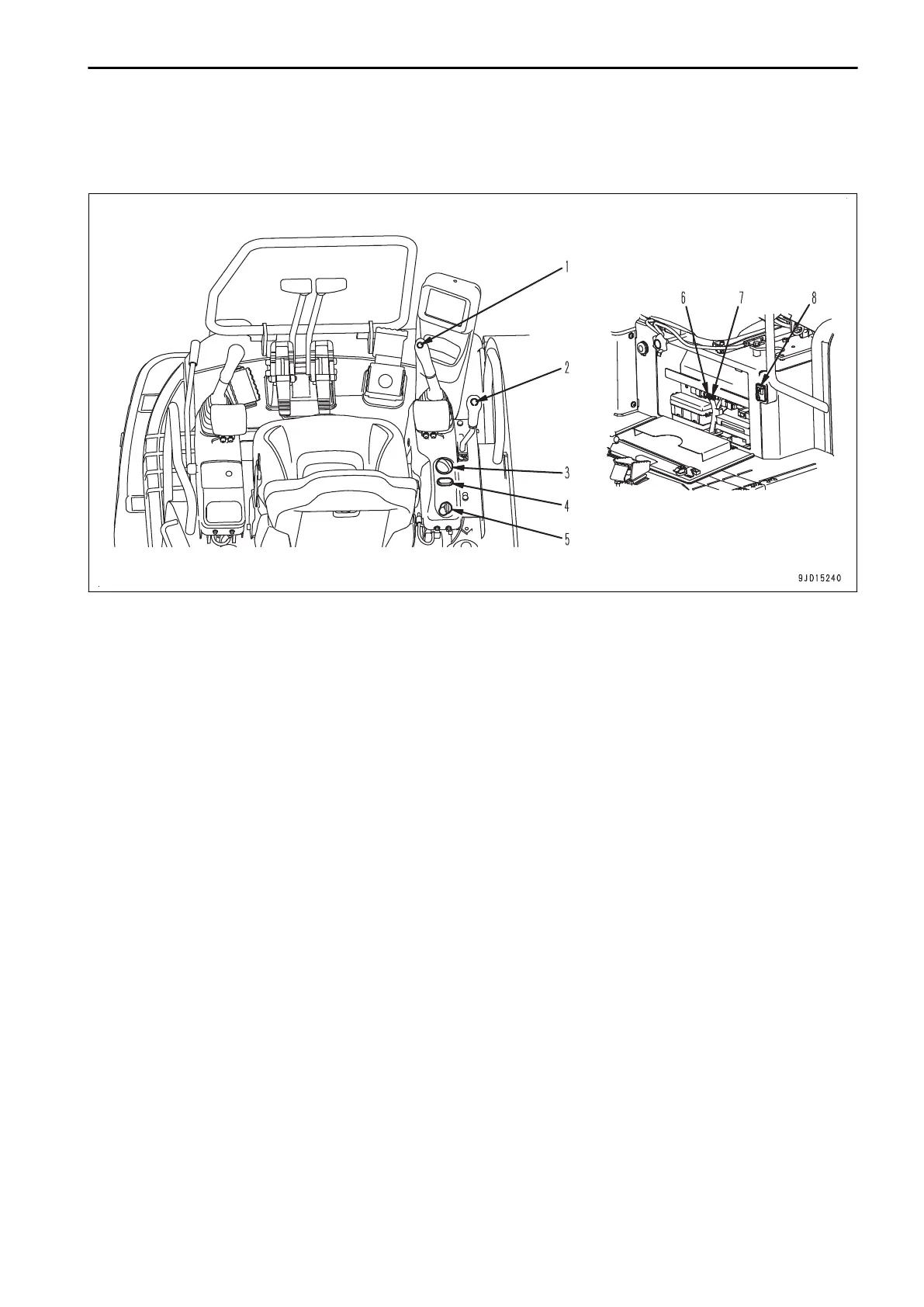

SWITCHES
SWITCHES: CANOPY SPEC
(1) Horn switch
(2) T
ravel speed selector switch
(3) Fuel control dial
(4) Lamp switch
(5) Starting switch
(6) Pump secondary drive switch
(7) Lock lever automatic lock cancel switch
(8) Engine shutdown secondary switch
OPERA
TION
EXPLANA
TION OF COMPONENTS
3-77
137
139
