METHOD FOR STEERING MACHINE
METHOD FOR STEERING (CHANGE THE DIRECTION) MACHINE
WARNING
Before operating the travel levers or travel pedals, check the direction that the track frame is facing (the
position of the sprocket).
When
the sprocket is at the front, the directions of operations of the travel levers or travel pedals are
the opposite to the direction of movement of the machine.
REMARK
When
turning while traveling at high speed, if the load is large, the automatic travel mode change function ac-
tuates and the travel mode automatically turns to Lo and travel speed becomes slow.
When the load decreases, the travel mode turns to Hi again.

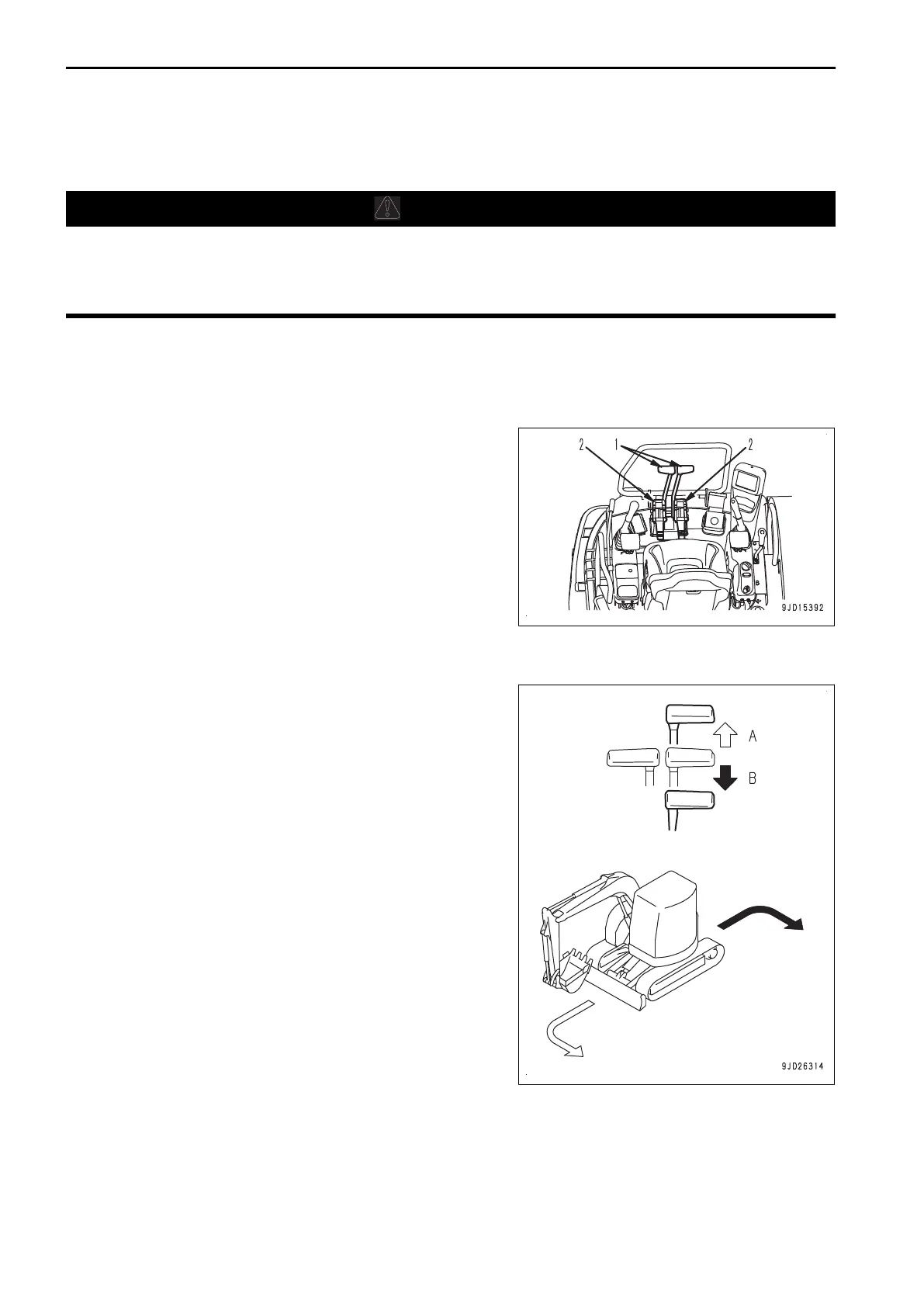

Use 2 travel levers (1) or travel pedals (2) to change direction
to travel.
Avoid sudden changes of direction to travel as much as possi-
ble. Especially when performing counter-rotation turn (spin
turn), stop the machine before turning.
OPERATION TO CHANGE DIRECTION OF STOPPED MACHINE
When turning left
(A) Left turn in forward
Push the right travel lever forward.
The machine turns left in forward.
(B) Left turn in reverse
Pull the right travel lever backward.
The machine turns left in reverse.
REMARK
When turning right, read the preceding procedure by replacing
the word "left" with "right", then operate the left travel lever.
MACHINE OPERATIONS AND CONTROLS OPERATION
3-176
