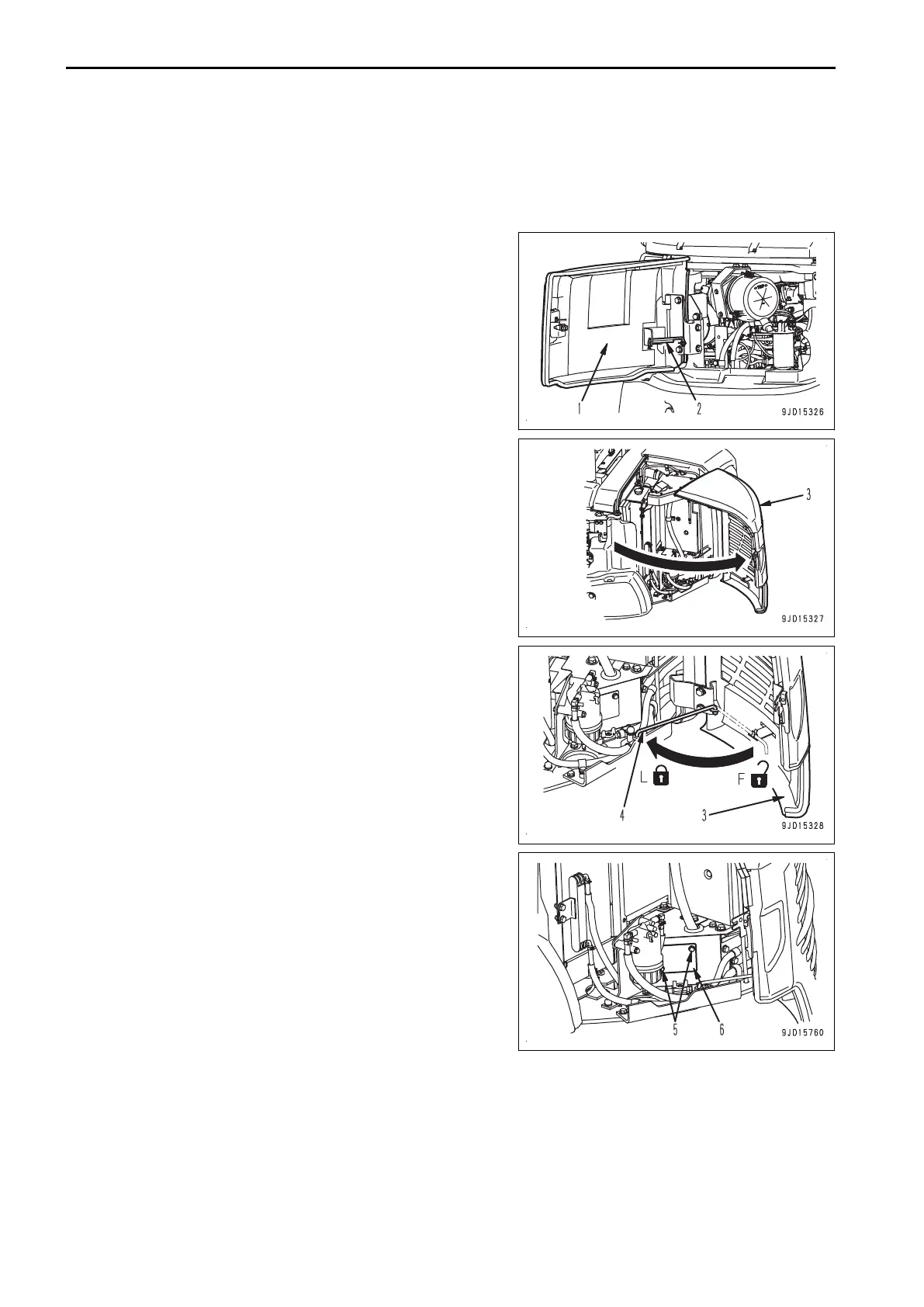

METHOD FOR LUBRICA
TING BOOM SWING CYLINDER FOOT PIN
Items to be prepared
•
Grease pump
•
Cloth
1.
Pull engine rear cover (1) toward you to open it.
Open
engine
rear
cover
(1)
fully
and
it
is
secured
by
rod
(2).
2.
Pull cooling cover (3) toward you to open it.
3.
T
urn
rod
(4)
to
LOCK
position
(L),
and
fix
cooling
cover
(3)
with the rod.
4.
Loosen bolts (5) and remove cover (6).
MAINTENANCE PROCEDURE
MAINTENANCE
4-54
362
364
