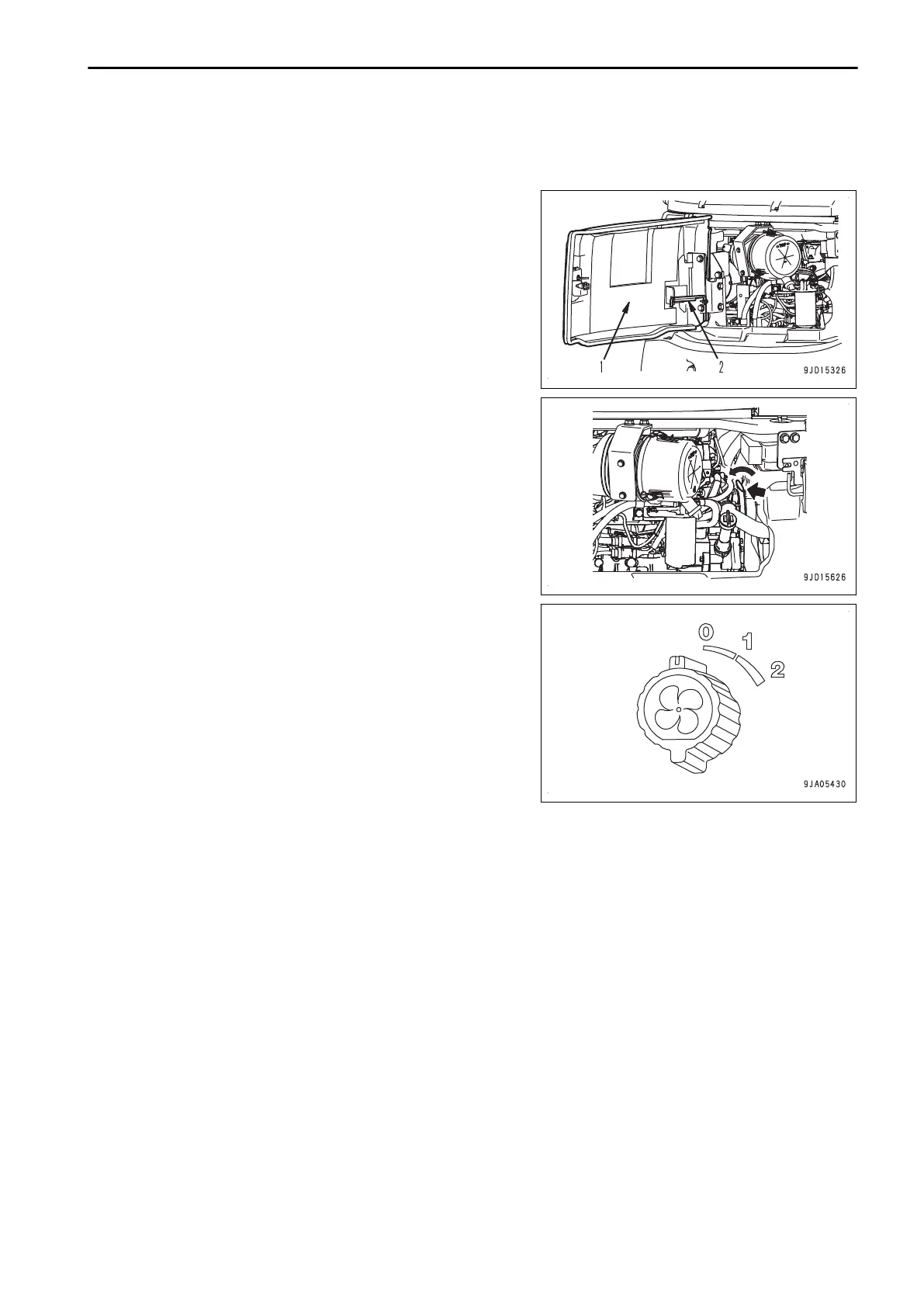

METHOD FOR USING HEA
TER
If the ambient temperature is low
, use the heater
.
1.
Pull the engine rear cover (1) backward to open it.
Open
the
engine
rear
cover
(1)
fully
and
it
is
secured
by
rod (2).
2.
T
urn
the
valve
attached
to
the
water
manifold
counter-
clockwise to open.
3.
Close the engine rear cover (1).
4.
T
urn the heater switch to adjust the air flow rate.
If
the
heater
is
not
used
for
a
long
time,
turn
the
valve
clockwise to close it.
A
TT
ACHMENTS AND OPTIONS
HANDLE HEA
TER
6-23
