CONTROL PATTERNS OTHER THAN STANDARD CON-
TROL
METHOD (FOR MACHINES EQUIPPED WITH OPER-
ATION PATTERN CHANGE-OVER VALVE)
WARNING
• When
operating the machine, check that the display of the control pattern card is matched to the
operation of the machine to prevent personal injury by malfunction.
If it does not match, replace it immediately with the correct control pattern card.
• When checking the movement of the machine, operate slowly while paying attention to the safety
around the machine.
• Stop the engine, and check that the lock lever is in LOCK position, and change the control pattern
of the machine.
NOTICE
The control pattern cards are replaceable.
If
the control pattern is changed, replace the control pattern card with the one for the new control pat-
tern.

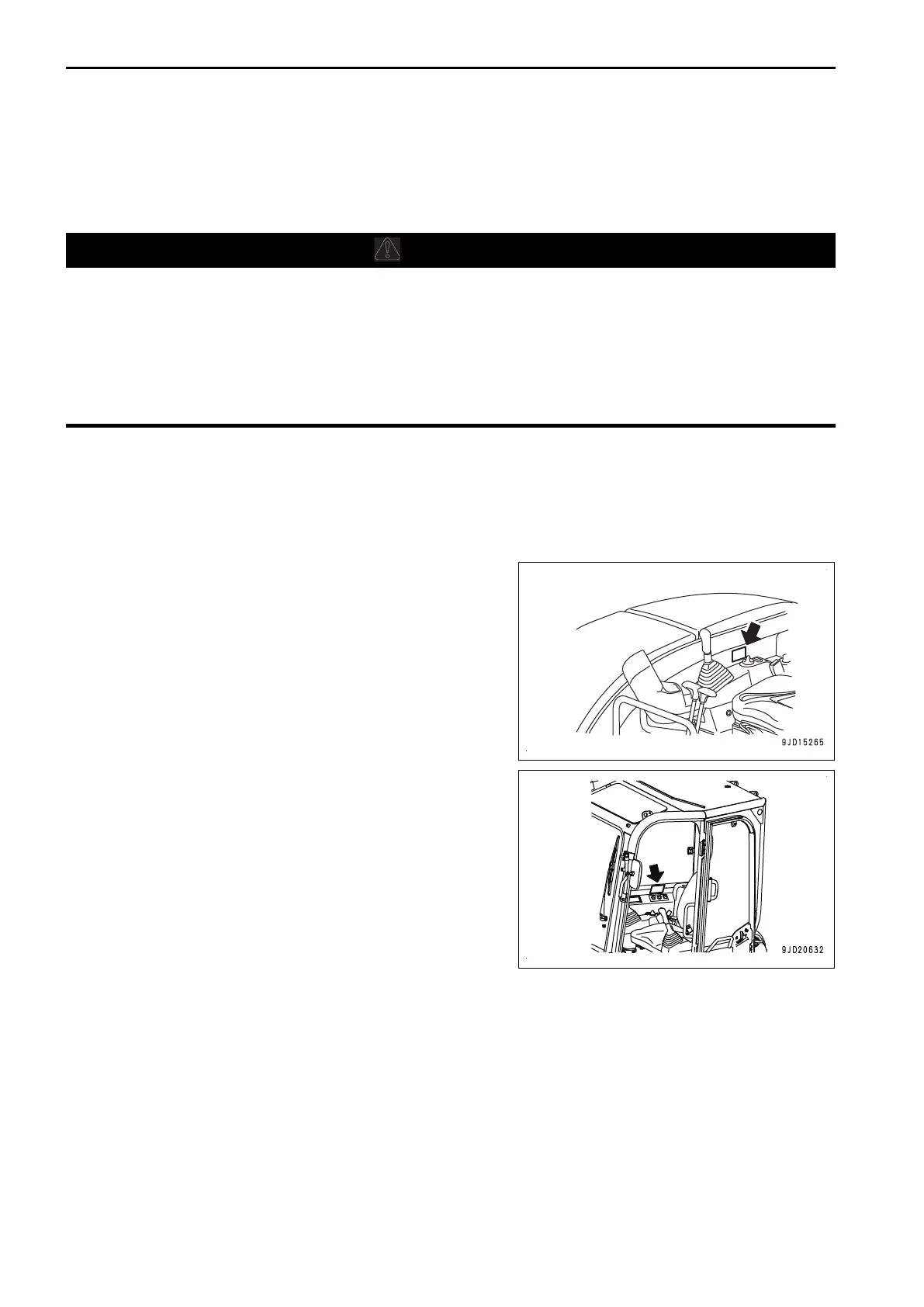

The control pattern card is located at the position shown in the figure.
Machine with canopy specification
The control pattern card is located on the right side of the oper-
ator's seat.
Machine with cab specification
The control pattern card is located on the right side of the oper-
ator's seat.
The preferable control pattern can be selected for the work equipment control lever.
CONTROL PATTERNS OTHER THAN STANDARD CONTROL METH-
OD (FOR MACHINES EQUIPPED WITH OPERA
TION PATTERN
CHANGE-OVER VALVE) ATTACHMENTS AND OPTIONS
6-30
To Next Page
