EXPLANATION OF COMPONENTS
The following is an explanation of devices necessary to operate the machine.
T
o perform suitable operations correctly and safely, it is important to completely understand methods of operat-
ing the equipment, and the meanings of the displays.

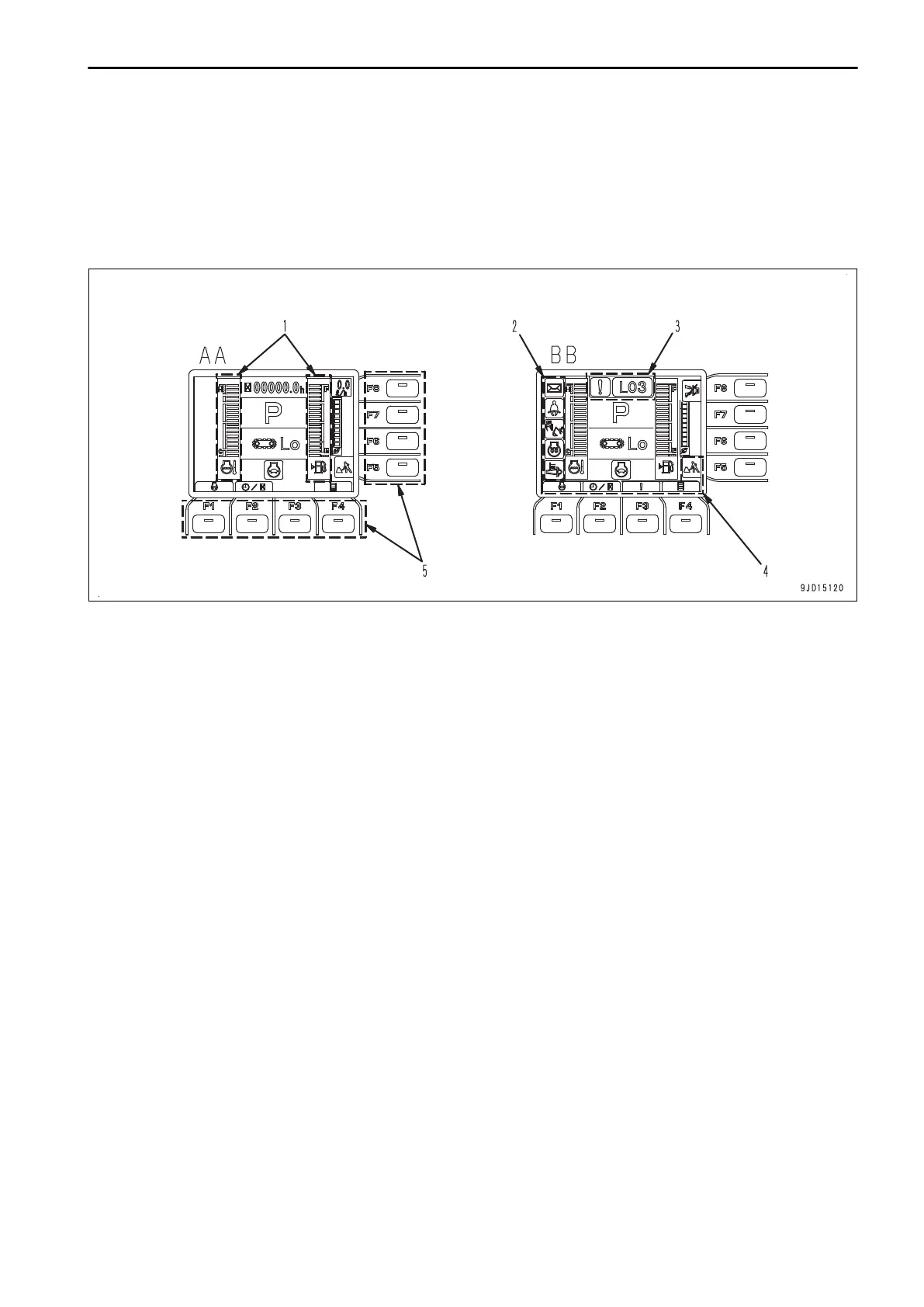

EXPLANATION OF MACHINE MONITOR EQUIPMENT
AA: Standard screen, BB: Warning or Error screen
(1) Gauge display
(2) Pilot display
(3) W
arning display
(4) Guidance icon display
(5) Function switches (“F1” to “F8”)
OPERATION EXPLANATION OF COMPONENTS
3-9
