Commissioning
26
Pos: 17.21 /Übersc hriften/Überschrif ten 3/A-E/D /Dreipunktb ock anhängen @ 73\mod_1307 685439395_78. docx @ 654 872 @ 3 @ 1
5.3.2 Attaching the Three-Point Block
Pos: 17.22 /BA/Sic herheit/6. Üb erarbeitete Warn hinweise/W arnung - Unbe absichtigtes A bkuppeln angeba ute @ 291\mod _1410427253 866_78.doc x @ 2294307 @ @ 1
Danger! - Inadvertent uncoupling of the machine during road travel or work.
Effect: Danger to life, serious injuries or serious damage to the machine.
• Use extreme caution when attaching or detaching devices to or from the tractor! The
accident prevention regulations must be complied with absolutely.
• The lower suspension arms on the tractor must be fixed in position
with the retaining chains or bars to prevent the machine from swivelling out during transport
or work. If the lower suspension arms (1) are equipped with catch hooks, the following
items must be taken into consideration:
Especially in the headland position, high forces develop in the lower suspension arm bolts (3)
that act upwards in the left-hand hook.
For this reason, the catch hooks must be in a flawless condition.
Additionally, the catch hooks must be secured in the provided locking hole (4) against
unwanted opening after the machine has been connected to the tractor.
Pos: 17.23 /BA/Ers tinbetriebna hme/Mähwerke AM Baureihe/An kuppeln Bild AM 203S/243S/ 283S/323S @ 6 9\mod_1305 038001898_78. docx @ 632 748 @ @ 1

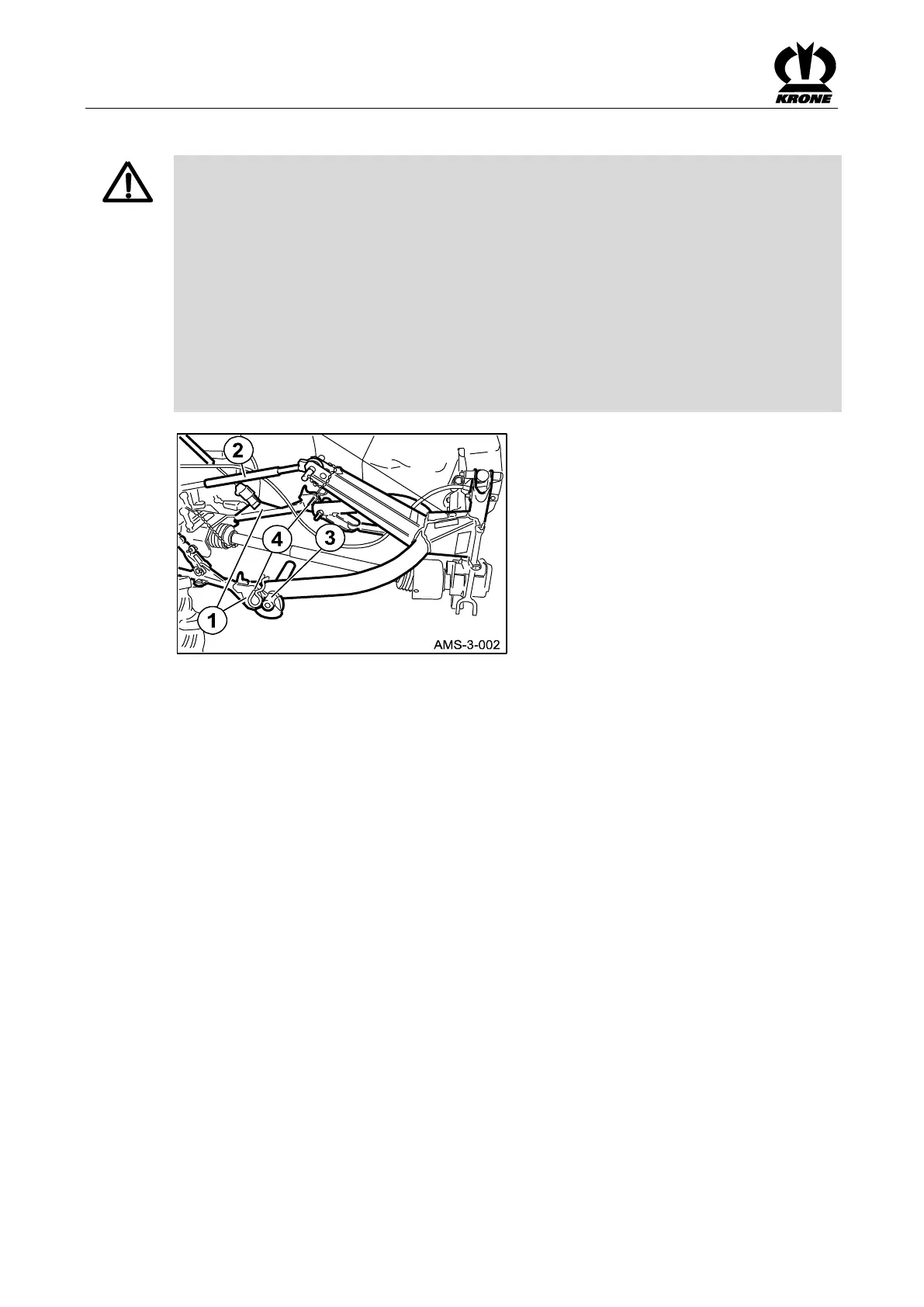

Fig.
Pos: 17.24 /BA/Ers tinbetriebna hme/Mähwerke AM Baureihe/An kuppeln Text AM 203S/243S/2 83S/323S @ 69 \mod_130 5038115635_ 78.docx @ 63277 6 @ @ 1
• Attach the machine onto the lower suspension arm (1) of the tractor
• Couple the top suspension arm (2) and secure it in place
Pos: 17.25 /La yout Module /---------------Seitenumbruch---------------- @ 0\mod_11961 75311226_0.doc x @ 4165 @ @ 1
